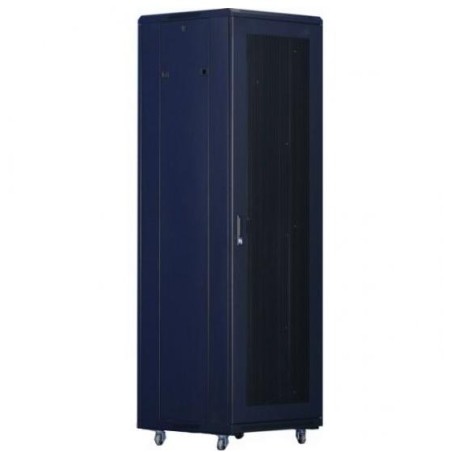

XtendLan HPER-47U-810-BLACK
19" rack, rack-mount, height 47U, width 800 mm, depth 1000 mm. Black color. Perforated rear, front double-leaf doors and top cover. Dismantled and easily assembled. Including earthing rods.
The cabinets for installing data and telecommunications equipment are excellently crafted. They are made of rolled steel, the supporting parts are made of 2 mm thick steel, the other parts are made of 1.2 mm steel sheet. The solid construction allows a static load of up to 800 kg.
Lockable front door with excellent lock, hand-lockable and optionally lockable side panels, lockable rear door. All parts are easy to assemble.
Comes with feet, castors and mounting kit. A pedestal can be added. Castors and feet can be installed at the same time, ensuring a stable installation that can be easily moved if needed.
BASIC SPECIFICATIONS
Rack format: 19"
Capacity: 47U
Degree of protection: IP20
Load capacity: 800 kg
Dimensions: 800 x 1000 x 2195 mm (width x depth x height)
Design:
doors - perforated, front and rear, the front door is double-leaf and the rear door has an optional opening direction, they are easily removable
back cover - perforated, optional opening direction, can be equipped with a lock
side cover - full, can be equipped with a lock
top cover - perforated
Color: black, RAL9004, decorative moldings on the doors
Other features
- The distribution cabinet includes four sliding vertical rails with perforations for attaching installed devices.
- Fasteners (cage nuts, washers, M6 screws) are included with the cabinet
- all parts for assembly easily removable
- Numbered positions for easy assembly
- There is a grounding point for connecting the grounding wire at the bottom of the switchboard.
- There are cable penetrations in the upper and lower parts of the cabinet and they are covered with blanking plugs.
- a ventilation unit can be installed in the lid and bottom
- meets international standard IEC 60297-2
Diagram:
click to enlarge...
Accessories:
- 4 x wheel
- 4 x leg
- socket wrench
- 16 x M6 mounting kit (ball head for socket wrench) for self-assembly of the cabinet
- 92 x M6 mounting kit for attaching elements (half-round head for Phillips screwdriver)
Shipping dimensions:
There are 5 boxes in total.
1) Frames are packed individually in cardboard boxes: 82x13x215 cm
2) Front and back doors are packed in one carton box: 68x9x216 cm
3) Both side panels are packed in one carton box: 88x9x266 cm
4) The upper and lower cover are packed in one carton box together with accessories: 88x17x108 cm
Easy installation:
Thanks to the delivery of the cabinet in a disassembled state, it is very easy totransport it even to difficult-to-reach places.
The cabinet assembly itself can be done in about 45 minutes without any special knowledge or special tools.
Quick assembly instructions (cz)
Please note: When receiving your shipment, it is necessary to check it for damage or incompleteness. Follow the instructions for receiving the package , which will ensure proper and timely resolution of any damage to the shipment.
