Triton 19" rack cabinet 37U/600x900, type RT, load capacity 1200kg, perforated door, RAL7035, gray

Triton RTA 19" 37U 600 x 900

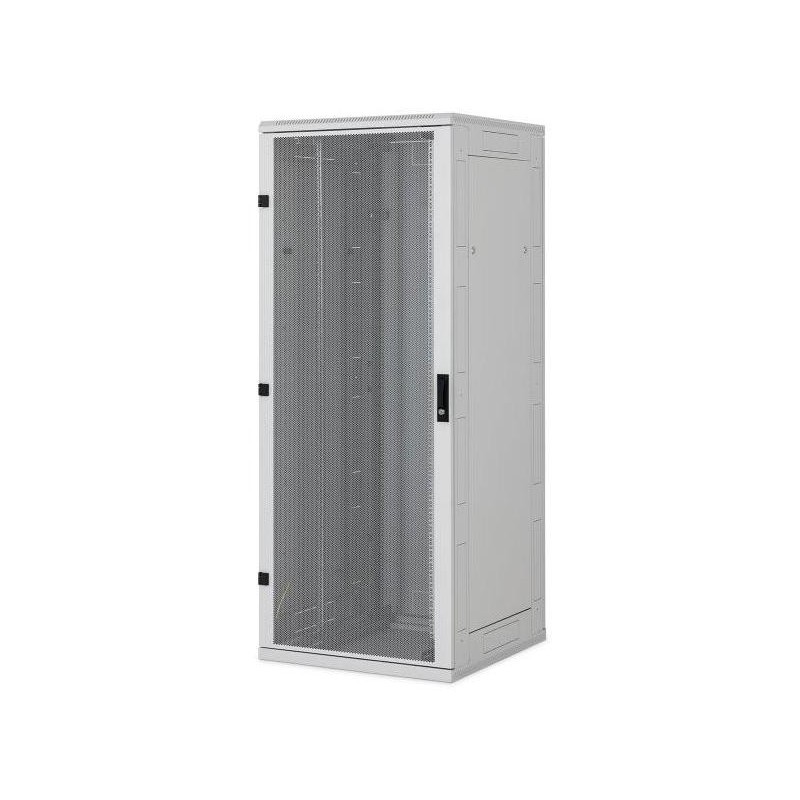

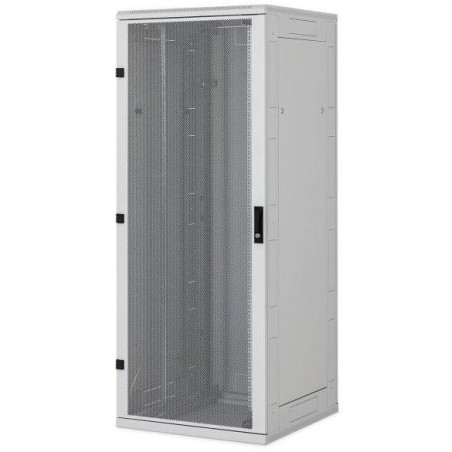

Illustrative photo - Variant A1 does not have knock-out blanks on the sides of the side panels. The upper blanks correspond to a separate diagram in the gallery or datasheet. More info in the datasheet.

Welded cabinet with removable side panels and rear cover. IP20 protection and load capacity 1200 kg (1500 kg when using reinforcing elements of vertical rails). Perforated doors (80% permeability) for better cooling of installed devices.

•

• 19" rack cabinet with IP20 protection.

• The cabinet includes 4 sliding vertical rails for installing equipment (6 rails for cabinets deeper than 800 mm).

• Switchboard design:

  - Steel welded frame with removable cover panels.

  - Single-leaf or double-leaf doors in all-metal, perforated (80% and 86% permeability) or glazed with 4 mm tempered safety glass.

  - The doors can be on the front or back of the cabinet.

• Preparation for installation of vertical tie-down panels and distribution panels, including mounting brackets, into the distribution cabinet frame.

• Preparation for easy connection of distribution boards into assemblies.

• Models A5 and A7 (at the end of the rack code) have cable entries covered with knock-out blanks also in the uprights for easy cable routing between racks.

• The maximum permissible load for each door is 20 kg.

• These cabinets are designed for the installation of data and telecommunications equipment and their distribution systems.

• The cabinet frame and all detachable parts (side and rear covers, doors, etc.) are connected using connecting cables, which must be firmly attached and inserted into the connectors throughout the entire period of use of the cabinet.

• There is an M8 screw on the bottom of the switchboard for connecting the grounding wire.

• Cable entries covered with knock-out blanking caps are located in the upper and lower parts of the cabinet.


BASIC SPECIFICATIONS

Height: 37U (1750mm)

Depth: 900 mm

Width: 600 mm

Max. recommended load: 1200 kg

Weight: 95 kg

Accessories:

2x key - removable covers

2x key - front door

16x M6 floating nuts

1x dust plug

1x hemming edge 1m

4x rectifying screw/foot for switchboard

4x M10 nuts
