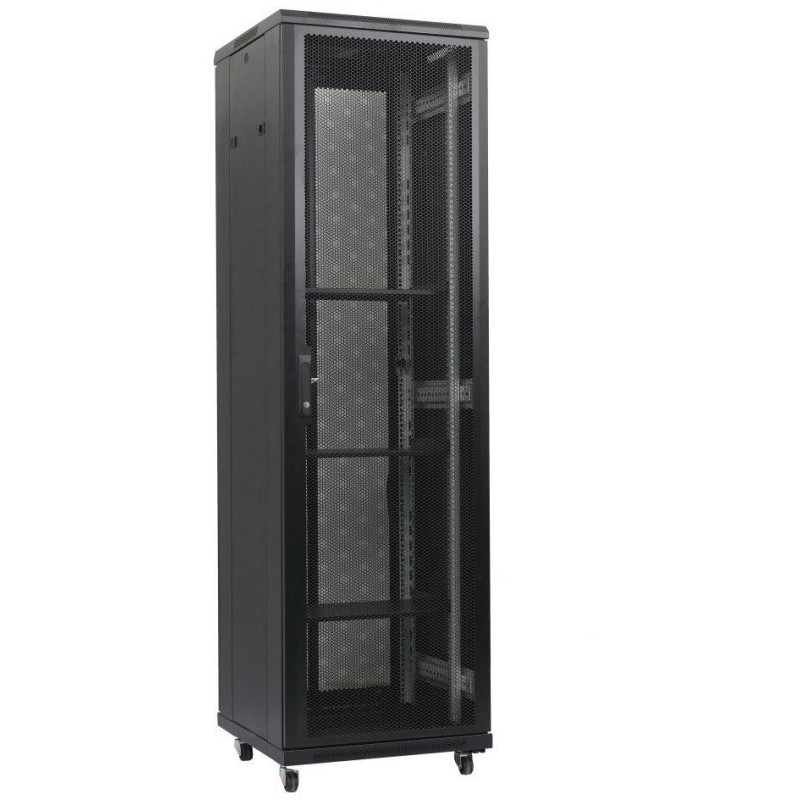

XtendLan PER-47U-68-BLACK-P
The distribution cabinet is suitable for installing data and telecommunications equipment.
The cabinets are excellently crafted. They are made of rolled steel, the supporting parts are made of 2 mm thick steel, the other parts are made of 1.2 mm steel sheet . The solid construction allows a static load of up to 1000 kg.
Lockable front door with excellent lock, hand-lockable and optionally lockable side panels, lockable rear door. All parts are easy to assemble.
Comes with feet, castors and mounting kit. A pedestal can be added. Castors and feet can be installed at the same time, ensuring a stable installation that can be easily moved if needed.
This switchboard is delivered disassembled .
BASIC SPECIFICATIONS
Rack format: 19"
Capacity: 47U
Degree of protection: IP20
Load capacity: 1000 kg
Dimensions: 600 x 800 x 2277 mm (width x depth x height)
Design:
Doors - perforated, lockable, optional opening direction
Rear cover - perforated, optional opening direction, can be equipped with a lock
Side cover - full, can be equipped with a lock
Top cover - full (plugs + perforated edges)
Color: black
Other features
- The distribution cabinet includes four sliding vertical rails with perforations for attaching installed devices.
- Fasteners (cage nuts, washers and M6 screws) are included with the switchboard.
- All assembly parts are easily removable.
- Numbered positions for easy assembly.
- There is a grounding point for connecting the grounding wire at the bottom of the switchboard.
- There are cable penetrations in the upper and lower parts of the cabinet and they are covered with blanking plugs.
- A ventilation unit can be installed in the lid and bottom.
- Meets international standard IEC 60297-2.
Diagram:
click to enlarge...
Accessories:
- 4x wheel
- 4x leg
- Socket wrench
- M6 mounting kit (ball head for socket wrench) for self-assembly of the cabinet
- M6 mounting kit for attaching elements (half-round head for Phillips screwdriver)
Easy installation:
Thanks to the delivery of the cabinet in a disassembled state, its transport is greatly facilitated, even to difficult-to-access places.
The cabinet assembly itself can be done in about 45 minutes without any special knowledge or special tools.
ef="https://download.asm.cz/inshop/prod/xtendlan/EMQ-Racks_XtendLan-CZ.pdf">
Quick assembly instructions (cz)
Please note: When receiving your shipment, it is necessary to check it for damage or incompleteness. Follow the instructions for receiving the package , which will ensure proper and timely resolution of any damage to the shipment.
