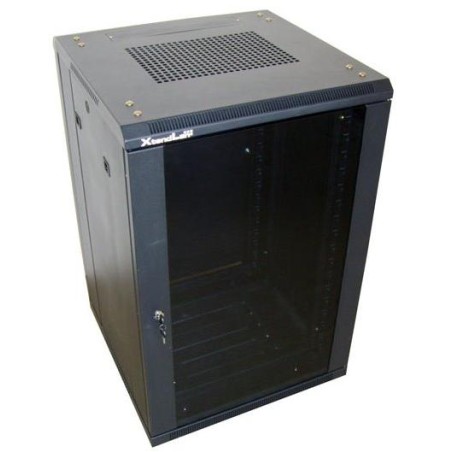

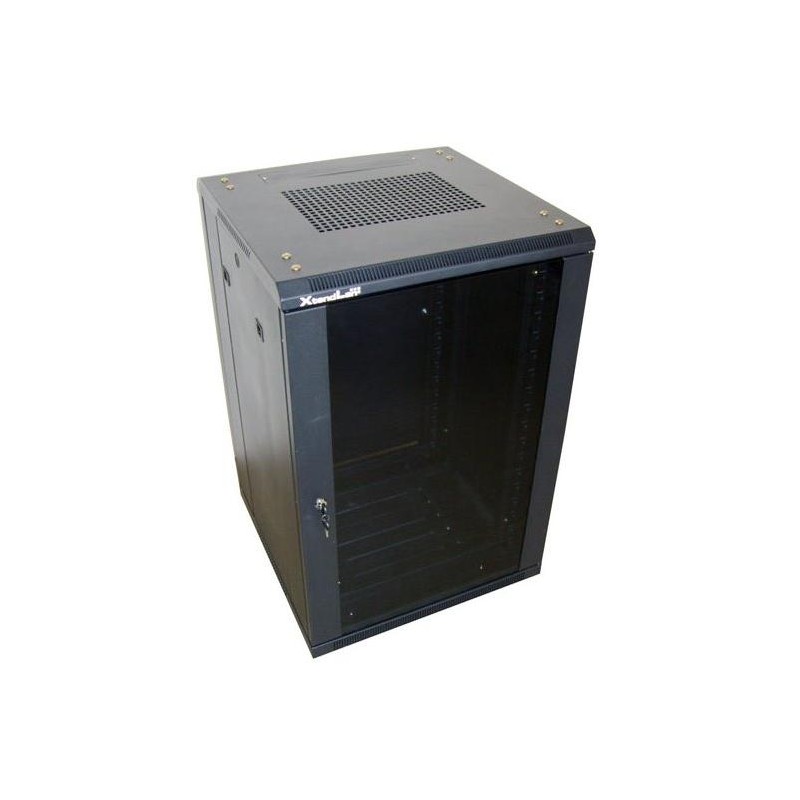

XtendLan ECO-18U-68-BLACK-S
Distribution cabinets for installing data and telecommunications equipment
ECO series
19" rack cabinet, dismountable and easy to assemble
The cabinets are excellently crafted. They are made of rolled steel, the supporting parts are made of 2mm thick steel, the rest of them are made of 1.2mm steel. The solid construction allows a static load of up to 800 kg.
Lockable front and rear doors, hand-lockable and optionally lockable side panels. All parts are easy to assemble.
Comes with feet, castors and mounting kit. A pedestal can be added. Castors and feet can be installed at the same time, ensuring a stable installation that can be easily moved if needed.
This switchboard is delivered disassembled.
BASIC SPECIFICATIONS
Rack format: 19"
Capacity: 18U
Degree of protection: IP20
Load capacity: 800 kg
Dimensions: 600 x 800 x 988 mm (width x depth x height)
Design:
door - tempered safety glass, smoked, user-selectable left or right
back cover - full
side cover - full
top cover - perforated
bottom cover - perforated
Color: black
Other features
- The distribution cabinet includes four sliding vertical rails with perforations for attaching installed devices.
- Fasteners (cage nuts, washers, M6 screws) are included with the cabinet
- all parts for assembly easily removable
- Numbered positions for easy assembly
- There is a grounding point for connecting the grounding wire at the bottom of the switchboard.
- There are cable penetrations in the upper and lower parts of the cabinet and they are covered with blanking plugs.
- a ventilation unit can be installed in the lid and bottom
- powder coated, black, RAL 7044, decorative strips on the doors
- meets the international standard IEC 60297-2
Diagram:
click to enlarge...
Accessories:
4x wheel, 4x foot, socket wrench, 16x M6 assembly kit (spherical head for socket wrench) for self-assembly of the cabinet, 92x M6 assembly kit for attaching elements (spherical head for Phillips screwdriver).
Transport dimensions when disassembled:
1) Frames are packed individually in cardboard boxes: 62 x 13 x 92 cm
2) Front and back doors are packed in one carton box: 38 x 9 x 90 cm
3) Both side panels are packed in one carton box: 58 x 9 x 90 cm
4) The upper and lower cover are packed in one carton box together with accessories: 68 x 17 x 88 cm
There are 5 boxes in total.
Easy installation:
The fact that the cabinet is delivered disassembled makes it very easy to transport it even to hard-to-reach places. The actual assembly of the cabinet can be done in about 45 minutes without any special knowledge or special tools.
The cabinet is excellently crafted.days,
It has easily removable side panels and the door can be opened 225 degrees.
Quick assembly instructions (cz)
Please note: When receiving your shipment, it is necessary to check it for damage or incompleteness. Follow the instructions for receiving the package , which will ensure proper and timely resolution of any damage to the shipment.
