XtendLan ECO-47U-68-BLACK-S
The cabinet is suitable for installing data and telecommunications equipment
19" rack-mounted ECO series rack, dismountable and easy to assemble. The racks are excellently crafted. They are made of rolled steel, the supporting parts are made of 2 mm thick steel, the rest of them are made of 1.2 mm steel. The solid construction allows a static load of up to 800 kg.
Lockable front and rear doors, hand-lockable and optionally lockable side panels. All parts are easy to assemble. Comes with feet, castors and mounting kit. A pedestal can be added. Castors and feet can be installed at the same time, ensuring a stable installation that can be easily moved if necessary.
This switchboard is delivered disassembled.
BASIC SPECIFICATIONS
Rack format: 19"
Capacity: 47U
Degree of protection: IP20
Load capacity: 800 kg
Dimensions: 600 x 800 x 2277 mm (width x depth x height)
Design:
door - tempered safety glass, smoked, user-selectable left or right
back cover - full
side cover - full
top cover - perforated
bottom cover - perforated
Color: black
Other features
- The distribution cabinet includes four sliding vertical rails with perforations for attaching installed devices.
- Fasteners (cage nuts, washers, M6 screws) are included with the cabinet
- all parts for assembly easily removable
- Numbered positions for easy assembly
- There is a grounding point for connecting the grounding wire at the bottom of the switchboard.
- There are cable penetrations in the upper and lower parts of the cabinet and they are covered with blanking plugs.
- a ventilation unit can be installed in the lid and bottom
- meets international standard IEC 60297-2
Diagram:
click to enlarge...
Accessories:
4x wheel, 4x foot, socket wrench, 16x M6 assembly kit (spherical head for socket wrench) for self-assembly of the cabinet, 92x M6 assembly kit for attaching elements (spherical head for Phillips screwdriver).
Transport dimensions when disassembled:
1) Frames are packed individually in cardboard boxes: 62 x 13 x 220 cm
2) Front and rear doors are packed in one carton box: 38 x 9 x 218 cm
3) Both side panels are packed in one carton box: 38 x 9 x 218 cm
4) The upper and lower cover are packed in one carton box together with accessories: 68 x 17 x 68 cm
There are 5 boxes in total.
Easy installation:
The fact that the cabinet is delivered disassembled makes it very easy to transport it even to hard-to-reach places. The actual assembly of the cabinet can be done in about 45 minutes without any special knowledge or special tools.
The cabinet is excellently crafted:
ck_small.jpg" />

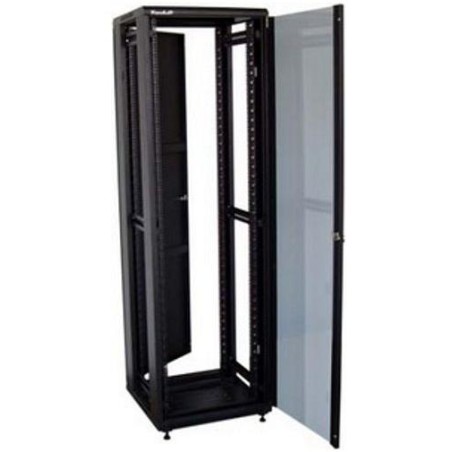

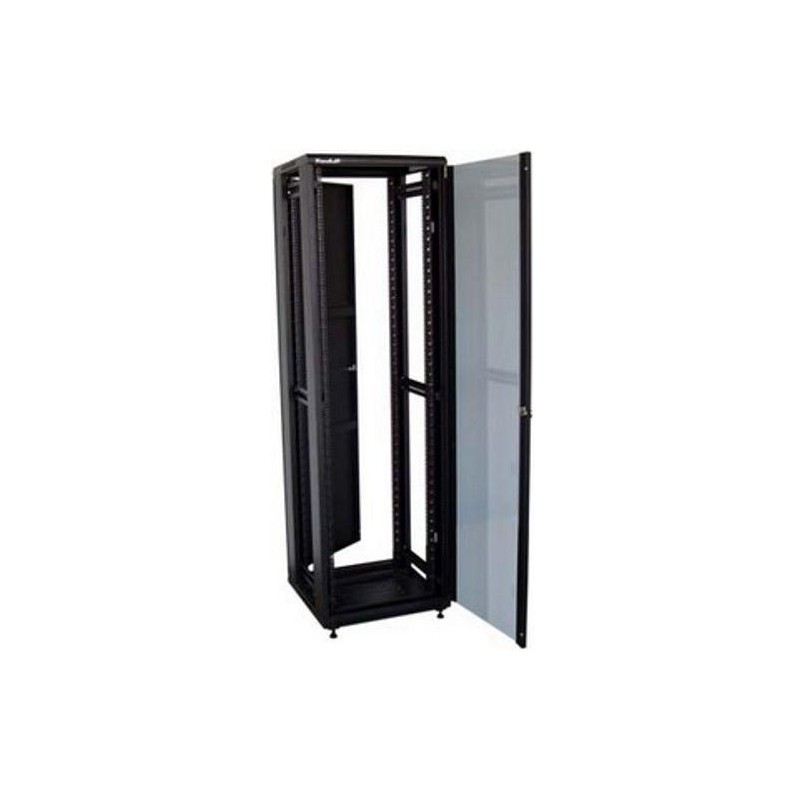

It has easily removable side panels and the door can be opened 225 degrees:
Quick assembly instructions (cz)
