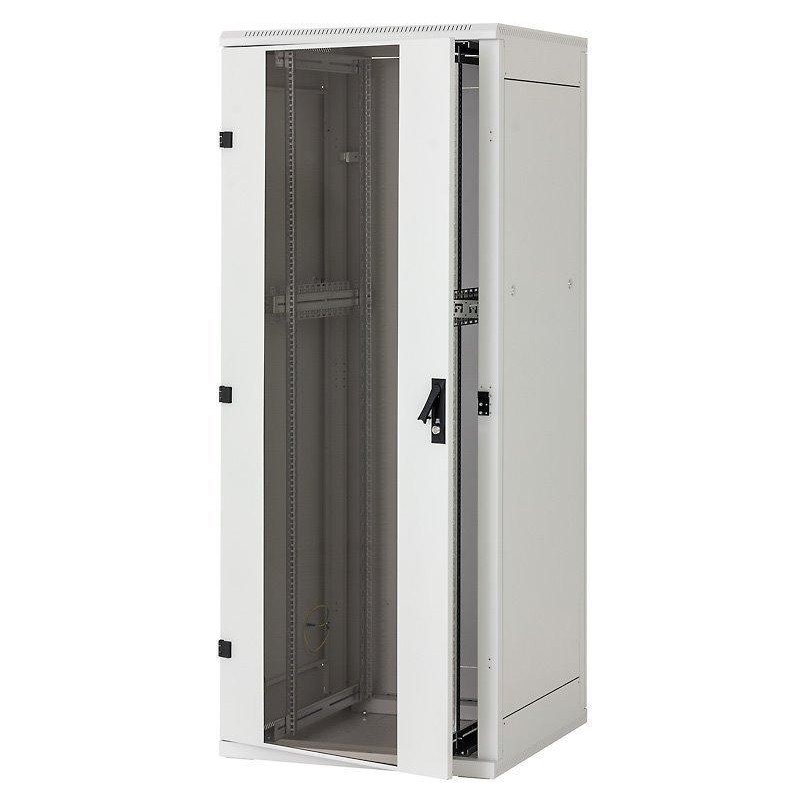

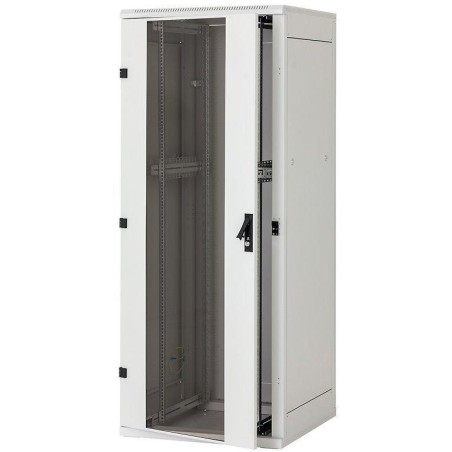

Triton RZA 19" 32U 600 × 800

Dismantled switchboard with bolted frame, removable side panels and rear cover. It has IP20 protection and offers a load capacity of 800 kg. Glass door with 4 mm tempered safety glass.

•

• door opening at an angle of 165°

• The door can be easily dismantled and converted to open on the opposite side.

• 19" vertical rails can be continuously adjusted to any rack depth

• The cable entries of the switchboard are covered with knock-out blanking plugs

• installation and removal of the ventilation unit from outside the cabinet without the need for screws

• perforated skeleton to ensure access of cooling air

• The cabinet can be placed on leveling feet (included in the package)


BASIC SPECIFICATIONS

Height: 32U (1525mm)

Depth: 800 mm

Width: 600 mm

Max. recommended load: 800 kg

Weight: 73.2 kg

Accessories:

2× key - removable covers

2× key - front door

16× M6 floating nuts

16× M6×12 screw

16× plastic washer 6.4

1× dust plug

1× hemming edge 1 m

4× rectifying screw/foot for the switchboard

4× M10 nuts
