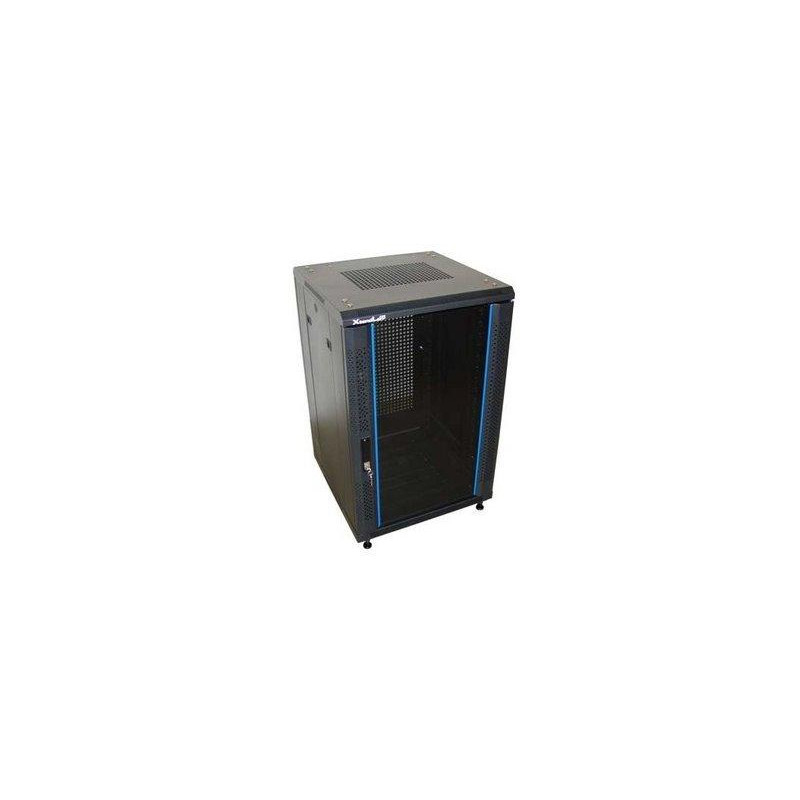

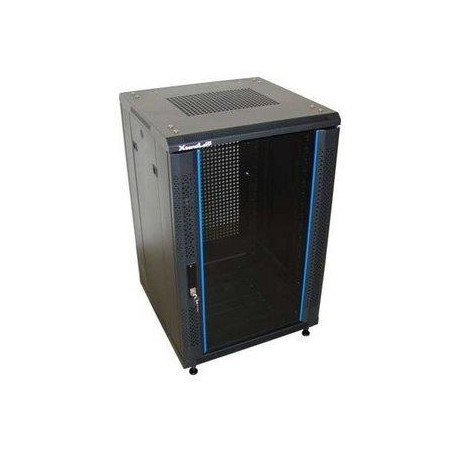

XtendLan TELCO-22U-66-BLACK-S
The distribution cabinet is suitable for installing data and telecommunications equipment.
The cabinets are excellently crafted. They are made of rolled steel, the supporting parts are made of 2 mm thick steel, the other parts are made of 1.2 mm steel sheet. The solid construction allows a static load of up to 1000 kg.
Lockable front door with excellent lock, hand-lockable and optionally lockable side panels, lockable rear door. All parts are easy to assemble.
Comes with feet, castors and mounting kit. A pedestal can be added. Castors and feet can be installed at the same time, ensuring a stable installation that can be easily moved if needed.
This switchboard is delivered disassembled.
BASIC SPECIFICATIONS
Rack format: 19"
Capacity: 22U
Degree of protection: IP20
Load capacity: 1000 kg
Dimensions: 600 x 600 x 1166 mm (width x depth x height)
Design:
door - perforated, tempered safety glass, smoked, lockable, optional opening direction
back cover - perforated, can be equipped with a lock, optional opening direction
side cover - non-perforated, can be equipped with a lock
top cover - perforated
Color: black, RAL9004, decorative moldings on the doors
Other features
- The distribution cabinet includes four sliding vertical rails with perforations for attaching installed devices.
- Fasteners (cage nuts, washers, M6 screws) are included with the cabinet
- all parts for assembly easily removable
- Numbered positions for easy assembly
- There is a grounding point for connecting the grounding wire at the bottom of the switchboard.
- There are cable penetrations in the upper and lower parts of the cabinet and they are covered with blanking plugs.
- a ventilation unit can be installed in the lid and bottom
- meets international standard IEC 60297-2
Diagram:
click to enlarge...
Accessories:
4x wheel
4x leg
socket wrench
16x M6 mounting kit (spherical head for socket wrench) for self-assembly of the cabinet
92x M6 mounting kit for attaching elements (spherical head for Phillips screwdriver)
Easy installation:
Thanks to the delivery of the cabinet in a disassembled state, its transport is greatly facilitated, even to difficult-to-access places.
The cabinet assembly itself can be done in about 45 minutes without any special knowledge or special tools.
The cabinet is excellent. handcrafted,
It has easily removable side panels and the door can be opened 225°.
Quick assembly instructions (cz)
