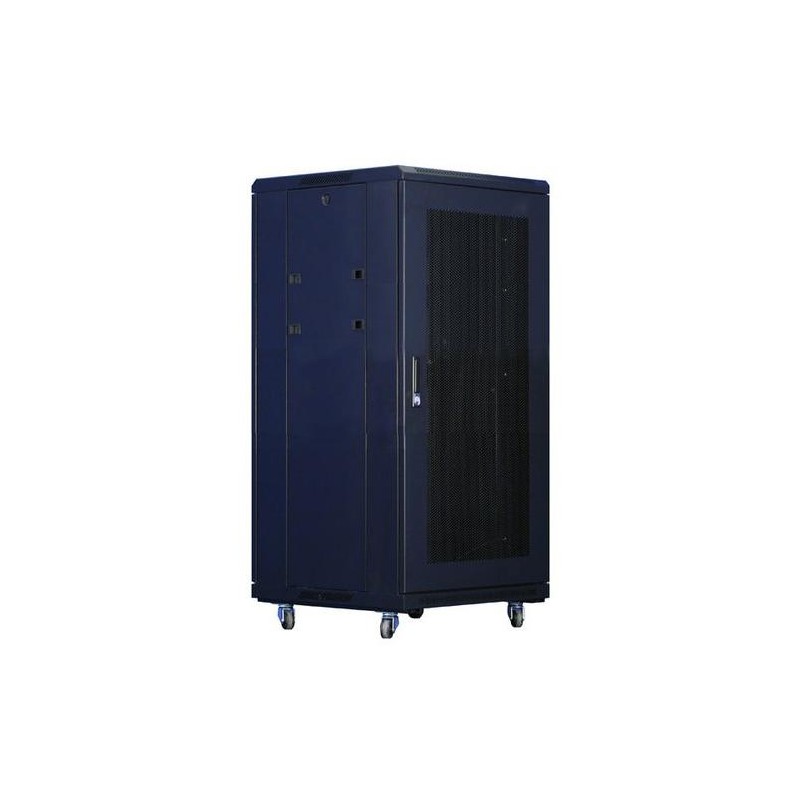

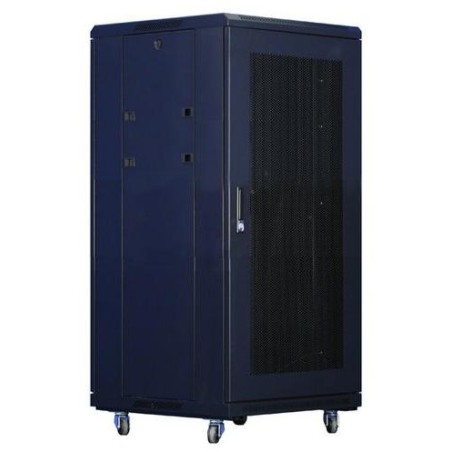

XtendLan PER-18U-66-BLACK
The distribution cabinet is suitable for installing data and telecommunications equipment.
The cabinets are excellently crafted. They are made of rolled steel, the supporting parts are made of 2 mm thick steel, the other parts are made of 1.2 mm steel sheet. The solid construction allows a static load of up to 1000 kg.
Lockable front door with excellent lock, hand-lockable and optionally lockable side panels, lockable rear door. All parts are easy to assemble.
Comes with feet, castors and mounting kit. A pedestal can be added. Castors and feet can be installed at the same time, ensuring a stable installation that can be easily moved if needed.
This switchboard is delivered disassembled.
BASIC SPECIFICATIONS
Rack format: 19"
Capacity: 18U
Degree of protection: IP20
Load capacity: 1000 kg
Dimensions: 600 x 600 x 988 mm (width x depth x height)
Design:
door - perforated, lockable, optional opening direction
back cover - perforated, optional opening direction, can be equipped with a lock
side cover - full, can be equipped with a lock
top cover - perforated
Color: black, RAL9004, decorative moldings on the doors
Other features
- The distribution cabinet includes four sliding vertical rails with perforations for attaching installed devices.
- Fasteners (cage nuts, washers, M6 screws) are included with the cabinet
- all parts for assembly easily removable
- Numbered positions for easy assembly
- There is a grounding point for connecting the grounding wire at the bottom of the switchboard.
- There are cable penetrations in the upper and lower parts of the cabinet and they are covered with blanking plugs.
- a ventilation unit can be installed in the lid and bottom
- meets the international standard IEC 60297-2
Accessories:
4x wheel
4x leg
socket wrench
16x M6 mounting kit (spherical head for socket wrench) for self-assembly of the cabinet
92x M6 mounting kit for attaching elements (spherical head for Phillips screwdriver)
Shipping dimensions:
There are 5 boxes in total.
1) Frames are packed individually in cardboard boxes: 62x13x92 cm
2) Front and back doors are packed in one carton box: 38x9x90 cm
3) Both side panels are packed in one carton box: 38x9x90 cm
4) The upper and lower cover are packed in one carton box together with accessories: 68x17x68 cm
Easy installation:
Thanks to the delivery of the cabinet in a disassembled state, its transport is greatly facilitated, even to difficult-to-access places.
The cabinet assembly itself can be done in about 45 minutes without any special knowledge or special tools.
Quick assembly instructions (cz)
Note: When receiving the shipment, it is necessary to check it for damage or incompleteness. Proceed according toEGA-Postup-prijem-baliku-2020.pdf" target="_blank" rel="noreferrer noopener">instructions for receiving the package, which will ensure proper and timely resolution of any damage to the shipment.
