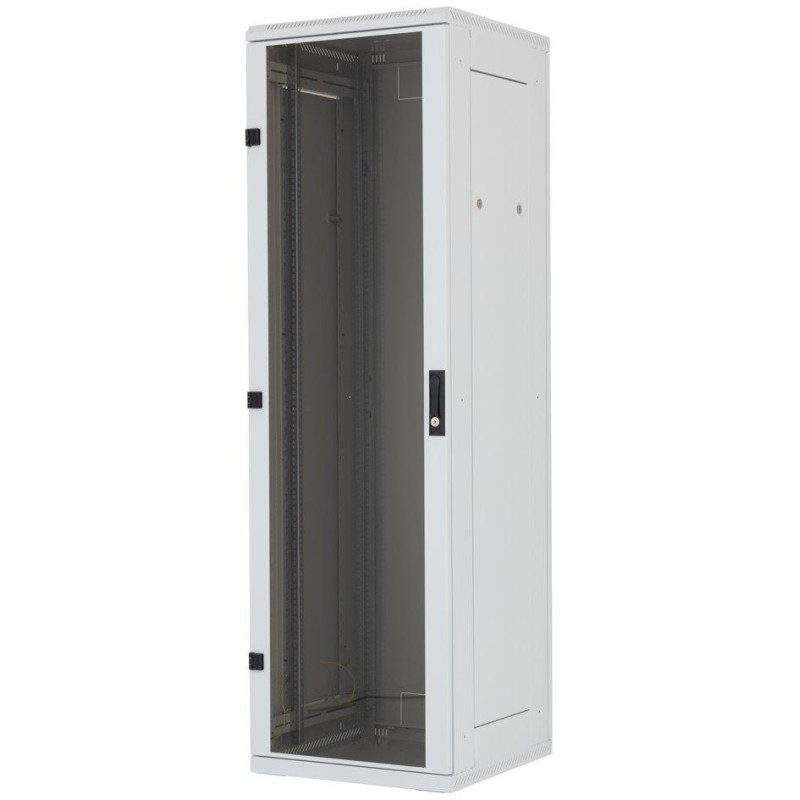

Triton 19" rack cabinet 22U/600x600, glass door

Triton RMA 19" 22U 600 × 600

Welded cabinet with IP20 protection, removable side panels and rear cover and a load capacity of 800 kg. It has glass doors with 4 mm tempered safety glass.

•

• High structural strength - RMA N1 has a robust welded structure. High quality workmanship and the latest technology ensure a great appearance of the cabinet. The stands have a new shape, are wider and are made of 1.3 mm thick material.

• Flexible door opening - The proprietary hinge system allows the door to open at an angle of 165°. The door can be easily dismantled and converted to open on the opposite side. The double-leaf doors are equipped with snap-on hinges.

• Glass - Sheet metal doors with glued glass are made of tempered safety glass 4 mm thick, which is resistant to common impacts. When broken, it forms a number of small fragments like car glass. The glass used is tested in a certified testing laboratory and meets the requirements of the ČSN EN 12150-1+A standard.

• Triton handles - Custom handles for rack-mounted distribution boards. By replacing the plastic module (not included), a semi-cylindrical lock insert can also be installed (optional accessory).

• Adjustable vertical rails - 19" vertical rails can be continuously adjusted to any depth of the rack. This makes it easier to mount devices and organize connecting cables.

• Removable side panels and rear cover - RMA N1 is a cabinet with a welded frame, with removable side panels and rear cover. Locks are attached to the frame, standard with a single key.

• Doors for ventilation units - For this type of switchboard, it is possible to order special sheet metal doors with preparation for mounting ventilation units RAx-CH-X0x-X3.

• Knock-out blanking plugs - The cable entries of the cabinet are covered with knock-out blanking plugs. To prevent dust from entering, the cables in the opening can be sealed with a blanking plug with a brush. A edging is used to protect the cables from damage (both are included in the cabinet package).

• Opening for the ventilation unit - A large opening covered by a knock-out blanking plate allows the Tritón ventilation unit to be mounted and removed from the outside of the cabinet without the need for screws.

• Casters, leveling feet, pedestal - The cabinet can be placed on leveling feet (included in the package), or using optional pedestal equipment, casters, or heavy-duty casters with a reinforcing frame.

• Rear of the cabinet - There are two cable entries on the rear wall of the cabinet covered with knock-out blanking caps. One is at the top and the other at the bottom edge of the cover. Additional cable entries are on the ceiling and in the base of the cabinet.

• Perforated frame - RMA N1 cabinets have a perforated frame to ensure access of cooling air to the installed technologies. Cooling can be supported by installing ventilation units.

• Connections - All separable parts are interconnected according to the requirements of the relevant standard.

• Flex frame - The system allows the installation of sliding rails with a width of 800 mm in 19", 21" and 23" spacing. Another option is to move the 19" spacing of the vertical rails to one side and thus gain more space on the other side.

• Middle pair of vertical rails - For cabinets deeper than 800 mm, a third pair of vertical rails for technology installation is supplied as standard. Thanks to their open profile, they do not restrict the installation of deeper devices. The middle vertical rail can be used toIt is better to mount the device using various types of supports (optional accessory).

• Wide frame posts - Wide frame posts are designed for additional installation of accessories, such as distribution panels or vertical tie-down panels, which do not take up 19" space in the rack. Thanks to the well-thought-out mounting, distribution panels do not prevent the use of retractable servers even in 600 mm wide racks.

• Accessories in the uprights - The uprights are equipped with mounting holes on the inner edges along their entire height. The holes are in the unit spacing of the vertical rails and can be used for mounting some types of accessories.


Features

•

• 19" rack cabinet with IP20 protection

• The cabinet includes 4 adjustable vertical rails for installing equipment (6 rails for cabinets deeper than 800 mm).

• Cabinet construction: welded steel frame with removable cover panels, single-leaf or double-leaf doors in all-metal versions, perforated (80% and 86% permeability) or glazed with 4mm safety tempered glass, which can be on the front and back of the cabinet, preparation for mounting vertical tie-down panels and distribution panels including mounting brackets into the cabinet frame, preparation for easy connection of cabinets into assemblies.

• The maximum permissible load for each door is 20 kg.

• The minimum thickness of the surface treatment is 65 µm.

• These cabinets are designed for the installation of data and telecommunications equipment and their distribution systems.

• The cabinet frame and all detachable parts (side and rear covers, doors, etc.) are connected using connecting cables, which must be firmly attached and inserted into the connectors throughout the entire period of use of the cabinet.

• The main M8 grounding screw is located at the bottom of the switchboard.

• Cable entries covered with knock-out blanking caps are located in the upper and lower parts of the cabinet.

• The maximum recommended static load of the cabinet is 800 kg using leveling feet or a pedestal.


BASIC SPECIFICATIONS

Height: 22U (1080mm)

Depth: 600mm

Width: 600 mm

Max. recommended load: 800 kg

Weight: 44.4 kg

Accessories:

2× key - removable covers

2× key - front door

16× M6 floating nuts

16× M6×12 screw

16× plastic washer 6.4

1× dust plug

1× hemming edge 1 m

4× rectifying screw/foot for the switchboard

4× M10 nuts
