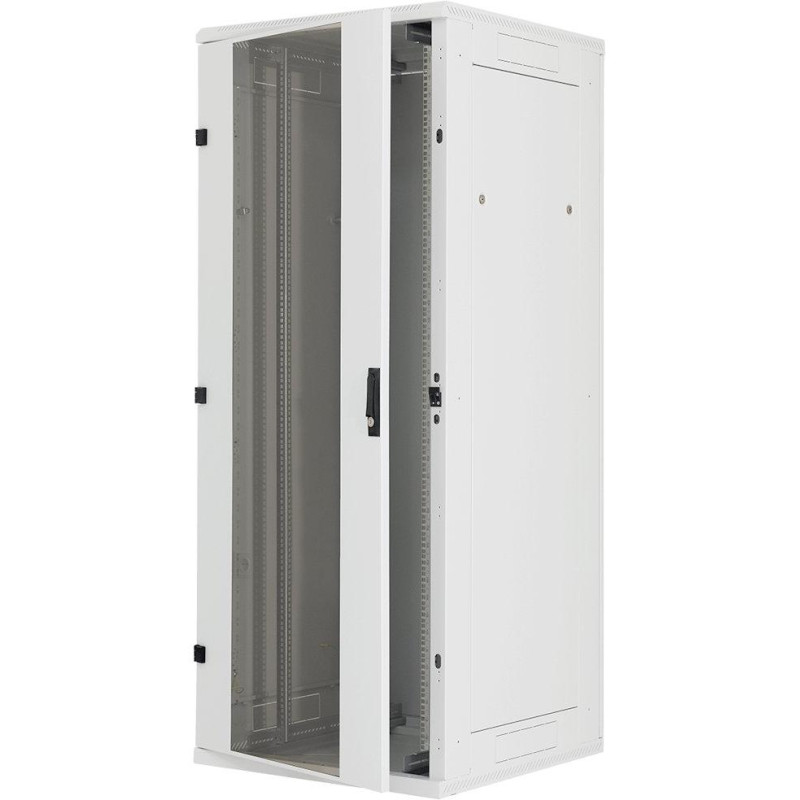

Triton 19" rack cabinet 42U/600x1000, type RT, RAL7035, gray

Professional server rack with high load capacity for demanding data and telecommunications applications.

The RTA rack is a top-of-the-line solution for data centers and server rooms thanks to its robust welded frame construction with removable side panels and rear cover. With a height of 42U and dimensions of 600 × 1000 mm, it provides enough space for large installations while maintaining compact dimensions.

The 1.3 mm thick material construction ensures maximum stability and a load capacity of up to 1500 kg with the use of reinforcing elements. The left glass door with tempered safety glass allows visual inspection of the equipment, while the round universal lock with single-point locking provides reliable security.

Advanced design solution
The rack uses the Flex frame system for flexible installation of sliding rails in 19", 21" and 23" spacing for wider variants. The wide frame legs allow the installation of tie-down and distribution panels without taking up 19" space.

Professional equipment
It comes standard with an M8 main earthing point, a cable protection edge and TRITON handles with replaceable lock cylinder. The perforated frame ensures optimal airflow for cooling the installed technologies.

Assembly flexibility
Compatible with pedestals, leveling feet and casters with a reinforcing frame. Possibility of installing ventilation units and a tilting frame for service access from the rear of the cabinet.

BASIC SPECIFICATIONS

Type: RTA – distribution cabinet, load capacity 1200/1500 kg, IP20

Color: RAL 7035 – light gray

Dimensions: 600 × 1000 × 1970 mm (w × d × h)

Height: 42U

Front door: left glass

Lock: universal round lock, single-point locking

Side covers: sheet metal (right and left)

Back cover: sheet metal with lock

Variant: A1 – with bottom, side covers for locks

Load capacity: 1200 kg (1500 kg with reinforcing elements)

Protection: IP20
