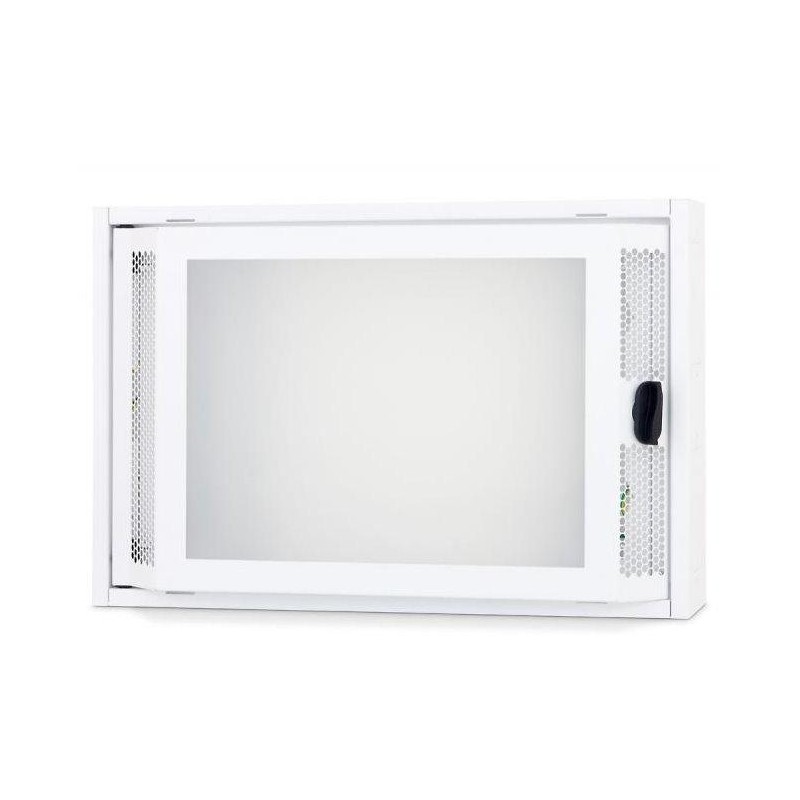

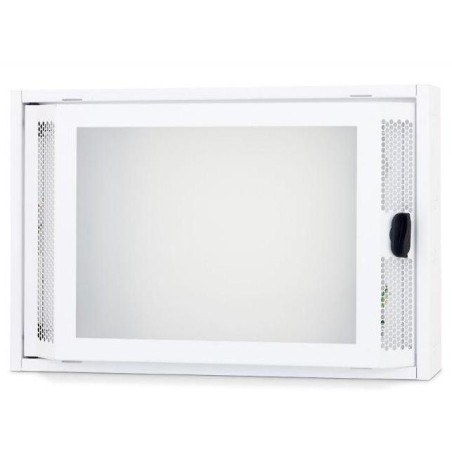

Triton Hybrid data cabinet 333x500x110 mm RAL9003 high gloss

Triton RNA-02-A51-YXX-X1

Hybrid data distribution cabinet for terminating all home cable distribution and installing active elements. Installation is possible directly on the wall or in a prepared hole in the wall. The plastic door filling and the entire structure support the installation of Wi-Fi devices. Cable entries on the top, bottom and both side walls of the distribution cabinet allow it to be connected into larger assemblies. The doors protrude forward to ensure the necessary bending radius of cables, including optical ones. The side support panels on both sides of the distribution cabinet can be folded down for easy installation of the components to be installed. On the opposite side from the data distribution cabinets, there is preparation for installing a 230 V power supply system. The maximum permissible load of the distribution cabinet is 20 kg, the maximum load of the door is 2 kg.

BASIC SPECIFICATIONS

Height: 333mm

Depth: 110* mm

Width: 500 mm

Max. recommended load: 20 kg

Weight: 6.4 kg

*Depth of the cabinet for wall mounting, total depth of the cabinet including protruding doors is 150 mm.
