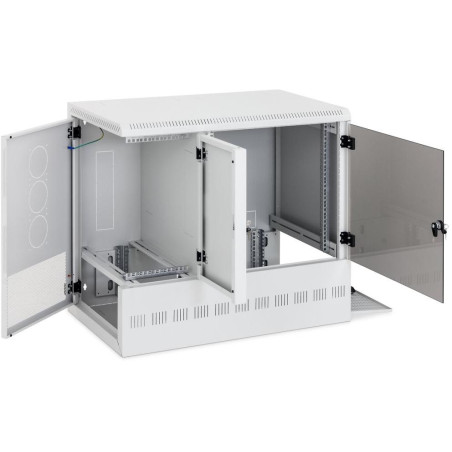

Triton 19' wall-mounted rack 12U/900x540mm + 3U, server right RAL7035 gray

Triton RFA 19" 12U+6U+3U 900 x 540 mm

Special wall-mounted rack divided into 3 separate 19" sections . The first section allows you to install equipment with a maximum height of 6U and a depth of 450 mm. The equipment is placed vertically and the rails are continuously adjustable throughout the entire depth of the rack. The second section has a mounting height of 12U and a depth of 450 mm, the mounting rails are also continuously adjustable. The third section occupies the entire area of the lower wall of the rack. There is space here for equipment with a maximum depth of 800 mm and a height of 3U. Access to this section is through a door on the right wall of the rack. The doors are different for each section, safety tempered glass with a thickness of 4 mm, sheet metal and perforated.

BASIC SPECIFICATIONS

Height: 12U

Depth: 540 mm

Width: 900 mm

Max. recommended load: 50 kg

Weight: 41 kg

Accessories:

4x key - door

6x screw 6x50

6x washer 6.6

6x dowel 10

8x M6 floating nuts

1x dust plug
