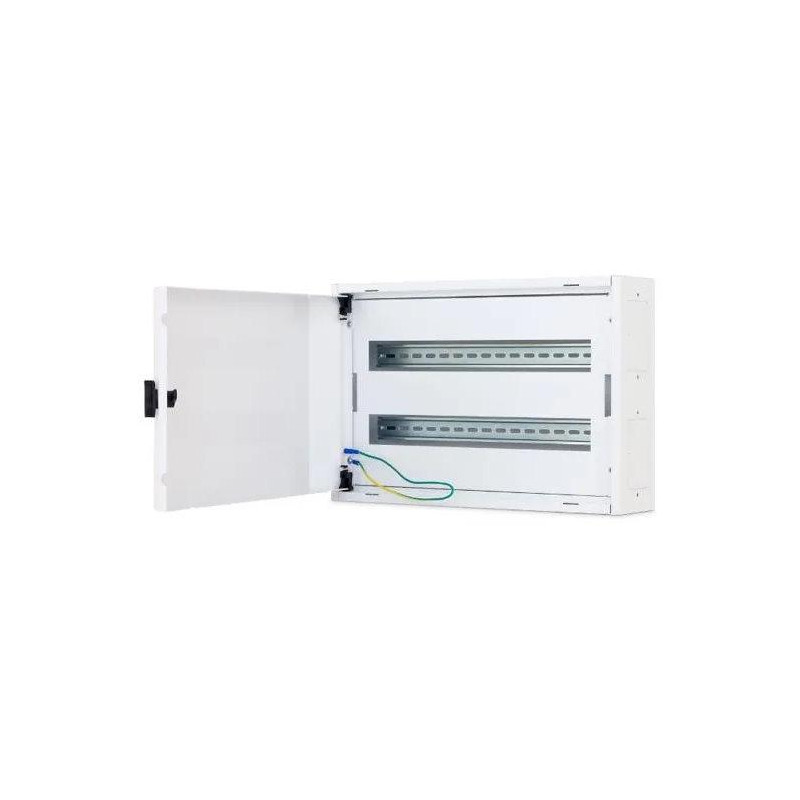

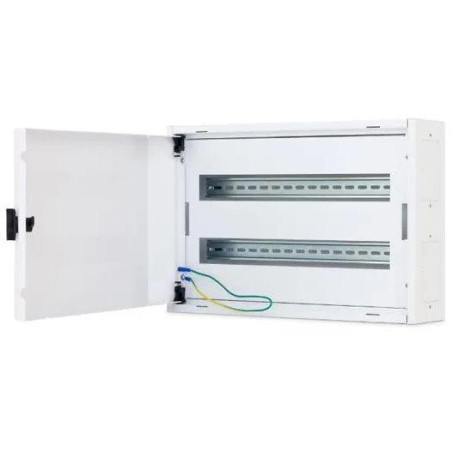

Triton Hybrid power distribution board 333x500x110 mm RAL9003 deep glossy

Triton SNA-02-C51-YXX-X1

Hybrid data distribution cabinet for terminating all house cable distribution and installing active elements. Cable entries on the top, bottom and both side walls of the cabinet allow it to be connected into larger assemblies with other cabinets of this series, including electrical cabinets. The cabinet doors are raised forward to ensure the necessary bending radius of cables, including optical ones. Perforations on the sides help cool the installed active elements. The maximum permissible load of the cabinet is 20 kg, the maximum door load is 2 kg.

BASIC SPECIFICATIONS

Height: 333mm

Depth: 110 mm

Width: 500 mm

Max. recommended load: 20 kg

Weight: 6.4 kg

Note: The niche for walling in the switchgear must be 15-20 mm larger in each direction than the dimensions of the switchgear.
