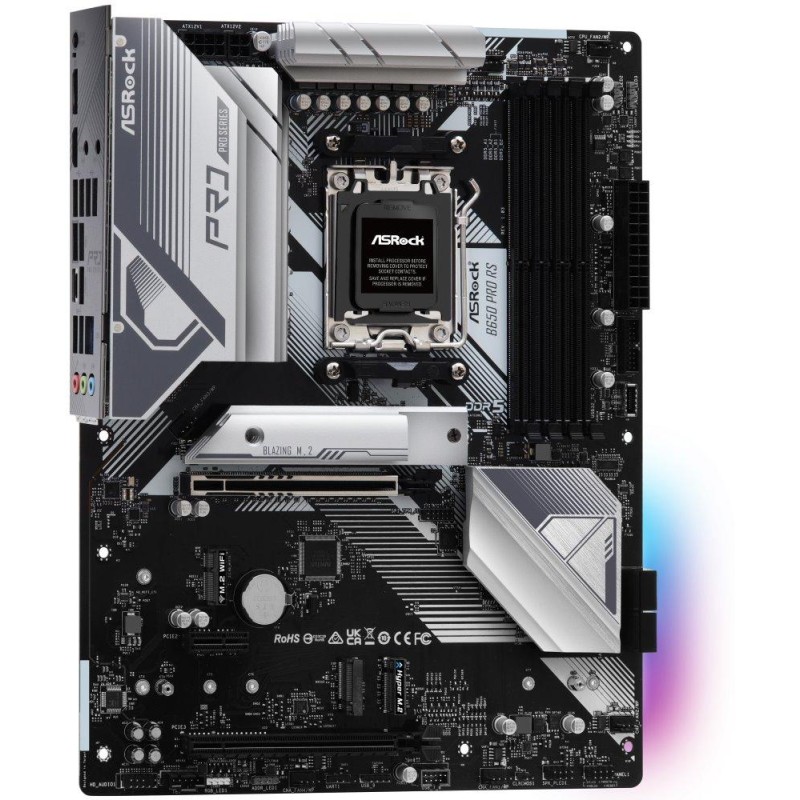

ASRock B650 Pro RS
The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.
CPU
Support for AMD Ryzen 7000 series processors (Socket AM5)
Chipset
AMD B650
Memory
4x DDR5 memory slots, support up to 192 GB
Supports DDR5 up to 6200+ (OC) MHz
Dual-channel memory architecture
ECC/non-ECC support, unbuffered
Support for AMD EXtended Profiles for Overclocking (EXPO)
Extreme Memory Profile (XMP) support
Slots
AMD CPU
1x PCIe 4.0 x16 slot
1x PCIe 3.0 x16 slot (supports x4 mode)
AMD B650 chipset
1x PCIe 4.0 x1 slot
Graphic arts
1x HDMI port, supporting max. resolution 4K at 120 Hz
1x DisplayPort port, supporting max. resolution 4K at 120 Hz
Multi-GPU
AMD CrossFire technology support
Storage
1x Blazing M.2 slot, M Key, for type 2280 units (PCIe 5.0 x4 mode)
1x Hyper M.2 slot, M Key, for 2260/2280 type units (PCIe 4.0 x4 mode)
1x M.2 slot, M Key, for 2242/2260/2280 type units (SATA and PCIe 3.0 x2 mode)
4x SATA 6Gb/s ports
ASRock U.2 Kit Support
RAID 0 and RAID 1 support for SATA drives
RAID 0, RAID 1 and RAID 10 support for PCIe drives
USB
1x USB 3.2 Gen2x2 Type C port available via internal USB connector
1x USB 3.2 Gen2 Type-C port on the back panel
1x USB 3.2 Gen2 type A port on the back panel
4x USB 3.2 Gen1 (USB 3.0) ports (2 ports on the back panel, 2 ports available via internal USB connector)
9x USB 2.0 ports (6 ports on the back panel, 3 ports available via internal USB connectors)
Audio
Realtek ALC897 Codec
7.1 channel High Definition Audio
Nahimic audio
HIND
1x Dragon RTL8125BG 2.5Gigabit LAN controller
Internal connectors
1x SPI TPM connector
1x speaker connector and Power LED
1x RGB LED strip connector
3x addressable LED strip connector
1x 4-pin CPU fan connector
1x 4-pin CPU fan/CPU water cooling fan connector
4x 4-pin case fan/CPU water cooling fan connector
1x 24-pin ATX main power connector
1x 8-pin 12V power connector
1x 4-pin 12V power connector
1x front panel audio connector
1x Thunderbolt AIC connector (supports ASRock Thunderbolt 4 AIC Card)
2x USB 2.0 connector (supports 3x USB 2.0 port)
1x USB 3.2 Gen1 (USB 3.0) connector (supports 2x USB 3.2 Gen1 port)
1x USB 3.2 Gen2x2 Type-C front panel connector
1x M.2 slot, E key for Wi-Fi module (not included)
Rear panel ports
1x HDMI
1x DisplayPort
1x USB 3.2 Gen2 Type-C
1x USB 3.2 Gen2 (USB 3.1 Gen2) type A
2x USB 3.2 Gen1 (USB 3.0)
6x USB 2.0
1x RJ-45
1x BIOS Flashback button
3x audio jacks
Dimensions
30.5 x 24.4 cm
ATX format
