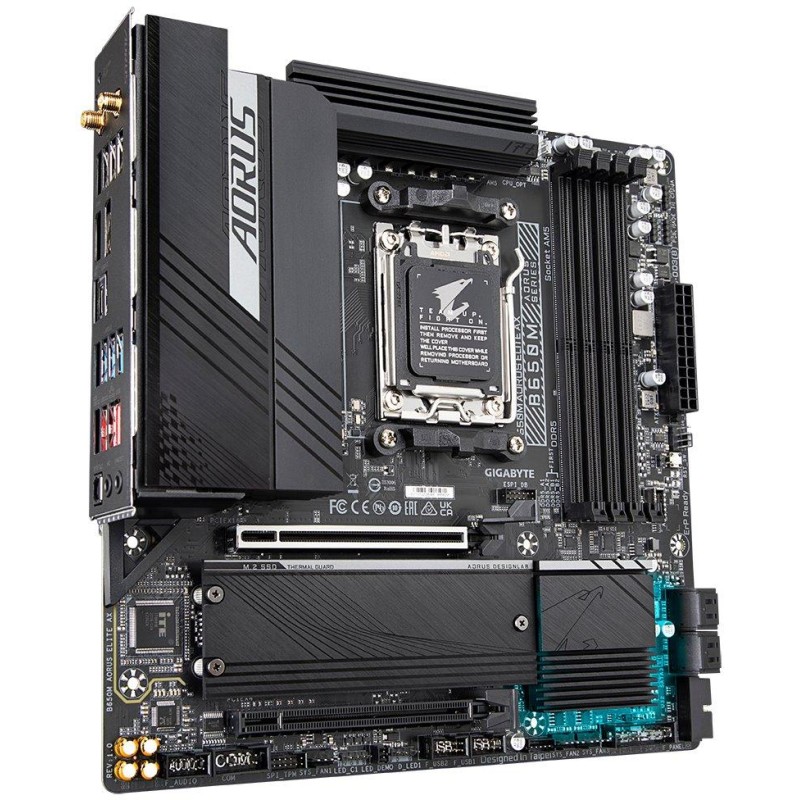

GIGABYTE B650M AORUS ELITE AX
The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.
CPU
Support for AMD Ryzen 7000 series processors (Socket AM5)
Chipset
AMD B650
Memory
4x DDR5 memory slots, support up to 192 GB
Support DDR5 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400MHz
Dual-channel memory architecture
Support non-ECC, unbuffered, 1Rx8/2Rx8/1Rx16
Support for AMD EXtended Profiles for Overclocking (EXPO)
Intel Extreme Memory Profile (XMP) support
Slots
AMD CPU
1x PCIe 4.0 x16 slot
AMD B650 chipset
1x PCIe 4.0 x16 slot (supports x4 mode)
Graphic arts
1x HDMI port, supporting max. resolution 4096 x 2160 at 60 Hz
1x DisplayPort port, supporting max. resolution 3840 x 2160 at 144 Hz
Storage
AMD CPU
1x M.2 slot, M Key, for 2280/25110 type units (PCIe 5.0 x4/x2 mode)
1x M.2 slot, M Key, for 2280/22110 type units (PCIe 4.0 x4/x2 mode)
AMD B650 chipset
4x SATA 6Gb/s ports
RAID 0, RAID 1 and RAID 10 support for SATA drives
RAID 0, RAID 1 and RAID 10 support for PCIe drives
USB
AMD B650 chipset
1x USB 3.2 Gen2x2 Type C port available via internal USB connector
7x USB 3.2 Gen1 (USB 3.0) ports (5 ports on the back panel, 2 ports available via internal USB connector)
4x USB 2.0 ports available via internal USB connectors
AMD CPU
1x USB 3.2 Gen2 Type-C port on the back panel
2x USB 3.2 Gen2 type A port on the back panel
4x USB 2.0 ports on the rear panel
Audio
Realtek Audio Codec
2/4/5.1/7.1 channel High Definition Audio
S/PDIF output support
HIND
1x Realtek 2.5Gigabit LAN controller
WLAN/Bluetooth
AMD Wi-Fi 6E RZ616 (MT7922A22M)
Wi-Fi 802.11a/b/g/n/ac/ax
Triple Band (2.4 GHz, 5 GHz, 6 GHz)
Data transfer speed up to 2.4 Gbps
Bluetooth 5.2
Internal connectors
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x CPU fan connector
1x CPU water cooling fan connector
3x system fan connector
1x system fan/water cooling pump connector
2x addressable LED strip connector
2x RGB LED strip connector
1x CPU cooler LED strip/RGB LED strip connector
2x M.2 slots, M Key
4x SATA 6Gb/s connector
1x front panel connector
1x front panel audio connector
1x USB 3.2 Gen2x2 type C connector
1x USB 3.2 Gen1 (USB 3.0) connector (supports 2x USB 3.2 Gen1 port)
2x USB 2.0 connector (supports 4x USB 2.0 port)
1x serial port connector
1x Thunderbolt AIC connector
1x TPM connector (only supports GC-TPM2.0 SPI and GC-TPM2.0 SPI 2.0 modules)
1x Reset button
1x Reset jumper
1x Clear CMOS jumper
Rear panel ports
1x Q-Flash Plus button
2x Wi-Fi antenna connector
1x DisplayPort
1x HDMI
1x USB 3.2 Gen2 Type-C
2x USB 3.2 Gen2 (USB 3.1 Gen2)
5x USB 3.2 Gen1 (USB 3.0)
4x USB 2.0
1x RJ-45
1x optical S/PDIF output
2x audio jacks
Dimensions
24.4 x 24.4 cm
Micro ATX format
