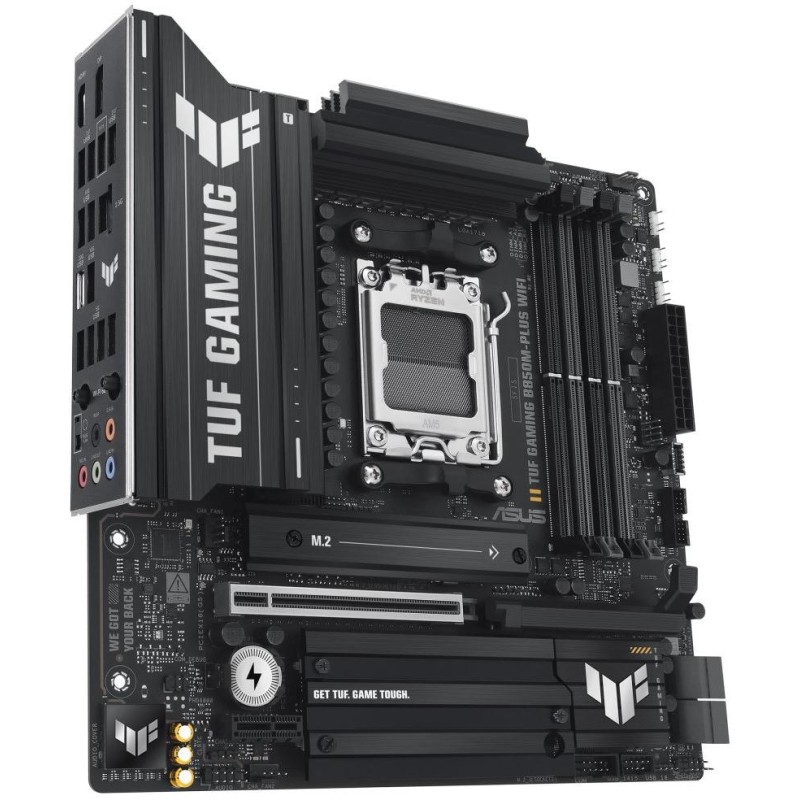

ASUS TUF GAMING B850M-PLUS
The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.
CPU
Support for AMD Ryzen 9000/ 8000/ 7000 series processors (Socket AM5)
Chipset
AMD B850
Memory
4× DDR5 memory slots, support up to 256 GB
DDR5 support up to 8000+ MT/s (OC)
Dual-channel memory architecture
ECC and non-ECC support, unbuffered
Support On-Die ECC function
Support for AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP) support
Slots
AMD Ryzen 9000 and 7000 series
1× PCIe 5.0 x16 slot
AMD Ryzen 8000 series
1× PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD B850 chipset
1× PCIe 4.0 x1 slot
Graphic arts
1× DisplayPort, supporting max. resolution 8K at 30 Hz (according to DP 1.4)
1× HDMI, supporting max. resolution 4K at 60 Hz (according to HDMI 2.1)
Storage
AMD Ryzen 9000 and 7000 series
1× M.2 slot, M Key, for type 2280 units (PCIe 5.0 x4 mode)
1× M.2 slot, M Key, for 2242/2260/2280 type units (PCIe 4.0 x4 mode)
AMD Ryzen 8000 series
1× M.2 slot, M Key, for type 2280 units (PCIe 4.0 x4 mode)
1× M.2 slot, M Key, for 2242/2260/2280 type units (PCIe 4.0 x4/x2 mode)
AMD B850 chipset
1× M.2 slot, M Key, for type 2280 units (PCIe 4.0 x4 mode)
4× SATA 6Gb/s
AMD RAIDXpert2 support
AMD Ryzen 9000 series
RAID 0, RAID 1, RAID 5 and RAID 10 support
AMD Ryzen 8000 series
RAID 0, RAID 1 support
AMD Ryzen 7000 series
RAID 0, RAID 1 and RAID 10 support
USB
1× USB-C 3.2 Gen2x2 port on the back panel
3× USB 3.2 Gen2 (USB 3.1) ports on the back panel
1× USB-C 3.2 Gen2 (USB 3.1) port available via internal USB connector
6× USB 3.2 Gen1 (USB 3.0) ports (4 ports on the back panel, 2 ports available via internal USB connector)
7× USB 2.0 ports (4 ports on the back panel, 3 ports available via internal USB connectors)
Audio
Realtek ALC1220P Audio Codec
7.1-channel Surround Sound High Definition Audio
120 dB SNR stereo output and 113 dB SNR recording input
HIND
1× Realtek 2.5Gigabit LAN controller
TUF LANGuard
WLAN/Bluetooth
2×2 Wi-Fi 6E (802.11ax)
Triple Band (2.4 GHz, 5 GHz, 6 GHz)
Bluetooth 5.3
Internal connectors
1× 24pin ATX main power connector
2× 8pin +12V power connector
4× SATA 6Gb/s
3× M.2 slots, M Key
1× USB-C 3.2 Gen2 (USB 3.1)
1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1)
2x USB 2.0 connector (supports 3x USB 2.0)
1× 4pin CPU fan connector
1× 4-pin optional CPU fan connector
1× 4pin water cooling pump connector
3× 4-pin chassis fan connector
3× addressable RGB LED strip connector
1× Clear CMOS jumper
1× chassis opening detection connector
1× serial port connector
1× ohdio front panel connector
1× 10-1pin system board connector
Rear panel ports
1× USB-C 3.2 Gen2x2
3× USB-C 3.2 Gen2 (USB 3.1)
4x USB 3.2 Gen1 port (USB 3.0)
4× USB 2.0
1× DisplayPort
1× HDMI
1× RJ-45
5× audio jacks
2× Wi-Fi antenna connector
1× BIOS FlashBack button
Dimensions
24.4 × 24.4 cm
mATX format
