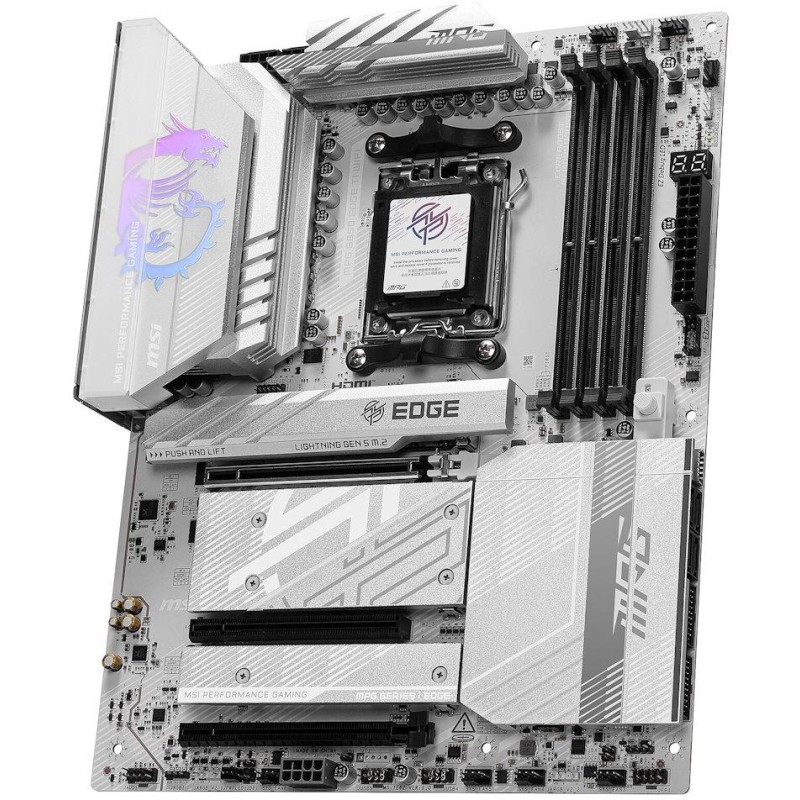

MSI MPG B850 EDGE TI WIFI
The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.
CPU
Support for AMD Ryzen 9000/ 8000/ 7000 series processors (Socket AM5)
Chipset
AMD B850
Memory
4× DDR5 memory slots, support up to 256 GB
DDR5 support up to 8400–5600 (OC) MT/s / 5600–4800 (JEDEC) MT/s
1DPC 1R max. speed up to 8400+ MT/s
1DPC 2R max. speed up to 6400+ MT/s
2DPC 1R max. speed up to 6400+ MT/s
2DPC 2R max. speed up to 4800+ MT/s
Dual-channel memory architecture
Support non-ECC, unbuffered memory
AMD EXPO Support
CUDIMM support, only in Clock Driver bypass mode
Slots
AMD Ryzen 9000 and 7000 series
1× PCIe 5.0 x16 slot
AMD Ryzen 8700/ 8600/ 8400 series
1× PCIe 4.0 x16 slot (supports x8 mode)
AMD Ryzen 8500/ 8300 series
1× PCIe 4.0 x16 slot (supports x4 mode)
AMD B850 chipset
1× PCIe 4.0 x16 slot (supports x4 mode)
1× PCIe 3.0 x16 slot (supports x1 mode)
Graphic arts
1× HDMI port, supporting max. resolution 8K at 60 Hz (according to HDMI 2.1)
Storage
AMD Ryzen 9000 and 7000 series
1× M.2 slot, M Key, for 22110/2280 type units (PCIe 5.0 x4 mode)
1× M.2 slot, M Key, for 2280/2260 type units (PCIe 5.0 x4 mode)
AMD B850 chipset
1× M.2 slot, M Key, for 2280/2260 type units (PCIe 4.0 x2 mode)
1× M.2 slot, M Key, for 2280/2260 type units (PCIe 4.0 x4 mode)
4× SATA III
RAID 0, RAID 1, and RAID 10* support for M.2 NVMe drives
*RAID 10 for M.2 NVMe drives is only supported using AMD Ryzen 9000/7000 series.
USB
8× USB 2.0 (4 ports on the back panel, 4 ports available via internal USB connectors)
3× USB-C 3.2 Gen2 (USB-C 3.1) ports on the back panel
2× USB 3.2 Gen2 (USB 3.1) ports on the back panel
5× USB 3.2 Gen1 (USB 3.0) ports (1 port on the back panel, 4 ports available via internal USB connectors)
1× USB-C 3.2 Gen2×2 available via internal USB connector
Audio
Realtek ALC4080 audio codec
7.1-channel USB High Performance Audio
S/PDIF output support
HIND
1× Realtek 8126 5G LAN controller
WLAN/Bluetooth
Wi-Fi 7 (802.11a/b/g/n/ac/ax/be)
Triple Band (2.4 GHz, 5 GHz, 6 GHz)
MU-MIMO TX/RX support
Transfer speed up to 5.8 Gbps
Bluetooth 5.4
Internal connectors
1× 24pin ATX main power connector
2× 8pin +12V power connector
1× 8pin PCIe power connector
1× 4pin CPU fan connector
1× 4-pin water cooling pump/system fan connector
6× 4-pin system fan connector
1× EZ Conn V2 connector (JAF_2)
2x system panel connector
1× chassis opening detection connector
1× front panel audio connector
3× 3pin A-RAINBOW V2 (ARGB Gen2) LED connector
1× 4pin RGB LED connector
1× TPM module connector
1× Clear CMOS jumper
1× OC safe bo jumperoh
2x USB 2.0 port (supports 4x USB 2.0)
2× USB 3.2 Gen1 (USB 3.0) ports (supports 4× USB 3.2 Gen1)
1× USB-C 3.2 Gen2×2 port
Rear panel ports
2× Wi-Fi antenna connector
1× HDMI
3x USB-C 3.2 Gen2 (USB-C 3.1)
2× USB 3.2 Gen2 (USB 3.1)
1× USB 3.2 Gen1 (USB 3.0)
4× USB 2.0
1× RJ-45
2× audio jacks
1× S/PDIF
1× Flash BIOS button
1× Clear CMOS button
Dimensions
304.8 x 243.84mm
ATX format
