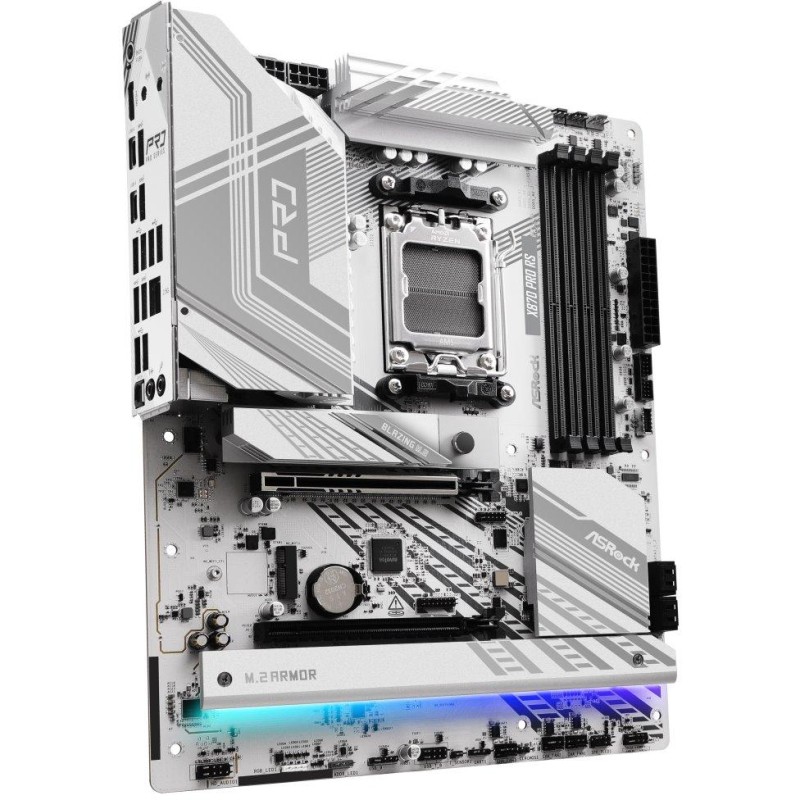

ASRock X870 Pro RS
The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.
CPU
Support for AMD Ryzen 9000, 8000 and 7000 series processors (AM5 socket)
Chipset
AMD X870
Memory
4× DDR5 memory slots, support up to 256 GB
DDR5 support up to 8000+ (OC) MT/s
Dual-channel memory architecture
ECC and non-ECC support, unbuffered
Support for AMD EXtended Profiles for Overclocking (EXPO)
Extreme Memory Profile (XMP) support
Slots
AMD CPU
1× PCIe 5.0 x16 slot
AMD X870 chipset
1× PCIe 4.0 x16 slot (supports x4 mode)
Graphic arts
1× HDMI port, supporting max. resolution 4K at 120 Hz
2× USB4 (USB-C) ports, supporting max. resolution 8K at 30 Hz
Multi-GPU
AMD CrossFire technology support
Storage
AMD CPU
1× Blazing M.2 slot, M Key, for 2280 type units (PCIe 5.0 x4 mode)
AMD X870 chipset
1× Hyper M.2 slot, M Key, for 2230/2242/2260/2280 type units (PCIe 4.0 x4 mode)
1× Ultra M.2 slot, M Key, for 2280 type units (SATA 6Gb/s PCIe 3.0 x4 mode)
2× SATA 6Gb/s ports
ASMedia ASM1061
2× SATA 6Gb/s ports
RAID 0 and RAID 1 support for SATA drives
RAID 0, RAID 1, and RAID 10 support for M.2 NVMe drives
USB
AMD CPU
2x USB4 (USB-C) on the back panel
2× USB 3.2 Gen1 (USB 3.0) on the back panel
AMD X870 chipset
1× USB-C 3.2 Gen2×2 available via internal USB connector
4× USB 3.2 Gen1 (USB 3.0) (2 ports on the back panel, 2 ports available via internal USB connector)
9× USB 2.0 (6 ports on the back panel, 3 ports available via internal USB connectors)
Audio
Realtek ALC1220 Codec
7.1 channel High Definition Audio
HIND
1× Dragon RTL8125BG 2.5Gigabit LAN controller
Internal connectors
1× thermistor cable connector
1× speaker connector and Power LED
1× RGB LED strip connector
3× addressable LED strip connector
2× 4pin CPU fan connector
4× 4pin chassis fan connector
1× 4pin water cooling pump connector
1× 24pin ATX main power connector
2× 8pin 12V power connector
1× M.2 slot, E key for Wi-Fi module (not included)
1× front panel audio connector
2x USB 2.0 connector (supports 3x USB 2.0 port)
1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1 ports)
1× USB-C 3.2 Gen2×2 front panel connector
Rear panel connectors
1× HDMI
1× optical S/PDIF output
2× USB4 (USB-C)
4× USB 3.2 Gen1 (USB 3.0)
6× USB 2.0
1× RJ-45
2× audio jacks
1× BIOS Flashback button
Dimensions
305 × 244 mm
ATX format
