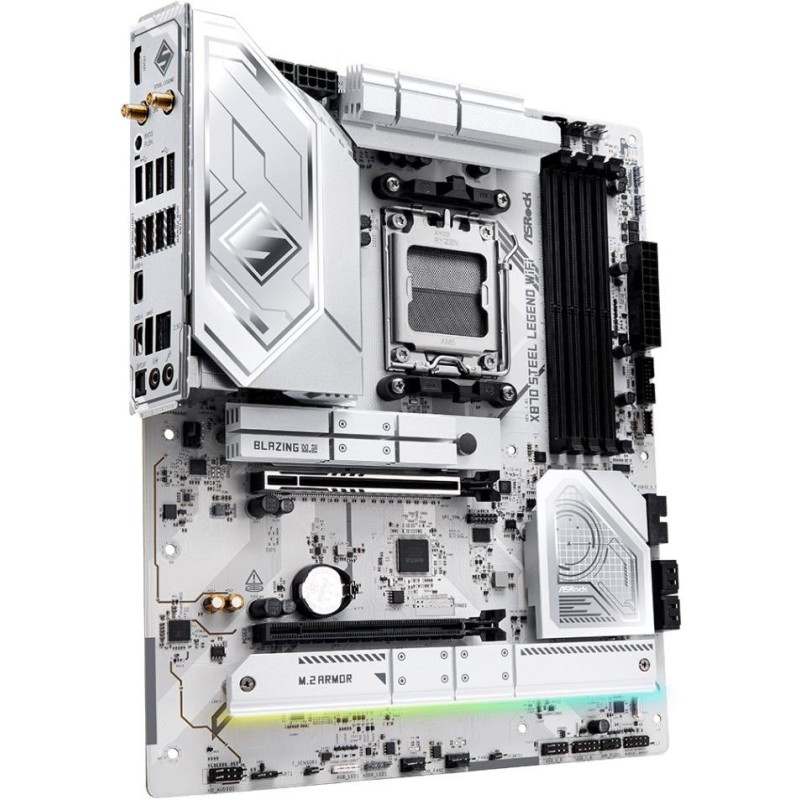

ASRock X870 Steel Legend WiFi
The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.
CPU
Support for AMD Ryzen 9000, 8000 and 7000 series processors (AM5 socket)
Chipset
AMD X870
Memory
4× DDR5 memory slots, support up to 256 GB
DDR5 support up to 8000+ (OC) MT/s
Dual-channel memory architecture
ECC/non-ECC support, unbuffered
Support for AMD EXtended Profiles for Overclocking (EXPO)
Extreme Memory Profile (XMP) support
Slots
AMD CPU
1× PCIe 5.0 x16 slot
1× PCIe 4.0 x16 slot (supports x4 mode)
Graphic arts
1× HDMI, supporting max. resolution 4K at 120 Hz
2× USB4 (USB-C), supporting max. resolution 8K at 30 Hz
Multi-GPU
AMD CrossFire technology support
Storage
AMD CPU
1× Blazing M.2 slot, M Key, for 2280 type units (PCIe 5.0 x4 mode)
AMD X870 chipset
1× Hyper M.2 slot, M Key, for 2230/2260/2280 type units (PCIe 4.0 x4 mode)
1× Hyper M.2 slot, M Key, for 2260/2280 type units (PCIe 4.0 x4 mode)
ASMedia ASM1061
4× SATA 6Gb/s ports
RAID 0, RAID 1, and RAID 10 support for M.2 NVMe drives
USB
AMD CPU
2× USB4 (USB-C) ports on the back panel
1× USB 3.2 Gen2 (USB 3.1) port on the back panel
1× USB 3.2 Gen1 (USB 3.0) port on the back panel
AMD X870 chipset
1× USB-C 3.2 Gen2×2 port available via internal USB connector
1× USB 3.2 Gen2 (USB 3.1) port on the back panel
6× USB 3.2 Gen1 (USB 3.0) ports (2 ports on the back panel, 4 ports available via internal USB connectors)
8× USB 2.0 ports (4 ports on the back panel, 4 ports available via internal USB connectors)
Audio
Realtek ALC4082 Codec
7.1 channel High Definition Audio
Nahimic audio
HIND
1× Dragon RTL8125BG 2.5Gigabit LAN controller
WLAN/Bluetooth
2×2 Wi-Fi 7 (802.11a/b/g/n/ac/ax/axe/be)
Triple Band (2.4 GHz, 5 GHz, 6 GHz)
MU-MIMO support
Bluetooth 5.4
Internal connectors
1× thermistor cable connector
1× speaker connector and Power LED
1× RGB LED strip connector
3× addressable LED strip connector
2× 4pin CPU fan connector
3× 4-pin chassis fan connector
1× 4pin water cooling pump connector
1× 24pin ATX main power connector
2× 8pin 12V power connector
1× front panel audio connector
2x USB 2.0 connector (supports 4x USB 2.0 port)
2× USB 3.2 Gen1 (USB 3.0) connector (supports 4× USB 3.2 Gen1 ports)
1× USB-C 3.2 Gen2×2 front panel connector
Rear panel ports
2× Wi-Fi antenna connector
1× HDMI
1× RJ-45
2× USB4 (USB-C)
2× USB 3.2 Gen2 (USB 3.1)
3× USB 3.2 Gen1 (USB 3.0)
4× USB 2.0
1× BIOS Flashback button
2× audio jacks
1× optical S/PDIF output
Dimensions
30.5 × 24.4cm
ATX format
