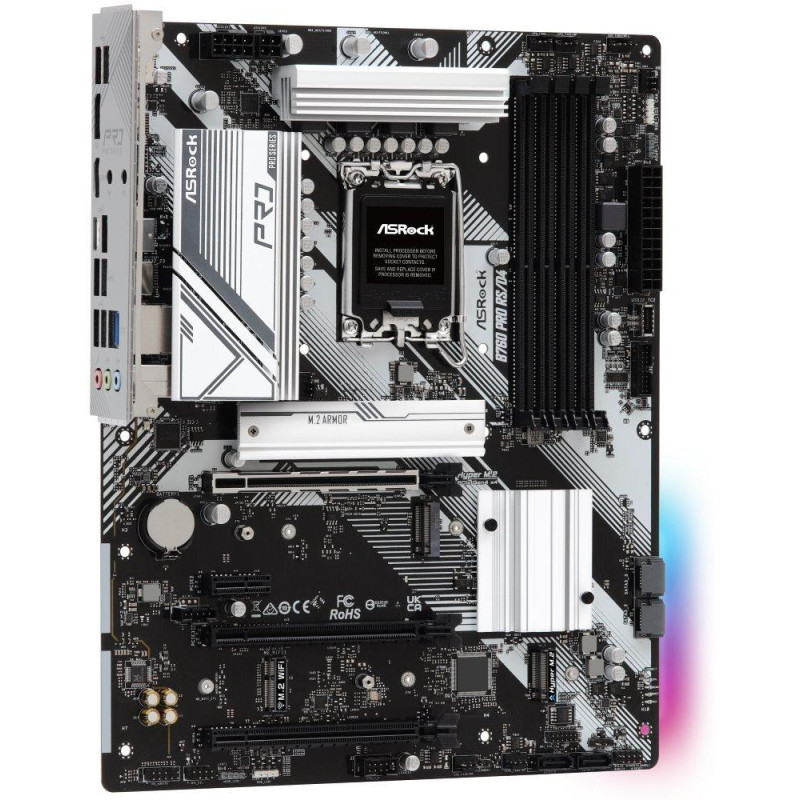

ASRock B760 PRO RS/D4
The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.
CPU
Support for 12th and 13th generation Intel Core/ Pentium/ Celeron processors (LGA1700 socket)
Chipset
Intel B760
Memory
4× DDR4 memory slots, support up to 128 GB
Supports DDR4 up to 5333+ (OC) MHz
Dual-channel memory architecture
Support non-ECC, unbuffered memory
ECC support, no buffering (non-ECC mode)
Intel Extreme Memory Profile (XMP) 2.0 support
Slots
Intel CPU
1× PCIe 4.0 x16 slot
Intel B760 chipset
1× PCIe 4.0 x16 slot (supports x4 mode)
1× PCIe 3.0 x16 slot (supports x1 mode)
1× PCIe 3.0 x1 slot
Graphic arts
1× HDMI port, supporting max. resolution 4K at 60 Hz
1× DisplayPort port, supporting max. resolution 8K at 60 Hz, 5K at 120 Hz
Multi-GPU
AMD CrossFire technology support
Storage
Intel CPU
1× Hyper M.2 slot, M Key, for 2260/2280 type units (PCIe 4.0 x4 mode)
Intel B760 chipset
1× M.2 slot, M Key, for 2260/2280 type units (PCIe 4.0 x2 mode)
1× Hyper M.2 slot, M Key, for 2260/2280 type units (PCIe 4.0 x4 mode)
4× SATA 6Gb/s ports
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA drives
Intel Volume Management Device (VMD) support
USB
1× USB-C 3.2 Gen2 port available via internal USB connector
1× USB-C 3.2 Gen1 (USB 3.0) port on the back panel
7× USB 3.2 Gen1 (USB 3.0) ports (5 ports on the back panel, 2 ports available via internal USB connector)
4× USB 2.0 ports (2 ports on the back panel, 2 ports available via internal USB connectors)
Audio
Realtek ALC897 Codec
7.1 channel High Definition Audio
HIND
1× Dragon RTL8125BG 2.5Gigabit LAN controller
Internal connectors
1× 24pin ATX main power connector
1× 8pin 12V power connector
1× 4pin 12V power connector
1× 4pin CPU fan connector
1× 4-pin CPU fan/water cooling pump fan connector
5× 4-pin chassis fan/water cooling pump fan connector
2× addressable LED strip connector
2× RGB LED strip connector
3× M.2 slots, M Key
1× M.2 slot, E key for Wi-Fi module (not included)
4× SATA 6Gb/s connector
1× USB 2.0 connector (supports 2× USB 2.0 port)
1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1 ports)
1× USB-C 3.2 Gen2 front panel connector
1× SPI TPM connector
1× speaker connector and case opening detection
1× front panel audio connector
1× 5pin Thunderbolt AIC connector (supports ASRock Thunderbolt 4 AIC card)
Rear panel ports
1× HDMI
1× DisplayPort
1× USB-C 3.2 Gen1 (USB 3.0)
5× USB 3.2 Gen1 (USB 3.0)
2× USB 2.0
1× RJ-45
3× audio jacks
Dimensions
30.5 × 24.4 cm
ATX format
