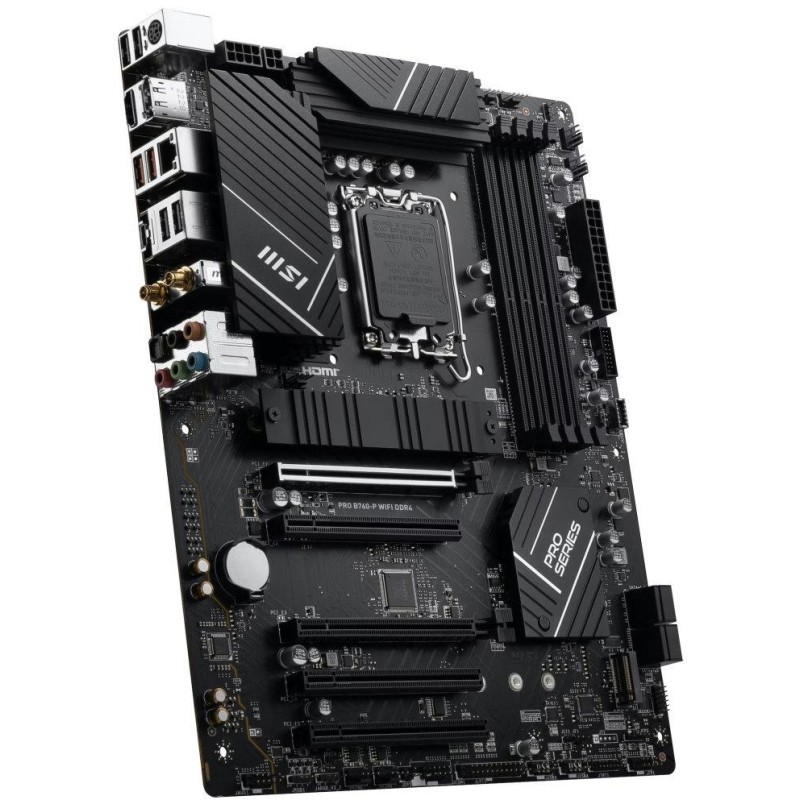

MSI PRO B760-P WIFI DDR4
The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.
CPU
Support for 12th and 13th generation Intel Core/ Pentium/ Celeron processors (LGA1700 socket)
Chipset
Intel B760
Memory
4x DDR4 memory slots, support up to 128 GB
Support DDR4 5333 (OC)/ 5200 (OC)/ 5066 (OC)/ 5000 (OC)/ 4800 (OC)/ 4600 (OC)/ 4400 (OC)/ 4266 (OC)/ 4200 (OC)/ 4000 (OC)/ 3800 (OC)/ 3733 (OC)/ 3600 (OC)/ 3466 (OC)/ 3400 (OC)/ 3333 (OC)/ 3200 (JEDEC)/ 2933 (JEDEC)/ 2666 (JEDEC)/ 2400 (JEDEC)/ 2133 (JEDEC) MHz
Dual-channel memory architecture
Support non-ECC, unbuffered memory
Intel Extreme Memory Profile (XMP) support
Slots
Intel CPU
1x PCIe 4.0 x16 slot
Intel B760 chipset
1x PCIe 4.0 x16 slot
3x PCIe 3.0 x16 slot (supports x1 mode)
Graphic arts
1x HDMI port, supporting max. resolution 4K at 60 Hz
1x DisplayPort port, supporting max. resolution 4K at 60 Hz
Storage
Intel CPU
1x M.2 slot, M Key, for units of type 22110/2280/2260/2242 (PCIe 4.0 x4 mode)
Intel B760 chipset
4x SATA 6Gb/s ports
1x M.2 slot, M Key, for 2280/2260/2242 type units (SATA and PCIe 4.0 x4 mode)
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA drives
USB
8x USB 2.0 ports (4 ports on the back panel, 4 ports available via internal USB connectors)
2x USB 3.2 Gen1 (USB 3.0) ports available via internal USB connector
2x USB 3.2 Gen2 type A port on the back panel
1x USB 3.2 Gen1 Type C port available via internal USB connector
1x USB 3.2 Gen2 Type-C on the back panel
Audio
Realtek ALC897 Codec
7.1 channel High Definition Audio
HIND
1x Realtek RTL8125BG 2.5Gigabit LAN controller
WLAN/Bluetooth
Intel Wi-Fi 6E
Wi-Fi 802.11a/b/g/n/ac/ax
Dual Band (2.4 GHz, 5 GHz, 6 GHz)
MU-MIMO TX/RX support
Data transfer speed up to 2.4 Gbps
Bluetooth 5.3
Internal connectors
1x 24-pin ATX main power connector
1x 8-pin 12V power connector
1x 4-pin ATX 12V power connector
1x 4-pin CPU fan connector
1x 4-pin water cooling pump fan connector
5x 4-pin system fan connector
1x front panel audio connector
2x system panel connector
1x case opening detection connector
1x TPM connector (supports TPM 2.0)
1x serial port connector
1x parallel port connector
1x TBT connector (supports RTD3)
1x Clear CMOS jumper
4x EZ Debug LEDs
1x 4-pin RGB LED connector
2x 3-pin connector A-RAINBOW V2 ARGB LED
2x USB 2.0 connector (supports 4x USB 2.0 port)
1x USB 3.2 Gen1 (USB 3.0) connector (supports 2x USB 3.2 Gen1 port)
1x USB 3.2 Gen1 Type-C connector
Rear panel ports
1x PS/2
4x USB 2.0
1x DisplayPort
1x HDMI
1x RJ-45
2x USB 3.2 Gen2 (USB 3.1 Gen2) type A
1x USB 3.2 Gen2 Type-C
2x Wi-Fi connectorand antennas
5x audio jacks
1x optical S/PDIF output
Dimensions
30.4 x 24.4 cm
ATX format
