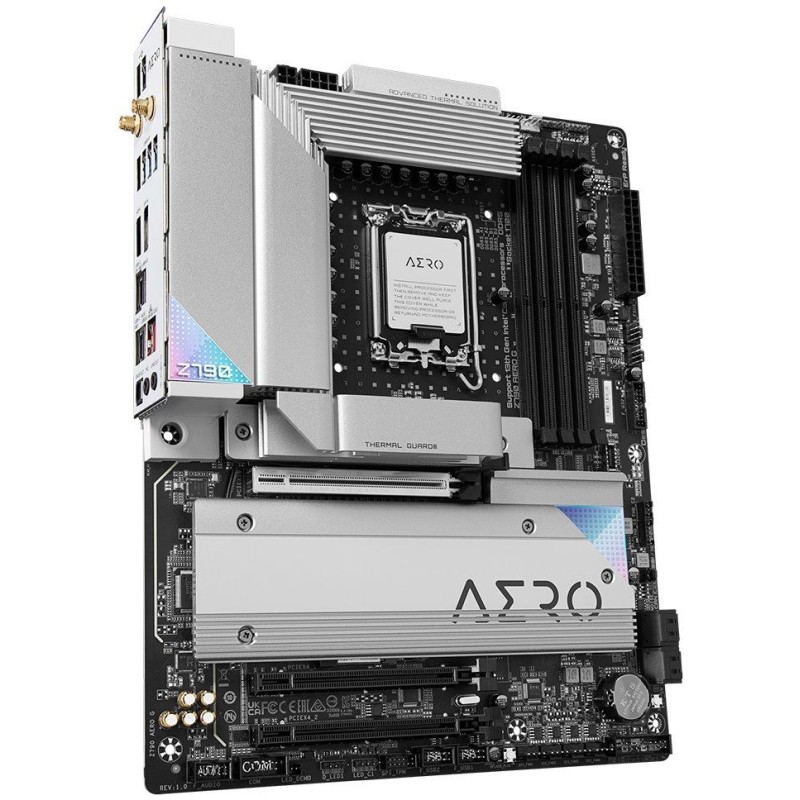

GIGABYTE Z790 AERO G
The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.
CPU
Support for 13th and 12th generation Intel Core/ Pentium Gold/ Celeron processors
LGA1700 socket
Chipset
Intel Z790
Memory
4x DDR5 memory slots, support up to 192 GB
Support DDR5 7600 (OC)/ 7400 (OC)/ 7200 (OC)/ 7000 (OC)/ 6800 (OC)/ 6600 (OC)/ 6400 (OC)/ 6200 (OC)/ 6000 (OC)/ 5800 (OC)/ 5600 (OC)/ 5400 (OC)/ 5200 (OC)/ 4800/ 4000 MHz
Dual-channel memory architecture
Support non-ECC, unbuffered, 1Rx8/2Rx8/1Rx16
ECC memory support (non-ECC mode), 1Rx8/2Rx8
Intel Extreme Memory Profile (XMP) support
Slots
Intel CPU
1x PCIe 5.0 x16 slot
Intel Z790 chipset
2x PCIe 4.0 x16 slot (supports x4 mode)
Graphic arts
1x USB 3.2 Gen2 Type C port, supporting max. resolution 4096 x 2304 at 60 Hz
1x HDMI port, supporting max. resolution 4096 x 2160 at 60 Hz
Multi-GPU
AMD CrossFire technology support
Storage
Intel CPU
1x M.2 slot, M Key, for 2280/25110 type units (PCIe 5.0 x4/x2 mode)
1x M.2 slot, M Key, for 2280/22110 type units (PCIe 4.0 x4/x2 mode)
Intel Z790 chipset
1x M.2 slot, M Key, for 2280/22110 type units (PCIe 4.0 x4/x2 mode)
1x M.2 slot, M Key, for type 2280 units (PCIe 4.0 x4/x2 mode)
1x M.2 slot, M Key, for type 2280 units (SATA and PCIe 4.0 x4/x2 mode)
4x SATA 6Gb/s ports
RAID 0, RAID 1, RAID 5 and RAID 10 support for both SATA and NVMe SSDs
USB
2x USB 3.2 Gen2x2 Type-C ports (1 port on the back panel, 1 port available via internal USB connector)
1x USB 3.2 Gen2 Type-C port on the back panel
2x USB 3.2 Gen2 type A port on the back panel
6x USB 3.2 Gen1 (USB 3.0) ports (4 ports on the back panel, 2 ports available via internal USB connector)
6x USB 2.0 ports (2 ports on the back panel, 4 ports available via internal USB connectors)
Audio
Realtek ALC1220-VB Codec
2/4/5.1/7.1 channel High Definition Audio
S/PDIF output support
HIND
1x Intel 2.5Gigabit LAN controller
WLAN/Bluetooth
Intel Wi-Fi 6E AX211
Wi-Fi 802.11a/b/g/n/ac/ax
Triple Band (2.4 GHz, 5 GHz, 6 GHz)
Data transfer speed up to 2.4 Gbps
Bluetooth 5.3
Internal connectors
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
1x CPU fan connector
1x CPU water cooling fan connector
4x system fan connector
2x system fan/water cooling pump connector
2x addressable LED strip connector
2x RGB LED strip connector
5x M.2 slots, M Key
4x SATA 6Gb/s connector
1x front panel connector
1x front panel audio connector
1x USB 3.2 Gen2x2 type C connector
1x USB 3.2 Gen1 (USB 3.0) connector (supports 2x USB 3.2 Gen1 port)
2x USB 2.0 connector (supports 4x USB 2.0 port)
1x noise detection connector
2x Thunderbolt AIC connector
1x TPM connector (only supports GC-TPM2.0 SPI and GC-TPM2.0 SPI 2.0 modules)
1x serial port connector
1x Q-Flash Plus button
1x Reset button
1x Reset jumper
2x temperature sensor connector
1x Clear CMOS jumper
Rear panel ports
2x Wi-Fi antenna connector
2x USB 2.0
4x USB 3.2 Gen1 (USB 3.0)
1x DisplayPort input
1x HDMI
2x USB 3.2 Gen2 (USB 3.1 Gen2)
1x USB 3.2 Gen2x2 Type-C
1x USB 3.2 Gen2 Type-C
1x RJ-45
1x optical S/PDIF output
2x audio jacks
Dimensions
30.5 x 24.4 cm
ATX format
