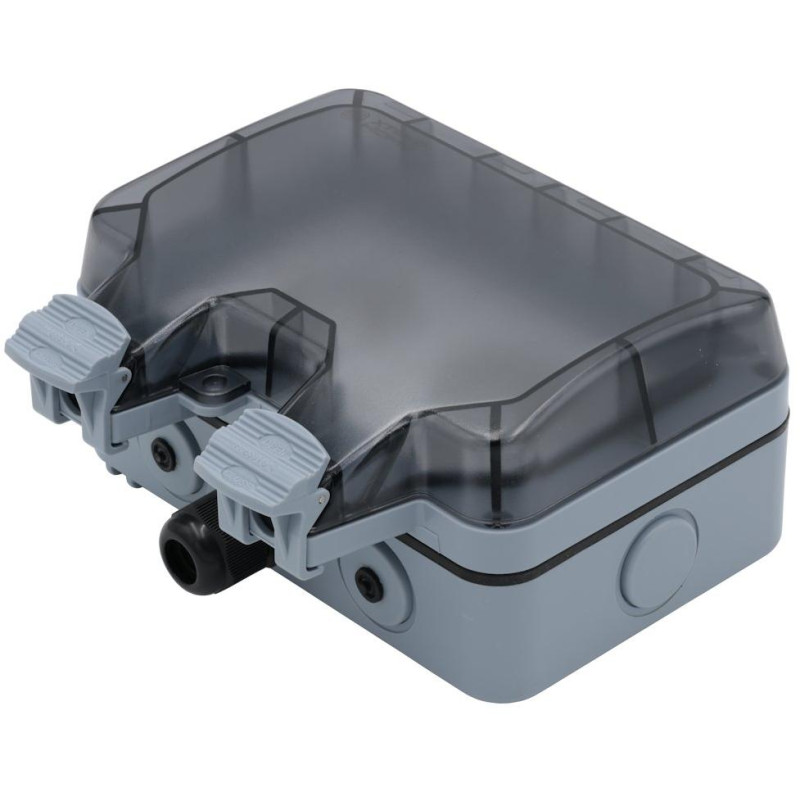

Xtend Home smart outdoor double socket IP66 Smart outdoor Wi-Fi socket , working with the Tuya Smart application, is used to turn on or off electrical devices. It also supports third-party applications such as Alexa voice assistant, Google Home Assistant, Yandex or IFTTT. Simply place the socket anywhere within the radio range of your Wi-Fi access point.
You can create schedules for when it should turn on or off. Each of the sockets has its own schedule . All settings are synchronized with the Tuya Smart application . Internet connection failures have no effect on functionality. All settings are stored in the socket and are synchronized with Tuya Smart when necessary. After disconnecting from the mains, it reconnects to Wi-Fi and synchronizes the settings.
Initial setup is very simple. Simply connect the socket to the power outlet, place it within range of your Wi-Fi network, and then pair it with the Tuya Smart app. Setup is done via your mobile phone or tablet on your local network, and you can then control the device from anywhere in the world.
A mobile phone or tablet with Android or iOS operating system is required for configuration and control. However, there are also waterproof buttons that can be used to control each socket locally .
The socket is waterproof and dustproof , including a PG cable gland. You can place it anywhere in the garden or greenhouse without worrying about a short circuit during rain or watering.
The switching is relay (single-pole), only the L conductors are expanded (the N conductor is permanently connected). The package includes installation material for wall mounting . The cables areare part of.
- Correct phase switching (left socket)
- Dimensions of the drawer itself: 170 × 110 × 85 mm
- Dimensions including cable gland: 170 × 140 × 85 mm
- Mounting hole spacing: 130 × 55 mm
- Cable gland size PG13.5 (designed for cables with a diameter of 7 to 12 mm)
- Maximum height of the plug-in body is 53 mm (+ 20 mm pins), plug cable diameter max. 10 mm
- The flap has a prepared eyelet for a padlock or seal (the diameter of the hole for the padlock or seal is 5 mm)
BASIC SPECIFICATIONS
Supported systems: Android or iOS
Compatibility: works with Tuya Smart enabled devices
Communication: Wi-Fi 2.4 GHz (802.11b/g/n) for internet connection and pairing
Wireless range: approx. 30 m
Power supply: AC 230V (50Hz)
Load: 16 A, 3680 W (total)
Color: gray
Weight: 545g
Dimensions: 170 × 110 × 85 mm
Protection level: IP66
