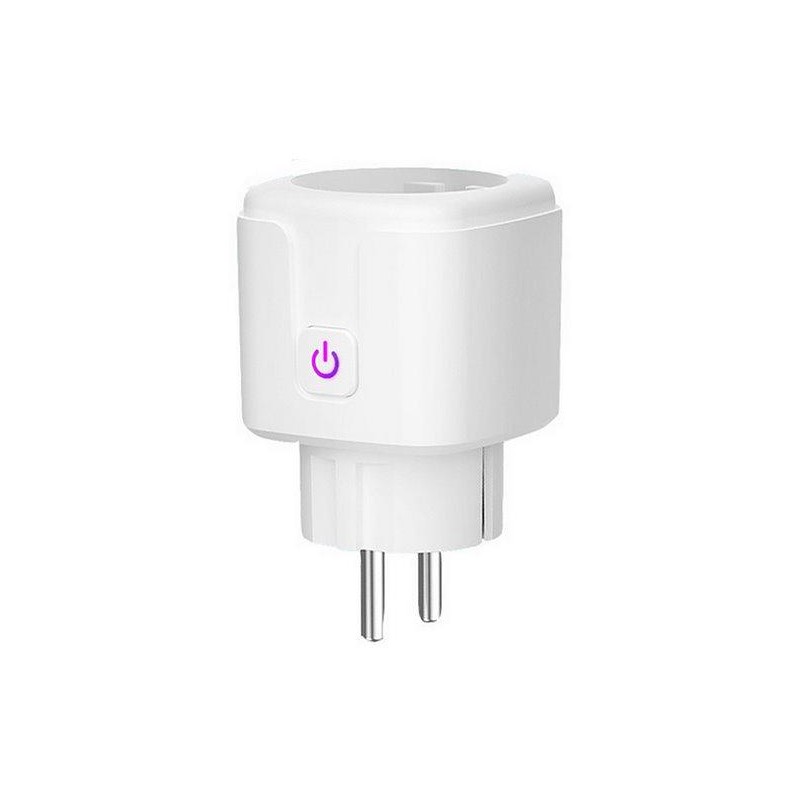

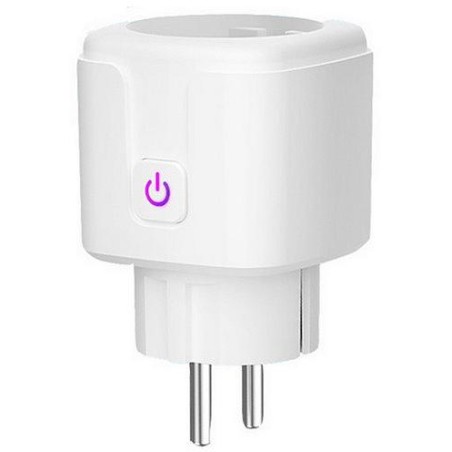

Xtend Solarmi PG01v2
The smart Wi-Fi socket is designed to control electrical appliances up to a maximum load of 16 A (2200 W) remotely from anywhere via the internet.
- Control via MQTT, web and serial interface or HTTP.
- Automation using timers, rules or scripts.
- Integration with home automation solutions.
- Easy upgrade to ESPHome, Homekit, etc.
- Possibility to upgrade firmware.
BASIC SPECIFICATIONS
Number of plugs: 1
Voltage and current: AC 100-240 V (50/60 Hz, max. 16 A)
Wi-Fi standard: 802.11b/g/n
Material: ABS + PC, flame retardant plastic (fire protection grade 94-V0)
Dimensions: 85 x 51 x 51 mm
Weight: 80g
Thanks to the uploaded Tasmota FW, you can control the socket by directly entering the IP address and control command. You do not need any expensive hub or gateway, nor do you have to rely on a cloud service. At the same time, it is ideal in conjunction with e.g. Home Assistant, where you can control and monitor anywhere on the Internet via MQTT.
To turn on, insert the command into the HTML client: ipaddress:port/cm?cmnd=Power 1
To turn it off: ipaddress:port/cm?cmnd=Power 0
You can also replace the status numbers 1 or 0 with the status of the LAN output of the controller, e.g. for the status on OUT1 and if the socket is at the address 192.168.88.123, write on the default port:
192.168.88.123:80/cm?cmnd=Power %44
