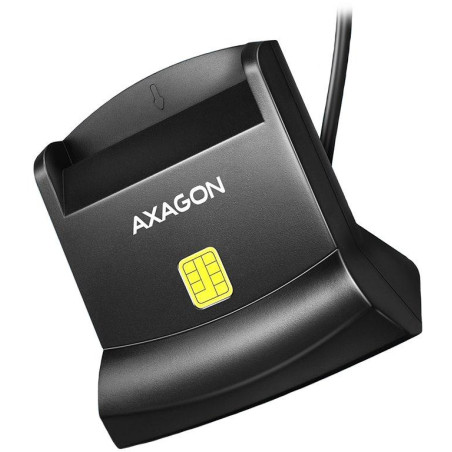

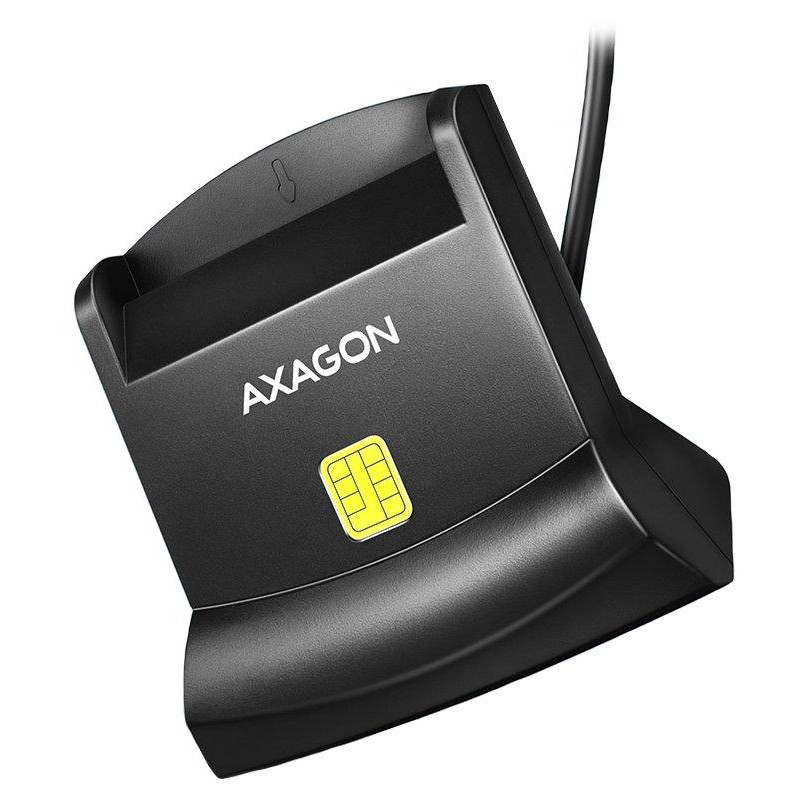

AXAGON contact smart card reader (eCitizen) / CRE-SM4N / USB 2.0 / 1.3m

AXAGON CRE-SM4N

The stand-alone desktop reader supports all common formats of Smart cards, chip cards and other contact cards, including bank payment cards or electronic ID cards. It is fully compatible with the eObčanka application .

The connection is made via a 1.3 m long cable ending in a USB connector.

Note : The reader only supports contact cards that have visible contacts on the surface. RFID cards without contacts cannot be used in the reader.

BASIC SPECIFICATIONS

Interface: USB 2.0

Card support: ATM, CAC, ID, IC, SIS

Supported OS:

Windows XP/ Vista/ 7/ 8/ 8.1/ 10/ 11 and later

Windows Server 2003/ 2008/ 2012/ 2016/ 2019/ 2022 and later

Mac OS X 10.x and above

Linux 2.4.x and higher

Android 8 and above

Dimensions: 77 x 56 x 49 mm

Weight: 82g

Color: black

The reader supports the following card specifications:

•

• contact Smart cards complying with ISO 7816, classes A, B and C (5 V, 3 V and 1.8 V)

• standard ISO 7816, EMV 4.1 (EMV 2000 level 1)

• protocols T=0 and T=1, I2C, SLE 4432/42 (S=10), SLE 4418/28 (S=9)

• PC Smart Card standard PC/SC 2.0

• Microsoft Smart Card for Windows

• I2C cards SLE4418, SLE4428, SLE4432, SLE4442, SLE4436, SLE5536, SLE6636, AT88SC1608, AT45D041

• Microsoft WHQL USB Smart Card Reader compliant

• complies with the requirements of the FIPS 201 standard
