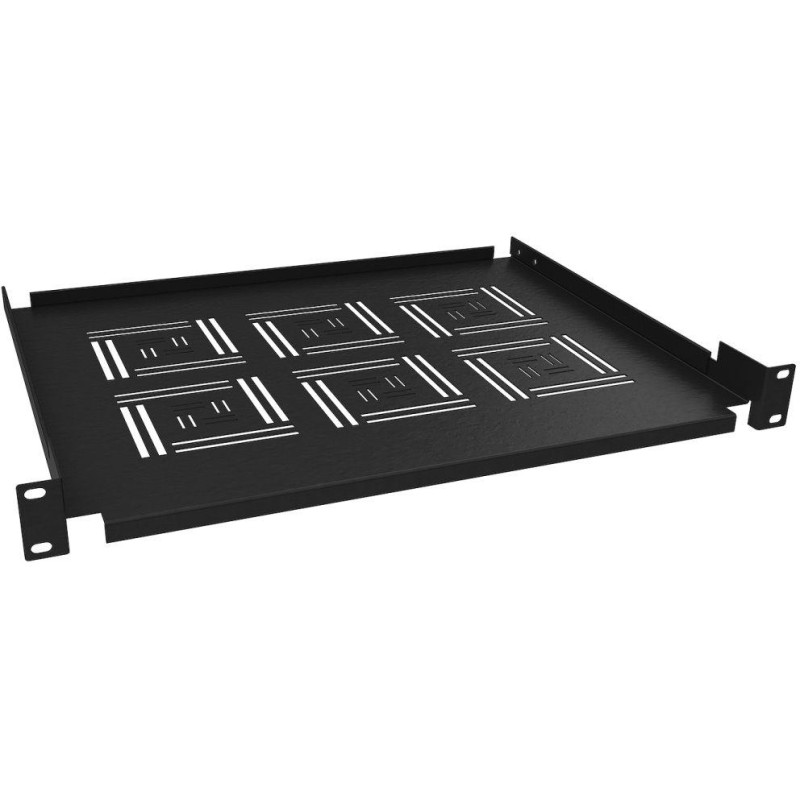

Solarix Shelf 19" 1U 350mm storage tray BK front rail mount UP-03-B

Universal fixed shelf for mounting devices in 19" server racks.

The shelf is primarily intended for placing devices that cannot be directly attached to a 19" frame. With a height of 1U and a depth of 350 mm , it offers sufficient space for common network components, measuring instruments or active elements. The 2-point attachment to the front or rear vertical rail ensures stable mounting with a load capacity of up to 10 kg .

The shelf is made of high-quality material with a powder- coated surface in standard colors RAL 7035 (light gray) or RAL 9005 (black). The perforated bottom allows for effective air circulation and heat dissipation from the placed devices.

BASIC SPECIFICATIONS

Model: UP-03-B/G

Type: fixed shelf

Standard: 19"

Height: 1U

Depth: 350mm

Load capacity: 10 kg

Fixing: 2 points

Design: perforated bottom

Surface treatment: powder technology

Color: RAL 7035 (gray) / RAL 9005 (black)

Catalog number: 80191454 (black), 80191455 (gray)
