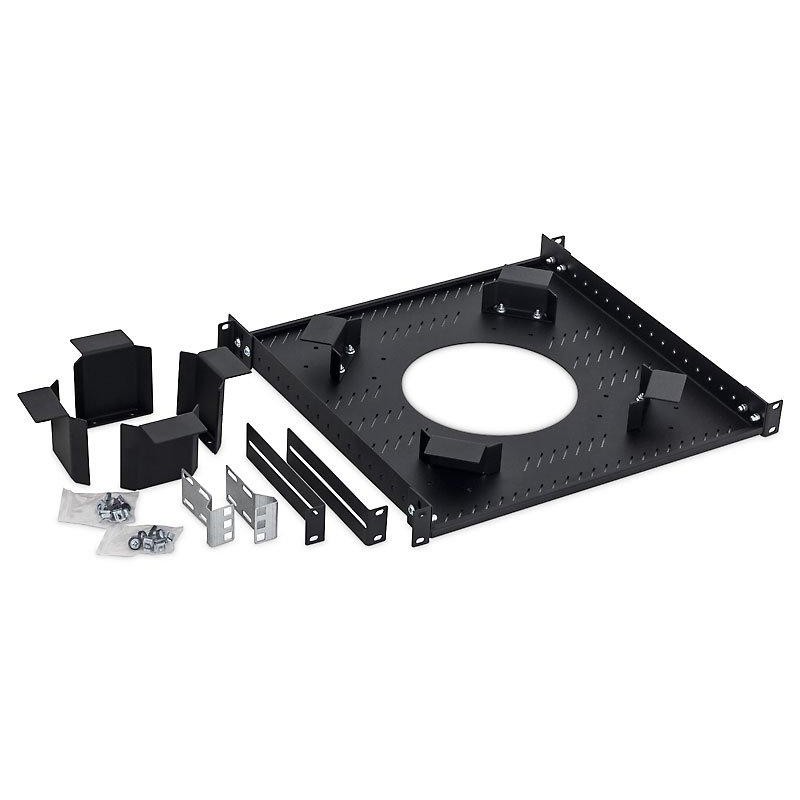

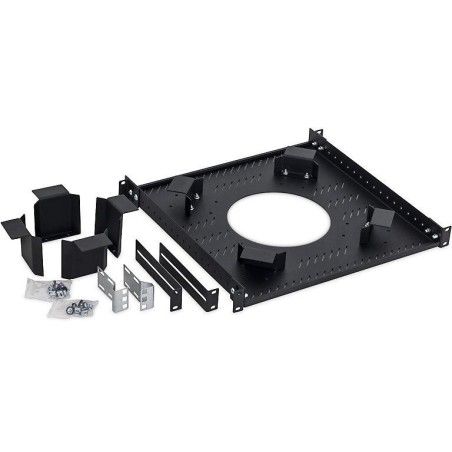

Triton 19" cable reserve shelf 1U RAL9005

Triton 19" cable reserve shelf

The cable reserve holder is used for safe storage of mainly installation metallic and optical cables inside the rack and their protection. The holder can be installed in a vertical position (10U) on 19" vertical rails (usually on the back of the rack), or after turning the handles horizontally between the verticals, similar to a classic shelf. The support pins mounted around the central hole ensure the bending radius of the stored cables and prevent their damage.

BASIC SPECIFICATIONS

Package contents:

1 x cable reserve mounting plate

4 x 1U height support stud

4 x 2U height support studs

4 x mounting plate holder short

2 x mounting plate holder long

2 x center vertical bracket for 19" accessories

2 x mounting kit (4 x cage nut M6, 4 x screw M6x12)

Color: black
