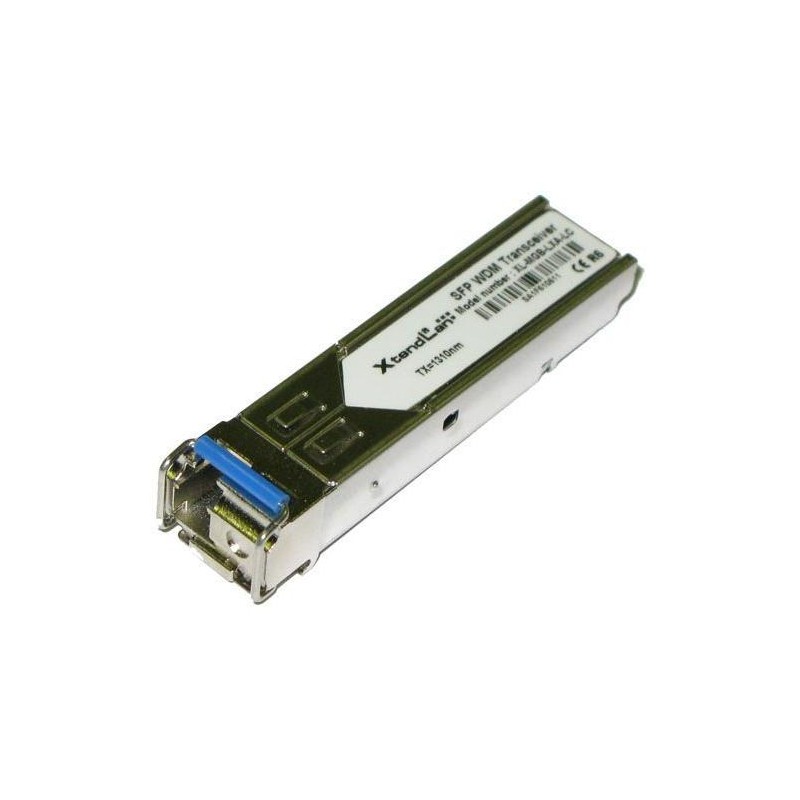

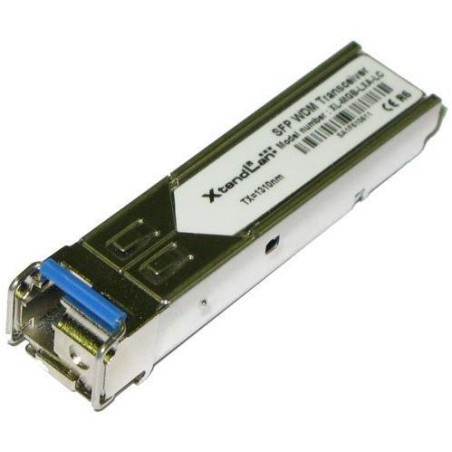

XtendLan MTB-LB10W3327
SFP+ module for 10Gbit Ethernet. LC simplex connector. Single fiber, WDM. Reach 10km on singlemode fiber.
Transmitting wavelength 1330 nm, receiving 1270 nm. Multirate Fiber channel. Support for most manufacturers (Cisco, Dell, Planet, ...)
Conversion 10Gigabit module in the Small-Form-Pluggable (SFP) format. Standard 1000Base-LR/LW, IEEE802.3ae, 10.3125Gbit/s. Simplex LC connector, for singlemode fibers. Expands/converts ports of switches and converters with a slot for SFP+.
We note that thanks to the chosen wavelengths of 1270/1330nm they can coexist on the same fiber with other active technologies that most often use wavelengths of 1310nm, 1490nm, 1550nm. It is also not necessary to significantly consider whether the cable is of type G.652B or G.652C,D because both wavelengths lie sufficiently far from the "water peak" (1383nm).
Support Fiber Channel 10/8/4/2 Gbps.
For connection between WDM modules, it is necessary to combine the TX/RX wavelengths of the counterpart sides, pairs of modules are distinguished by a code representing side A or B.
BASIC SPECIFICATIONS
Module type: SFP+
Connector: LC simplex
Wavelength (transmission/reception): 1330 nm / 1270 nm
Fiber type: Singlemode
Connection range: up to 10 km
Transmission margin: 9 dB
Sensitivity: -14 dBm
Transfer rate: 10.3 Gbps
