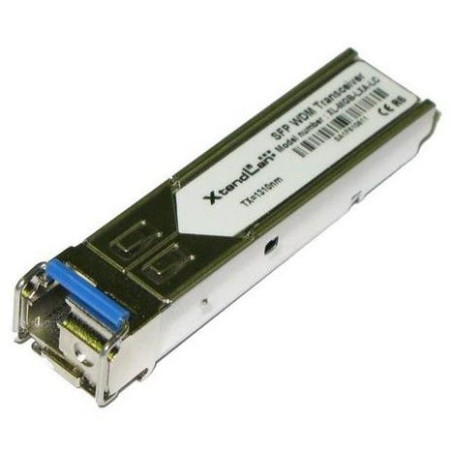

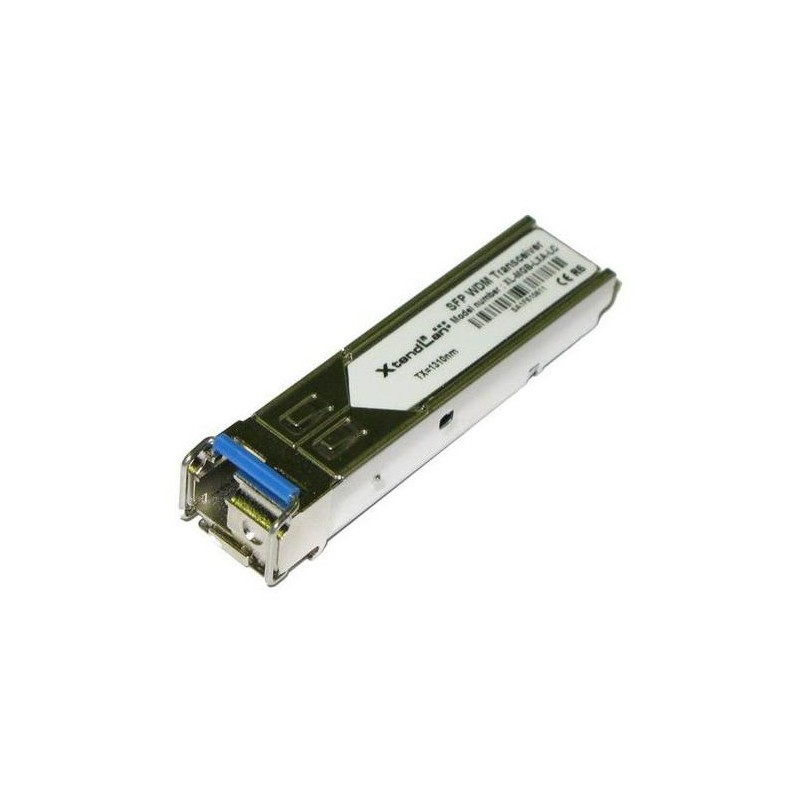

XtendLan MGB-LXBD-LC
Gigabit miniGBIC (SFP) module, 1000Base-LX, simplex LC connector, single-mode, WDM. Range 20km. TX 1550nm/RX 1310nm. DMI diagnostics. Cisco, Dell, Planet compatible.
Gigabit miniGBIC conversion module in Small-Form-Pluggable (SFP) format. Standard 1000Base-LX, IEEE82.3z. Simplex LC connector, for single-mode fibers. Can also be used for multimode fibers, but with a range of up to 1km. Allows bidirectional communication over a single optical fiber. Expands/converts ports of switches and converters with a position for miniGBIC (SFP).
It is equipped with a Digital Monitoring Interface (DMI), and switches and converters equipped with support for this feature are able to diagnose the optical signal amplitude and other operating parameters of this interface.
For connection between WDM modules, it is necessary to combine the TX/RX wavelengths of the counterpart sides, pairs of modules are distinguished by a code representing side A or B.
BASIC SPECIFICATIONS
Module type: SFP
Connector: LC simplex
Wavelength (transmission/reception): 1550 nm / 1310 nm
Fiber type: Singlemode up to 20km, Multimode up to 1km
Connection range: up to 20 km
Transmission margin: 12 dB
Sensitivity: -21dBm
Transmission speed: 1 Gbps
