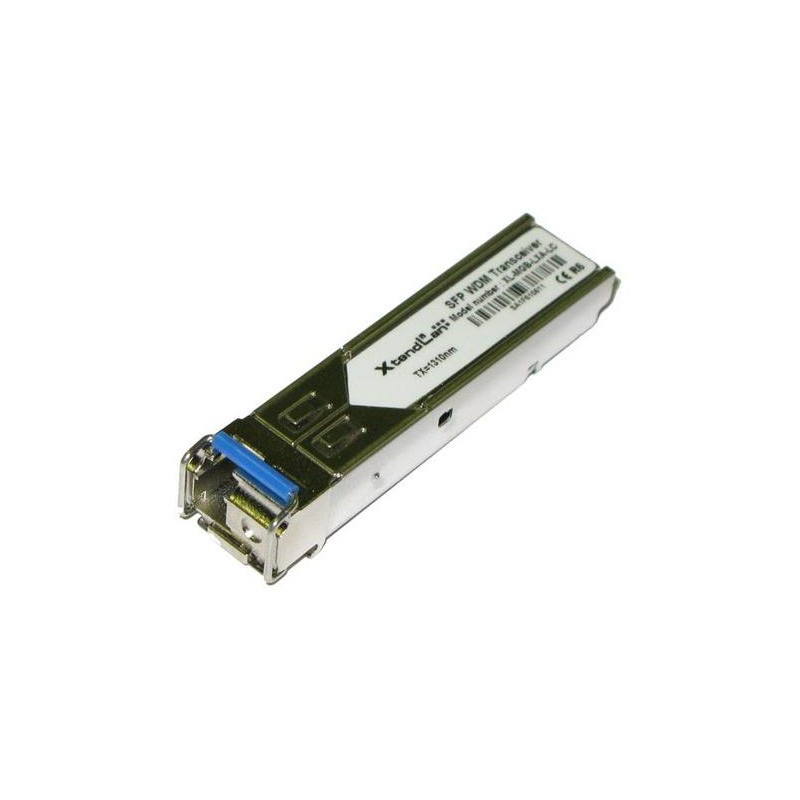

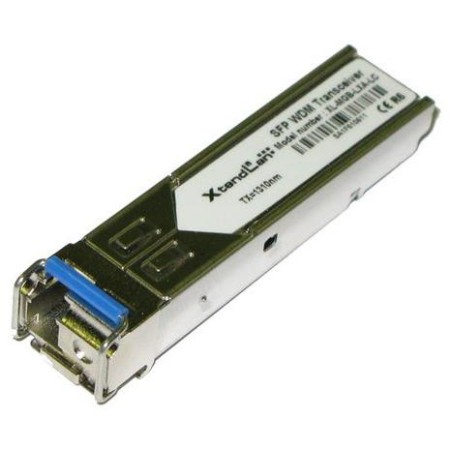

XtendLan MGB-LXB-LCvH
Gigabit miniGBIC (SFP) module, 1000Base-LX, simplex LC connector, single-mode, WDM. Range 20km. TX 1550nm/RX 1310nm. HP compatible.
Conversion Gigabit miniGBIC module in Small-Form-Pluggable (SFP) format. Standard 1000Base-LX, IEEE82.3z. Simplex SC connector, for single-mode fibers. Can also be used for multimode fibers, but with a range of up to 1km. Allows bidirectional communication over a single optical fiber.
Recommended for HP 5130EI, 3800, 3100EI, 3100-48, 2920, 2620, 2530G, 2530, 1920, 1910, 1820, 1810, 1410 series.
Expands/converts ports of switches and converters with a miniGBIC (SFP) slot.
For connection between WDM modules, it is necessary to combine the TX/RX wavelengths of the counterpart sides, pairs of modules are distinguished by a code representing side A or B.
BASIC SPECIFICATIONS
Module type: SFP
Connector: SC simplex
Wavelength (transmission/reception): 1550 nm / 1310 nm
Fiber type: Singlemode up to 20km, Multimode up to 1km
Connection range: up to 20 km
Transmission margin: 12 dB
Sensitivity: -21 dBm
Transmission speed: 1 Gbps
