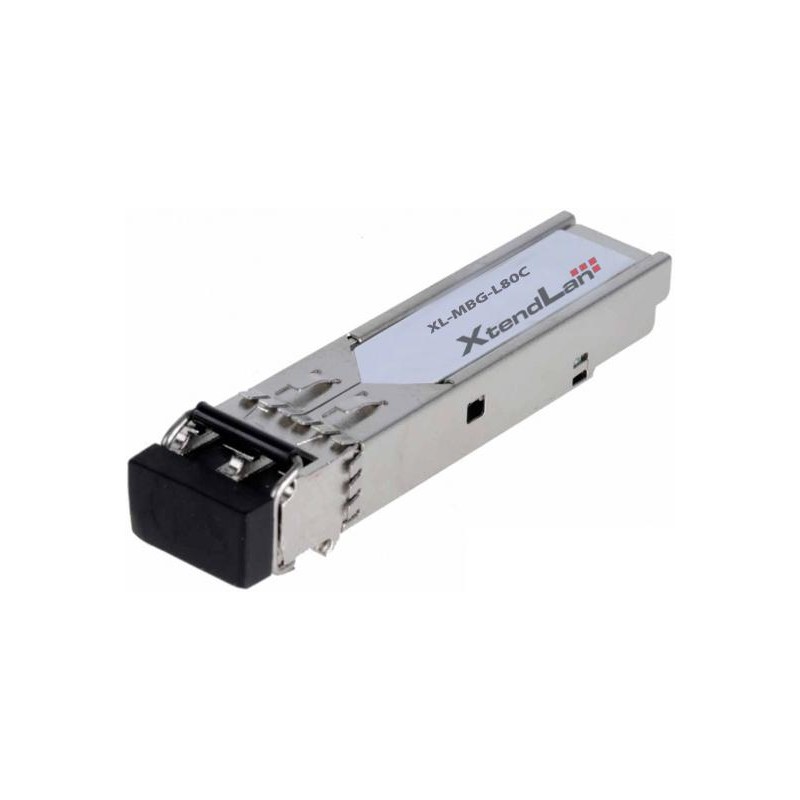

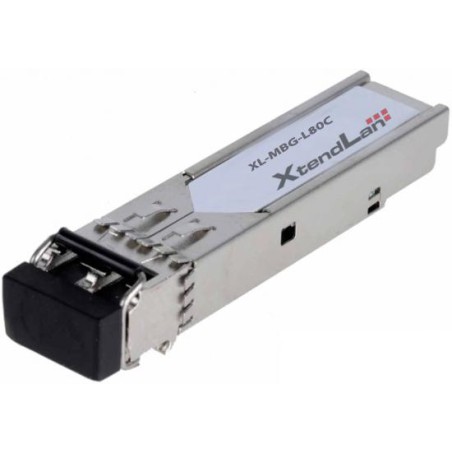

XtendLan MGB-L80C53
Gigabit miniGBIC (SFP) module, 1000Base-LX, duplex LC connector, single-mode. Range 80km. Designed for CWDM systems, wavelength 1530nm. Performance margin at least 28dB. Support for most manufacturers (Cisco, Dell, Planet, ...)
Conversion Gigabit module miniGBIC Small-Form-Pluggable (SFP). Standard 1000Base-LX, IEEE82.3z. Duplex LC connector, for single-mode fibers.
CWDM modules allow multiple wavelengths to be transmitted over an optical fiber (or one pair of fibers). Each module operates at a different wavelength with a spacing of 20nm. Optical signal combining and splitting is performed on a passive optical splitter/combiner.
The module itself is installed in any switch with miniGBIC (SFP) ports. For example: GSW-2400, FGSW-4840S, SGSW-2620, WGT/GT-705A, ENW-9607M.
Reliable for a distance of 80km.
When using taps, subtract the insertion and tap attenuation.
BASIC SPECIFICATIONS
Module type: SFP
Connector: LC duplex
Wavelength: 1530 nm
Fiber type: Singlemode
Connection range: up to 120 km
Transmission margin: 28 dB
Sensitivity: -24 dBm
