TP-Link TL-SM5110-SR SFP module 10Gbase-SR SFP+ LC, MM, Trans. 300m

TP-Link TL-SM5110-SR

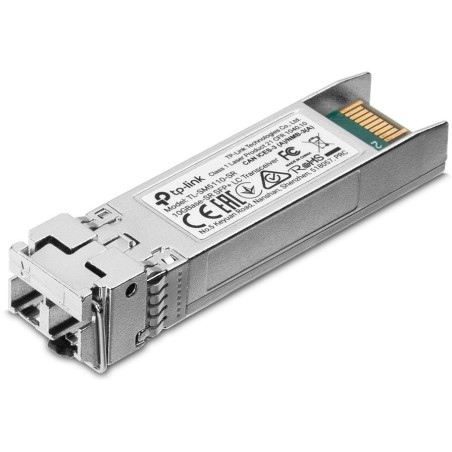

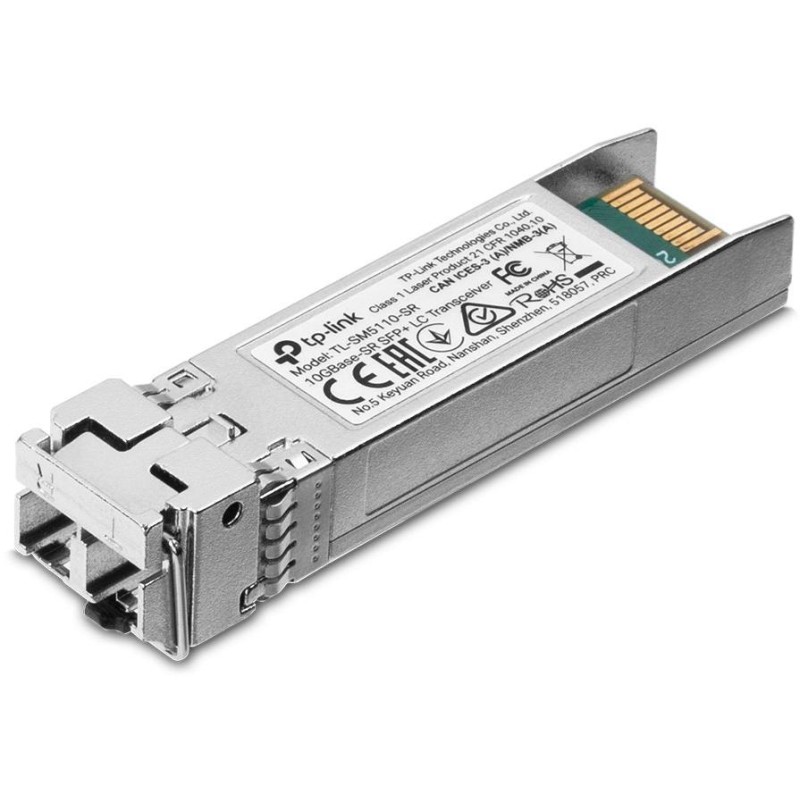

The TL-SM5110-SR SFP+ module is designed to extend the transmission distance based on 10 Gbit/s Ethernet connectivity. It is a high-performance 10G Base-SR transceiver for multimode (MM) optical fibers with a wavelength of 850 nm and LC connectors . It supports full-duplex, 10G Ethernet connections up to 300 m using 50/125 µm OM3 fiber optic cables or up to 33 m using 62.5/125 µm OM1 fiber.

•

• 10G SFP+ transceiver for multi-mode fibers (multi-mode)

• Hot-pluggable, maximum flexibility

• Supports digital diagnostics (DDM) function

• Compliant with the 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA) standard

• Compatible with switches featuring 10G SFP+ ports (e.g. JetStream TL-SG3428X, TL-SG3428XMP, TL-SG3452X, TL-SG3452XP, TL-SX3206HPP, TL-SX3008F, TL-SX3016F, etc.)


It also features Digital Diagnostic Monitoring ( DDM ) that complies with the SFF-8472 standard and supports real-time monitoring of the transceiver.

BASIC SPECIFICATIONS

Format: SFP+

Speed: 10Gbps

Type: multi-mode

Distance: max. 300 m

Tx/Rx: 850nm

Connector: 2× LC/UPC
