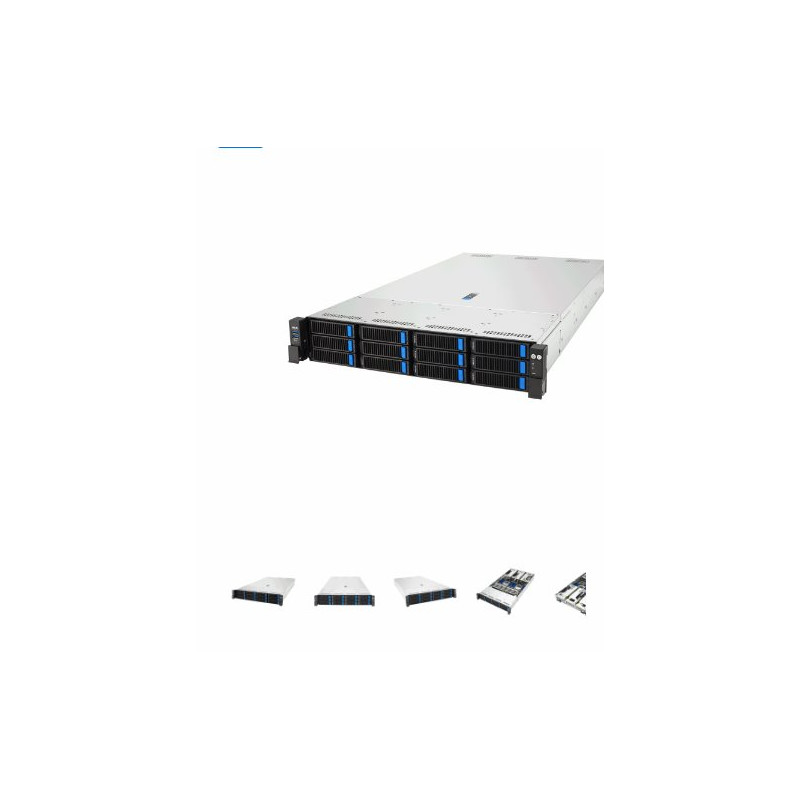

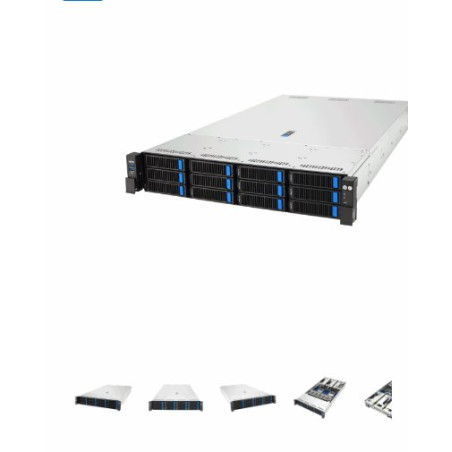

ASUS RS720A 2U Server 2XSP5,24x DDR5 ECC. 12xHS HDD ,10G,12NVMe/OCP,IPMI

Processor / System Bus

2 x Socket SP5 (LGA 6096P)
AMD EPYC™ 9005 processors (Up to TDP 400W)
*TDP support by configuration.
Generation

E13
Memory

Total Slots :
24 (12-channel per CPU, 1 DIMM per CPU)
Capacity :
Total Maximum up to 3072GB
Memory Type :
DDR5 6400/5600 RDIMM/ 3DS RDIMM
Memory Size :
128GB, 96GB, 64GB, 32GB RDIMM
128GB, 96GB, 64GB, 32GB 3DS RDIMM
* Refer to www.asus.com/support for more information
Expansion Slots

Total 10 expansion slots
6 x PCIE Gen5 x8 or 3 x PCIE Gen5 x16 (FHFL)
2 x PCIE Gen5 x16 (FHHL)
2 x OCP3.0 Gen5 x16 (SFF)
Drive Bays

12 x 2.5"/3.5” hot-swap drive bays
-Config 1: 12NVMe
-Config 2: 4SATA/SAS* + 8NVME/SATA/SAS*

*HBA/ RAID card is required to support SAS hard drives
System Fan

6
Networking

1 x Management Port
Graphic

Aspeed AST2600 64MB
Front I/O Ports

2 x USB 3.2 Gen1 ports
Rear I/O Ports

2 x USB 3.2 Gen1 ports
1 x Mini-DP port
1 x RJ-45 Management LAN port
1 x Debug port
Switch/LED

Front Switch/LED:
1 x Power Switch w/ LED
1 x Reset Switch
1 x Location Switch w/ LED
1 x HDD Access LED
1 x Message LED
Rear Switch/LED:
1 x Power Switch w/ LED
1 x Location Switch w/LED
1 x Message LED
OS Support

Please find the latest OS support from https://servers.asus.com/support/os
Management Solution

On-Board ASMB12-iKVM for KVM-over-IP
ASUS Control Center Enterprise (Classic C)(Optional)
Regulatory Compliance

BSMI, CE, CB, RCM, FCC(Class A), ISED
Dimensions

822.16(L) x 484.65(W) x 87.3(H) mm
32.37(L) x 19.08(W) x 3.44(H) inch
Form Factor

2U
Weight

Net Weight : 17.82KG
Gross Weight : 21.34KG
Power Supply

1+1 Redundant 80 PLUS 3200W Titanium PSU
1+1 Redundant 2700W Titanium PSU

Rating:
100-120V~/220-240V~, 16A (x2), 50/60Hz
100-127V~/220-240V~, 12A/16A (x2), 50-60Hz
Environment

Operation temperature: 10? ~ 35?
Non operation temperature: -40? ~ 60?
Non operation humidity: 20% ~ 90% (Non condensing)
Optional Items

Security:
Dual BMC Module (default)
TPM Module (MUST bundle with ASUS server while placing order if required.)

Accessory:
2U Front Bezel
1.5U Height Full Extension Ball bearing Type Rail Kit
Cable arm (Please consult sales if required.)
Note

*SAS support only from SAS HBA/RAID Card
CPU Heatsink/ Cooler

2 x 2U EVAC Heatsink
FRU Part List

Motherboard: 90SB0D10-M1XBN0
Front Panel Board: 90SC0SQ0-M0XBN1
Backplane: 90SC0SR0-M0XBN1
Riser Card 2-Slot (Slot1/2 or 3/4): 90SC0SL0-M0XBN1
Riser Card 2-Slot (Slot 5/6): 90SC0SM0-M0XBN1
Riser Card 1-Slot (Slot 7 or 9): 90SC0SP0-M0XBN1
DC-SCM Board: 90SC0SI0-M2XBN1
Fan Board: 90SC0SU0-M0XBN1
SKU2 SATA/SAS Cable (BAY1-8): 90SKS000-MPEAN0
SKU2 SATA/SAS Cable (BAY9-12): 90SKS000-MPFAN0
SKU1 NVMe Cable (BAY1-2): 90SKS000-MPLAN0
SKU1 NVMe Cable (BAY3-4): 90SKS000-MPMAN0
SKU1 NVMe Cable (BAY5-6): 90SKS000-MPNAN0
SKU1 NVMe Cable (BAY7-8 or 9-10 or 11-12): 90SKS000-MPPAN0
3.5" HDD Tray: 90SKH000-MPRBN0
2U CPU EVAC HS: 90SKS000-MPZAN0
PSU CRPS 3200W Titanium//DELTA: 90SKS000-MMCBN0
PSU CRPS 2700W Titanium//DELTA: 90SKS000-MM2BN0
1.5U Full Extension Slide Rail: 90SKR000-M07AN0
R2P-B Cable Arm: 90SKS000-M23AN0
