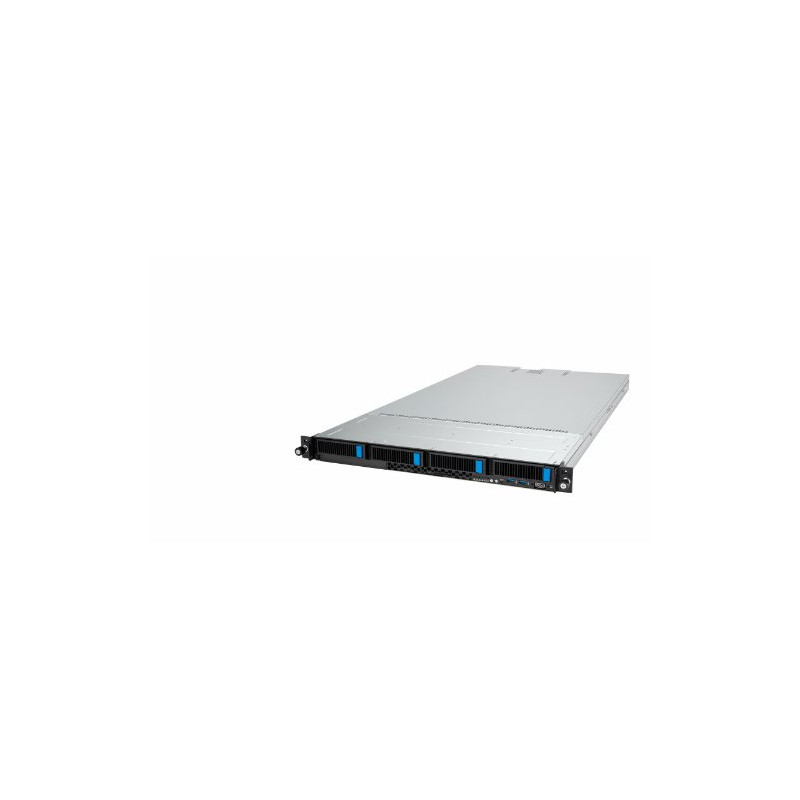

ASUS 1U RS501A-E12-RS4, 1xSP5 (LGA 6096) 24xDDR5 4xSATA/NVME/OCP/2x1G LAN/1,6KW

1 x Socket SP5 (LGA 6096)

5th Generation AMD EPYC Processors or 4th Generation AMD EPYC Processors

AMD EPYC™ 9005/9004 Series Processors (Air cool with EVAC up to 360W)

24 x DIMM slots



with AMD EPYC™ 9005 series processors

DDR5 6400/5600 RDIMM/3DS RDIMM

Maximum 3,072GB

2DPC (1 of 2) up to 5200 with "6400 RDIMM", other 4800

2DPC (2 of 2, 1R+1R ) up to 4400, with "6400 RDIMM", other 4000

2DPC (2 of 2, 2R+2R ) up to 4000, with "6400 RDIMM", other 3600



with AMD EPYC™ 9004 series processors

DDR5 4800 RDIMM/ 3DS RDIMM

Maximum 3,072GB

2DPC (1 of 2) up to 4800,

2DPC (2 of 2, 1R+1R ) up to 4000

2DPC (2 of 2, 2R+2R ) up to 3600





* Refer to support page for more information

Up to 3 PCIe Gen5 slots + 1 OCP3.0

1 x PCIe x16 slot (Gen5 x16 link, FH, HL)

1 x PCIe x16 slot (Gen5 x16 link, LP, HL)

1 x PCIe x16 slot (Gen5 x8 link, LP, HL)

1 x OCP3.0 socket (Gen5 x16 link)

Storage Controller :

CPU Integrated

Optional kits Controller :

ASUS PIKE II 3008-8i 8-port SAS 12G HBA card

Front bays:

4 x 3.5"/2.5” Hot-swap Storage Bays

4 x NVMe/SATA/SAS



*MCIO CABLE is required to support

  NVMe hard drives

*SAS support only from optional SAS

  HBA/RAID card



2 x M.2 connectors

1 x Dual Port Intel I350-AM2 GbE LAN Controller

1 x Management Port

Up to 2 single-slot GPU cards

Please find the latest GPU support from https://servers.asus.com/support/GPU

2 x USB 3.2 Gen1 ports

1 x VGA port

2 x USB 3.2 Gen1 ports

1 x VGA port

1 x Management port

2 x 1GbE LAN ports

Front:

1 x Power Button/LED

1 x Location Button/LED

1 x Message LED

1 x HDD LED

4 x LAN LED (1-2 for on-board LAN, 3-4 for OCP LAN)

Rear:

1 x Port80 LED (Q-Code)

1 x Power Button/LED

1 x Location Button/LED

1 x Message LED

Please find the latest OS support from https://servers.asus.com/support/os

ASUS Control Center

ASUS ASMB11-iKVM (on-board)

BSMI, CB, CE, RCM, FCC(Class A), ENERGY STAR®

842.5mm x 449mm x 43.85mm (1U)

33.17" x 17.68" x 1.73"

1U

(approximate)

Net Weight: 13.15 kg

Gross Weight: 18.15 kg

1+1 Redundant 1600W 80 PLUS Titanium

Power Supply

1+1 Redundant 1200W 80 PLUS Platinum

Power Supply

Operating temperature: 10°C – 35°C

Non operating temperature: -40°C – 70°C

Non operating humidity: 20% – 90% (Non condensing)



Note

Operating Temperature based on configurations

Rail Kit:

Tool-less Friction Rail Kit

1.2m Half Extension Ball bearing Type Rail Kit

1m Half Extension Ball bearing Type Rail Kit

1U Height Full Extension Ball bearing Type Rail Kit

*Please consult sales if cable arm needed.

1U Front Bezel

Certain high TDP CPUs may be supported only with specific conditions. Please contact ASUS Technical Support for additional information and Thermal solution about specialized system optimization.
