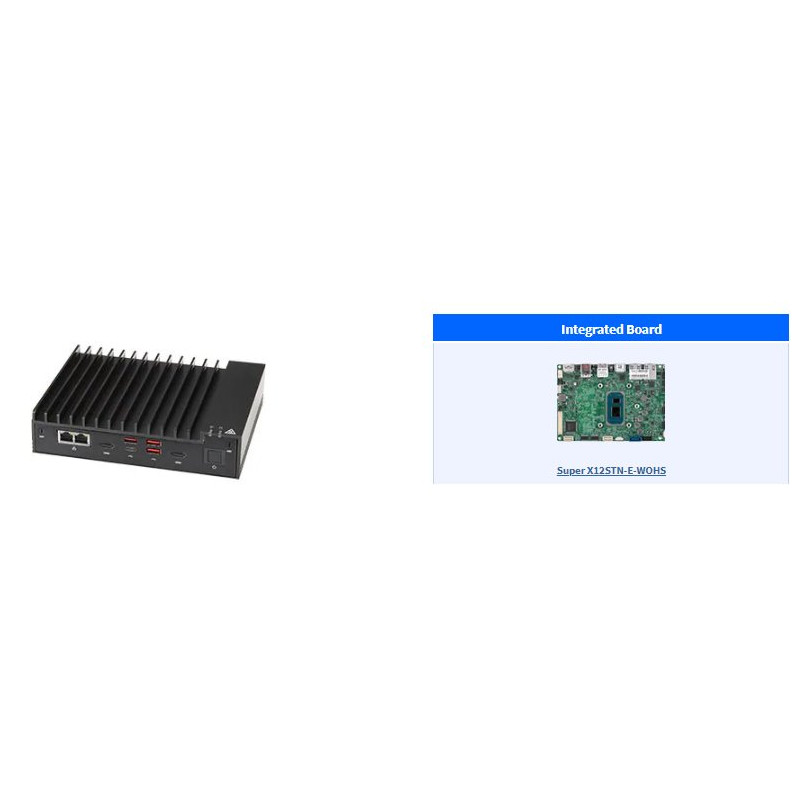

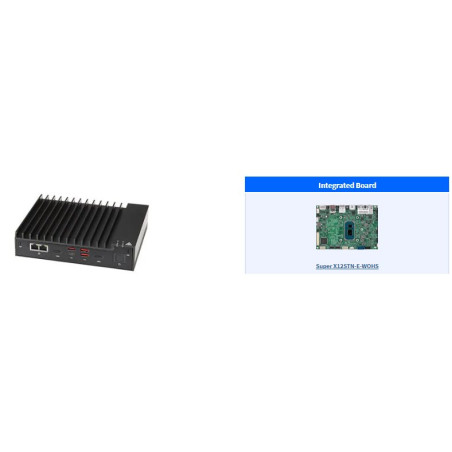

SUPERMICRO mini serverFanless CSE-E101-03 + X12STN-E-WOHS
  • SUPERMICRO mini serverFanless CSE-E101-03 + X12STN-E-WOHS

SUPERMICRO mini serverFanless CSE-E101-03 + X12STN-E-WOHS

SRSYSE10012TE
Supermicro
Grade
Write your review
€1,186.11
Tax included
€980.26 Tax excluded
i
The amount of VAT applied is 21% for the country Czechia.
To order
Quantity
Out of stock

Ask about the product on WhatsApp


Business terms and conditions



Delivery policy



Return policy

help_outlineProduct inquiry by email
Description




Key Features


1. 11th Generation Intel® Core™ i5-1145GRE

    Processor; Single Socket FCBGA-1449



2. System-on-Chip



3. M.2: B-Key, M-Key, E-Key

    M.2 2242/3042/2280 B-Key (USB3.0/2.0, SATA Gen3/PCI-E Gen3 x1) with nano SIM holder M.2 2230 E-Key (CNVi/PCI-E 3.0 x1/USB2) M.2 2242/2280 M-Key (PCI-E 4.0 x4), NVMe support



4. Up to 64GB Unbuffered Non-ECC

    SO-DIMM DDR4 3200MHz; 2 DIMM slots



5. Dual 2.5GbE LAN w/ Intel I225-IT



6. 4 COM (RS-232/422/485), 3 USB 3.2, 1 USB-C 3.2, 4 USB 2.0, 1 DIO via DB9



7. 1 HDMI 2.0b (4K60Hz), 1 HDMI 1.4b



8. -30°C to 50°C Operating Temperature



9. Lockable 12V DC 84W power adapter



10. Hailo-8™ powerful and efficient Edge AI solution integration ready




Product SKUs

SYS-E100-12T-E

  • SuperServer E100-12T-E (Black)


Motherboard



Super X12STN-E-WOHS


Processor/Cache

CPU

  • 11th Generation Intel® Core™ i5-1145GRE Processor
  • Single Socket FCBGA-1449
  • System-on-Chip
  • CPU TDP support up to 12/15/28W
Note BIOS version 1.1 or above is required


System Memory

Memory Capacity

  • Up to 64GB Unbuffered non-ECC SO-DIMM, DDR4-3200MHz, in 2 DIMM slots
Memory Type

  • DDR4 up to 3200MHz
DIMM Sizes

  • 32GB, 16GB, 8GB, 4GB
Memory Voltage

  • 1.2V


On-Board Devices

Chipset

  • System on Chip
Network Controllers

  • Dual 2.5GbE LAN with Intel® I225-IT
Audio

  • ALC 888S HD Audio
Video

  • Intel® Xe Graphics


Input / Output

USB

  • 3 USB 3.2 ports, 1 USB-C 3.2 port, 4 USB 2.0 ports
Video Output

  • 1 HDMI 2.0b (4K60Hz), 1 HDMI 1.4b
COM Port

  • 4 COM ports: 2 RS232, 2 RS232/422/485, RS-485 supports auto flow control
Audio

  • 1 HD Audio header

    (Mic-in/Line-Out) [optional]
Others

  • 8-bit configurable GPIO via DB9









Chassis

Form Factor

  • 3.5" SBC
Model

  • CSE-E101-03


Dimensions

Width

  • 7.68" (195mm) / 11.81" (300mm) - pkg.
Height

  • 1.73" (44mm) / 5.12" (130mm) - pkg.
Depth

  • 5.94" (150mm) / 11" (279mm) - pkg.
Weight

  • Gross Weight: 4.5 lbs (2.04 kg)
  • Net Weight: 2.65 lbs (1.2 kg)
Available Colors

  • Black


Front Panel

Buttons

  • Power On/Off button
LEDs

  • Power LED and Hard drive activity LED


Expansion Slots

M.2

  • Key: B-Key, M-Key, E-Key
  • M.2 2242/3042/2280
  • B-Key (1 USB 3.0/2.0, 1 SATA Gen3) with nano SIM holder
  • E-Key (CNVi/PCI-E 3.0 x1/USB2) M.2 2242/2280
  • M-Key (PCI-E 4.0 x4), NVMe support


System Cooling

Fans

  • Fan-less design


Power Supply

Lockable 12V DC 84W power adapter


System BIOS

BIOS Type

  • AMI UEFI


Management

Software

  • SuperDoctor® 5
  • Watch Dog
  • vPro
  • AMT
Power Configurations

  • +12V ~ +24V DC Wide power range input
  • ACPI Power Management
  • Control of power-on for recovery from AC power loss
  • Force Power On by Jumper
  • CPU thermal trip support for processor protection


Operating Environment / Compliance

RoHS

  • RoHS Compliant
Environmental Spec.

  • Operating Temperature:

    -30°C ~ 50°C (-22°F ~ 122°F) with 0.7 m/s air flow. The use of industrial grade wide-temperature peripherals is required to meet 50°C operating temperature.
  • Non-operating Temperature:

       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:

       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:

       5% to 95% (non-condensing)
  • Operational Vibration, IEC 60068-2-64, 5 Grms, random, 5~500 Hz, 1hr/axis
  • Operational Shock, IEC 60068-2-27, 30G, half sine, 11ms






Parts List





Parts List - (Items Included)

  Part Number Qty Description
Motherboard / Chassis MBD-X12STN-E-WOHS


CSE-E101-03		 1


1		 Super X12STN-E-WOHS Motherboard


Fanless Enclosure for 3.5" motherboard
Power Adapter MCP-250-10137-0N 1 84W, Locable AC to DC adapter without power cord - EN62368



Product Details
Supermicro
SRSYSE10012TE
672042459766
