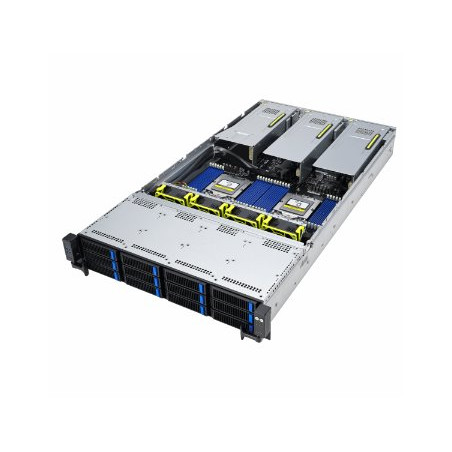

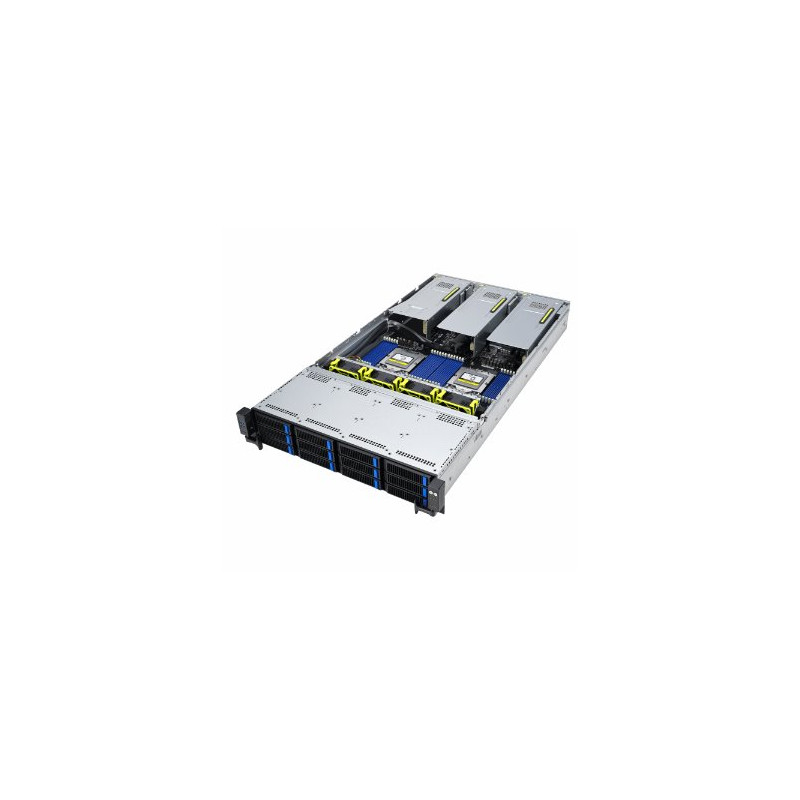

ASUS 2U server 2x SP5, 24x DDR5 ECC R, 24x 2,5NVMe/8xSATA/SAS, 2x 10Gb LAN, 2x 2600Wt, IPMI GPU

2 x Socket SP5 (LGA 6096)

AMD EPYC™ 9004 Series (up to 400W)

4th Generation AMD EPYC Processors with AMD 3D V-Cache technology

*Please consult sales for more details.

E12

Total Slots :

24 (12-channel per CPU, 1 DIMM per CPU)

Capacity :

Maximum up to 3072GB per socket

Memory Type :

DDR5 4800/4400 RDIMM/ 3DS RDIMM

Memory Size :

128GB, 64GB, 32GB RDIMM

128GB, 64GB, 32GB 3DS RDIMM

* Refer to www.asus.com/support for more information

Up to 9 PCIe Gen5 slots + 1 x internal RAID slot

6 x PCIe Gen5 x8 or 3 x PCIe Gen5 x16 (FHFL)

2 x PCIe Gen5 x8 or 1 x PCIe Gen5 x16 or 1 x OCP3.0 (FHFL)

1 x PCIe Gen5 x16 (LPHL)

1 x PCIe Gen4 x8 (LP, internal)

*Installing GPU cards will occupy expansion slots.

*GPU SKU do not support OCP3.0.

*RAID/PIKE cable kit required for internal slot support.

SATA Controller :

8 x SATA 6Gb/s ports

2 x M.2 connectors (SATA 6Gb/s & PCI-E Gen4 x4 link)

SAS Controller :

Braodcom HBA CARD 9500-16i (Optional)

Broadcom MegaRAID 9540-8i (Optional)

Broadcom MegaRAID 9560-16i (Optional)

Front Bays:

12 x 3.5" Hot-Swap drive bays

Support up to 4NVMe/SAS* + 4NVMe/SATA/SAS* + 4SATA/SAS*

*RAID card is required to support SAS hard drives

Rear Bays (Optional):

2 x 2.5" Hot-Swap drive bays (Will occupied 2 PCIe slots)

Support 2 x NVMe



Front Bays:

12 x 3.5" Hot-Swap drive bays

Support up to 4NVMe/SAS* + 4NVMe/SATA/SAS* + 4SATA/SAS*



Rear Bays:

2 x 2.5" Hot-Swap drive bays (Optional)

Support 2NVMe**

*RAID card is required to support SAS hard drives.

**Will occupied 2 PCIe slots

4

Option 1: 1 x Quad Port Intel I350-AM4 1G LAN Controller + 1 x Mgmt LAN

Option 2: 1 x Dual Port Intel X710-AT2 10G LAN Controller + 1 x Mgmt LAN

Option 3: None x + 1 x Mgmt LAN

Aspeed AST2600 64MB

Please find the latest GPU support from https://servers.asus.com/support/gpu

2 x USB 3.2 Gen1 ports

2 x USB 3.2 Gen1 ports

1 x VGA port

1 x RJ-45 Mgmt LAN port

2 x 10G or 4 x 1G RJ-45 GbE LAN port (Optional)

1 x OCP3.0 port (Optional)

*GPU SKU do not support OCP3.0.

Front Switch/LED:

1 x Power Switch (w/ LED)

1 x Reset Switch

1 x Location Switch (w/ LED)

1 x HDD Access LED

1 x Message LED LAN 1-4 LED (on NIC module)

Rear Switch/LED:

1 x Port 80 LED (Q-Code)

1 x Power Switch w/ LED

1 x Location Switch w/LED

1 x Message LED

Please find the latest OS support from https://servers.asus.com/support/os

On-Board ASMB11-iKVM for KVM-over-IP

ASUS Control Center Enterprise (Optional)

BSMI, CE, CB, C-Tick, FCC(Class A)

840mm x 449mm x 88.1mm (33.07" x 17.68" x 3.47")

2U

Net Weight : 19.3KG

Gross Weight : 25.77KG

1+1 Redundant 2000W/1600W 80 PLUS Platinum Power Supply

1+1 Redundant 2600W/1600W 80 PLUS Titanium Power Supply

Rating:

100-127/220-240Vac,12A/9.5A(x2),50/60Hz

100-127/240Vac,13.8A/16A(x2), 50/60Hz

220-240Vac, 10A(x2), 50/60Hz

Operation temperature: 10? ~ 35?

Non operation temperature: -40? ~ 60?

Non operation humidity: 20% ~ 90% (Non condensing)

Heat Sink:

Standard Cooling Solution

Enhanced Volume Air Cooling Solution.

Rail Kit:

Tool-less Friction Rail Kit

1.5U Height Full Extension Ball bearing Type Rail Kit

*Please consult sales if  cable arm needed.

2U Front Bezel

*SAS support only from SAS HBA/RAID Card

2

1 (For supporting GPU SKU, it will have external fan)
