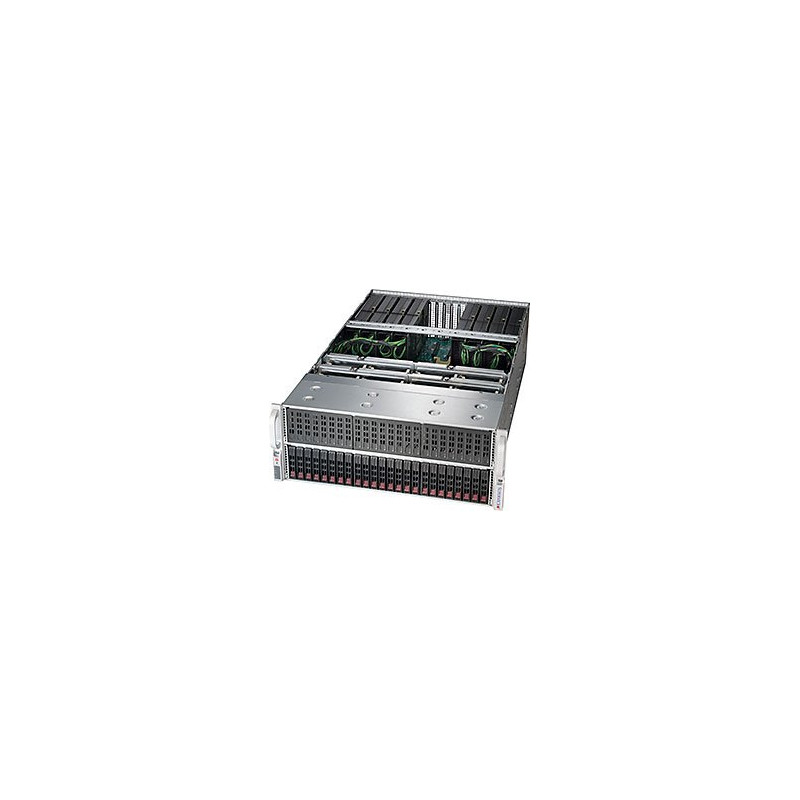

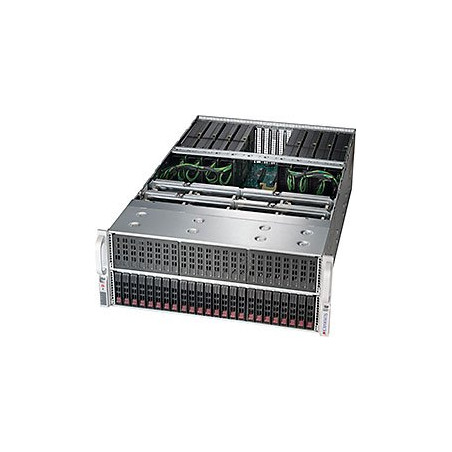

SUPERMICRO 4U GPU server 2xLGA-3647, C622, 24x DDR4 ER, 24x HS (2,5"), 8x GPU ready, M.2, 2+2 2000W, 2x10Gb BaseT,IPMI

4U Dual Processor (Intel), Single-Root Cascade GPU System with Up to 8 PCI-E GPUs Key Applications  - AI/ML, Deep Learning Training and Inference   - High Performance Computing (HPC)   - Big Data Analytics   - Astrophysics Simulation   - Chemistry Simulation   - Research Laboratory/National Laboratory  Key Features   1. Single Root System, Cascade Mode for maximum GPU peer to peer communication 2. Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)‡ 3. 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM†† 4. 11 PCI-E 3.0 x16 (FH, FL) slots, 1 PCI-E 3.0 x8 (FH, FL in x16 slot) 5. Up to 24 Hot-swap 2.5" drive bays, 8x 2.5" SATA drives supported with included H/W, 2x 2.5" NVMe drives supported with included H/W 6. 2x 10GBase-T LAN ports via Intel C622 7. 8 Hot-swap 92mm RPM cooling fans 8. 2000W (2+2) Redundant Power Supplies  Titanium Level (96%+)   Specifications   Product SKUs   SYS-4029GP-TRT3 SuperServer 4029GP-TRT3   Motherboard   Super X11DPG-OT-CPU   Processor   CPU Dual Socket P (LGA 3647) 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡, 3 UPI up to 10.4GT/s Support CPU TDP 70-205W Cores Up to 28 Cores Note ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)   GPU   Supported GPUs 8 Double-Width/Single-Width PCI-E 3.0 x16 Card (Full Height Full Length) 9 Single-Width GPUs NVIDIA V100, T4, Quadro RTX Supports both active and passive cooled GPUs Compatible GPU list CPU-GPU Interconnect PCI-E Gen 3 x16 Switch Single-Root PCIe Root Architecture Chart GPU-GPU Interconnect PCI-E, NVIDIA® NVLink™ Bridge (Optional)   System Memory   Memory Capacity 24 DIMM slots Up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM Supports Intel® Optane™ DCPMM†† Memory Type 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM Note † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info.   On-Board Devices   Chipset Intel® C622 chipset SATA SATA3 (6Gbps) with RAID 0, 1, 5, 10 Network Controllers Dual Port 10GbE from C622 IPMI Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Graphics ASPEED AST2500 BMC   Input / Output   SATA 8 SATA3 (6Gbps) ports LAN 2 RJ45 10GBase-T LAN ports 1 RJ45 Dedicated IPMI LAN port USB 4 USB 3.0 ports (rear) Video 1 VGA Connector COM Port 1 COM port (header)   System BIOS   BIOS Type AMI 32Mb SPI Flash ROM   Management   Software Intel® Node Manager IPMI 2.0 KVM with dedicated LAN SSM, SPM, SUM SuperDoctor® 5 Watchdog   PC Health Monitoring   CPU Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator FAN Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors Temperature Monitoring for CPU and chassis environment Thermal Control for fan connectors   Chassis   Form Factor 4U Rackmountable Rackmount Kit (MCP-290-00057-0N) Model CSE-418GTS-R4000BP2   Dimensions   Height 7.0" (178mm) Width 17.2" (437mm) Depth 29" (737mm) Weight Net Weight: 65.5 lbs (29.7 kg) Gross Weight: 100 lbs (45.3 kg) Available Colors Black   Drive Bays / Storage   Hot-swap Up to 24x 2.5" SAS/SATA drive bays 8x 2.5" SATA supported natively 2x 2.5" NVMe supported natively M.2 1 NVMe based M.2 SSD Form Factors: 2260, 2280, 22110   Expansion Slots   PCI-Express 11 PCI-E 3.0 x16 (FHFL) slots - supporting up to 9 GPUs 1 PCI-E 3.0 x8 (FH, FL, in x16) slot   System Cooling   Fans 8x 92mm heavy duty counter-rotating fans   Power Supply 2000W Redundant Power Supplies with PMBus Total Output Power 1000W: 100 – 120Vac 1800W: 200 – 220Vac 1980W: 220 – 230Vac 2000W: 230 – 240Vac 2000W: 200 – 240Vac (UL/CUL only) Dimension (W x H x L) 73.5 x 40 x 265 mm Input 100-120Vac / 12.5-9.5A / 50-60Hz 200-220Vac / 10-9.5A / 50-60Hz 220-230Vac / 10-9.8A / 50-60Hz 230-240Vac / 10-9.8A / 50-60Hz 200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only) +12V Max: 83.3A / Min: 0A (100-120Vac) Max: 150A / Min: 0A (200-220Vac) Max: 165A / Min: 0A (220-230Vac) Max: 166.7A / Min: 0A (230-240Vac) Max: 166.7A / Min: 0A (200-240Vac) (UL/cUL only) 12Vsb Max: 2.1A / Min: 0A Output Type 25 Pairs Gold Finger Connector Certification   Titanium Level   [ Test Report ]   Operating Environment   RoHS RoHS Compliant Environmental Spec. Operating Temperature:    10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature:    -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity:    8% to 90% (non-condensing) Non-operating Relative Humidity:    5% to 95% (non-condensing) Parts List   Parts List - (Items Included)     Part Number Qty Description Motherboard / Chassis MBD-X11DPG-OT-CPU   MBD-X11DPG-O-PCIE   CSE-418GTS-R4000BP2 1   1   1 Super X11DPG-OT-CPU Motherboard   Super X11DPG-O-PCIE Motherboard   CSE-418GTS-R4000BP2 Chassis Backplane BPN-SAS3-216A-N4 1 24-port 2U SAS3 12Gbps hybrid backplane, support up to 20x 2.5-inch SAS3/SATA3 HDD/SSD and 4x SAS3/SATA3/NVMe Storage Devices Cable 1 CBL-0449L 2 HDD power extension for X8OBN, special 8 pin to 4 HDD. 45cm. 18AWG Cable 2 CBL-PWEX-1028 8 GPU,2x4F/CPU to 2x4F/CPU,P4.2, 30CM,16AWG, 10A/pin, -40~105C Cable 3 CBL-SAST-0507-01 2 MINI SAS HD-MINI SAS,6G,INT,80CM,SB,28AWG Cable 4 CBL-SAST-0972 2 OcuLink V. 1.0 source to MiniSAS HD,INT,PCIe, 70CM,34AWG,RoH Parts MCP-130-41802-0B 1 Black plastic palm cover for X10DRG-O-PCIE Riser Card RSC-X9DRG-O 4 RSC-X9DRG-O Heatsink / Retention SNK-P0068APS4 2 2U Active CPU Heat Sink Supporting Narrow Bolster Plate Mounting Mechanism for X11 Purley Platform * Power Supply PWS-2K05A-1R 4 1U 2000W Redundant Titanium Power Supply W/PMbus 73.5x40x265mm,RoHS/REACH * Cable 5 CBL-0071L 1 CBL,FRONT CNTL,16 TO 16 PIN,RA,RND TUBE,75CM,28AWG * Cable 6 CBL-0174L 4 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,14AWG,15A,125V,RoHS/REACH * FAN 1 FAN-0199L4 8 92x92x38 mm, 11.5K RPM, SC418G Middle Fan w/ Housing,RoHS/REACH,PBF * Drive Tray(s) MCP-220-00047-0B 24 Black gen 3rd hot-swap 2.5inch HDD tray * Rear Window MCP-240-84802-0N 1 21 slot rear window for SC418X * Parts MCP-260-41801-0N 1 IO shield for X9DRG-O in SC418G * Front Panel MCP-280-82601-0N 1 Front control board adapter (TB826) for SC216,826,936,846 * Rail Set MCP-290-00057-0N 1 set Rail set, quick/quick, default for 4U 17.2"; W * Rail Set MCP-290-00060-0N 1 Threaded rail adapter default for round hole rack * Drive Tray(s) MCP-290-21301-0B 3 Black 2.5\" HDD dummy cover for SC213,216 (Cover 8 HDD) * Rail Set MCP-290-00115-0N 1 Inner rail, quick-release type * Rail Set MCP-290-00117-0N 1 Outer rail, quick-release type * FAN 2 MCP-340-00044-0N 1 92x92x38 mm, 11.5K RPM, 4-pin PWM Bare Fan Notes: Parts with * are inside the chassis Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.   Optional Parts List     Part Number Qty Description 0.5U LID MCP-230-41803-0N 1 Top cover for GTX card support 1U LID MCP-230-41806-0N 1 Top cover for NVLINK BRIDGE support 2.5" NVMe Drive Trays MCP-220-00121-0B   MCP-220-00167-0B   1 per drive Black Gen-3 2.5" NVMe drive tray. Orange tab with lock   Black Gen-3 2.5" NVMe drive tray. Orange tab with lock, Tool-less GPU Dummy Tray MCP-240-00096-0N 1 GPU / Add-on Card Dummy Assembly (2 Slots) GPU Cables CBL-PWEX-0665 1 per GPU*** GPU power cable (for NVIDIA P40, M40, M60, AMD MI25). 8pin FEMALE BLK to 8pin FEMALE WHT. 30cm 18AWG. CBL-PWEX-1017 1 per GPU GPU power cable (for NVIDIA QUADRO, GTX). 8pin FEMALE CPU BLUE to 2x 6pin FEMALE / 2x 1pin FEMALE. 20cm 16AWG/20AWG. CBL-PWEX-1040* 1 per GPU GPU power cable (for NVIDIA QUADRO, GTX). 8pin MALE CPU to 2x 6pin FEMALE / 2x 1pin FEMALE. 5cm 20AWG/16AWG. CBL-PWEX-1028** 1 per GPU GPU power cable (for NVIDIA TESLA V100). 8pin FEMALE CPU BLUE to 8pin FEMALE CPU BLUE. 30cm 20AWG/16AWG. Note: * Use with CBL-PWEX-1028 ** 8 qty. included with each system *** 2 qty. required for each MI25 Storage Control Cards and Cables AOC-S3008L-L8I2 1 Broadcom 3008 STD LP 8 internal ports, 12Gb/s per port - SAS HBA Adapter Card, RAID 0,1,1E,10 AOC-S3008L-L8E2 1 Broadcom 3008 STD LP 8 internal ports, 12Gb/s per port - SAS HBA Adapter Card, HBA only AOC-S3108-H8IR2, 4, 8 1 Broadcom 3108 STD LP 8 internal ports, 12Gb/s per port - SAS HBA Adapter Card, RAID 0,1,5,6,10,50,60 AOC-S3108L-H8IR-16DD4, 8 1 Broadcom 3108 STD LP 8 internal ports, 12Gb/s per port - SAS HBA Adapter Card, RAID 0,1,5,6,10,50,60. Maximum 16 HDD support with expander backplane AOC-SAS3-9361-16I3, 5 1 Broadcom 9361 STD LP 16 internal ports, 12Gb/s per port - SAS HBA Adapter Card, RAID 0,1,5,6,10,50,60. AOC-SAS3-9361-24I5, 6 1 Broadcom 9361 STD LP 24 internal ports, 12Gb/s per port - SAS HBA Adapter Card, RAID 0,1,5,6,10,50,60. CBL-SAST-0531 2 n/a BTR-TFM4G-LSI004187 1 LSI Remote CVKit with DVFlash Module CVFM04 for 9361 and 9380 Controller Series BTR-TFM8G-LSICVM02 1 LSI Supercap w/ 8GB CV + 24" cable for LSI S3108-H8IR. Optional installation kit: - MCP-240-00127-0N - BKT-BBU-BRACKET-05 MCP-240-00127-0N 1 Remote Mounting Bracket for Supercap. Installs in 2.5" drive tray. BKT-BBU-BRACKET-05 1 Remote Mounting Board for Supercap. Full Height mounting bracket. Low Profile mounting bracket also included. BPN-SAS3-216EL1 1 SAS3 12Gb/s Single Expander Backplane with x24 2.5" SATA/SAS HDD/SSD. Note: 2. Requires x2 CBL-SAST-0531 3. Requires x4 CBL-SAST-0531 4. Use BTR-TFM8G-LSICVM02 for Supercap 5. Use BTR-TFM4G-LSI00418 for Cache Vault 6. Requires x6 CBL-SAST-0531 7. Requires BKT-BBU-BRACKET-05 8. Optional BPN-SAS3-216EL1 Expander Backplane support. Will lose x2 U.2 NVMe support Network and Cables AOC-STG-i4S 1 4 Port 10G SFP+ PCI-E x8 Ethernet card. Based on Intel X710-AMI AOC-STG-i2T 1 2 Port 10G RJ45 PCI-E x8 Ethernet card. Based on Intel X540 AOC-S25G-B2S 1 2 Port 25G SFP28 PCI-E x8 Ethernet card. Based on Broadcom BCM57414 AOC-S25G-M2S 1 2 Port 25G SFP28 PCI-E x8 Ethernet card. Based on Mellanox ConnectX-4 LX EN AOC-MCX4121A-ACAT 1 2 Port 25G SFP28 PCI-E X8 Ethernet card. Based on Mellanox ConnectX-4 LX EN AOC-S40G-I1Q 1 1 Port 40G QSFP+ PCI-E X8 Ethernet card. Based on Intel X710 AOC-S40G-I2Q 1 2 Port 40G QSFP+ PCI-E X8 Ethernet card. Based on Intel X710 AOC-MCX456A-ECAT 1 2 Port 100G QSFP28 PCI-E X16 EDR IB card. Based on Mellanox Connect-4 VPI AOC-MCX556A-ECAT 1 2 Port 100G QSFP28 PCI-E X16 EDR IB card. Based on Mellanox Connect-5 VPI CBL-NTWK-0944-MS28C30M 1 Ethernet Cable, SFP28,28GbE,PASSIVE,30 AWG,3M,Mellanox CBL-NTWK-0944-MS28C20M 1 Ethernet Cable, SFP28,28GbE,PASSIVE,30 AWG,2M,Mellanox AOC-E10GSFPSR 1 Ethernet Transceiver, SFP+ 1000Base-SX / 10GBase-SR CBL-NTWK-0446-01 1 Ethernet Cable, QSFP, 40GbE, PASSIVE, 28 AWG, 3M CBL-NTWK-0942-MQ28E20M 1 IB Cable, QSFP28, 100GbE, PASSIVE, 28 AWG, 2M Global Services & Support OS4HR3/2/1   OSNBD3/2/1 -   - 3/2/1-year onsite 24x7x4 service   3/2/1-year onsite NBD service Software SFT-OOB-LIC •  1 OOB Management Package (per node license) Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
