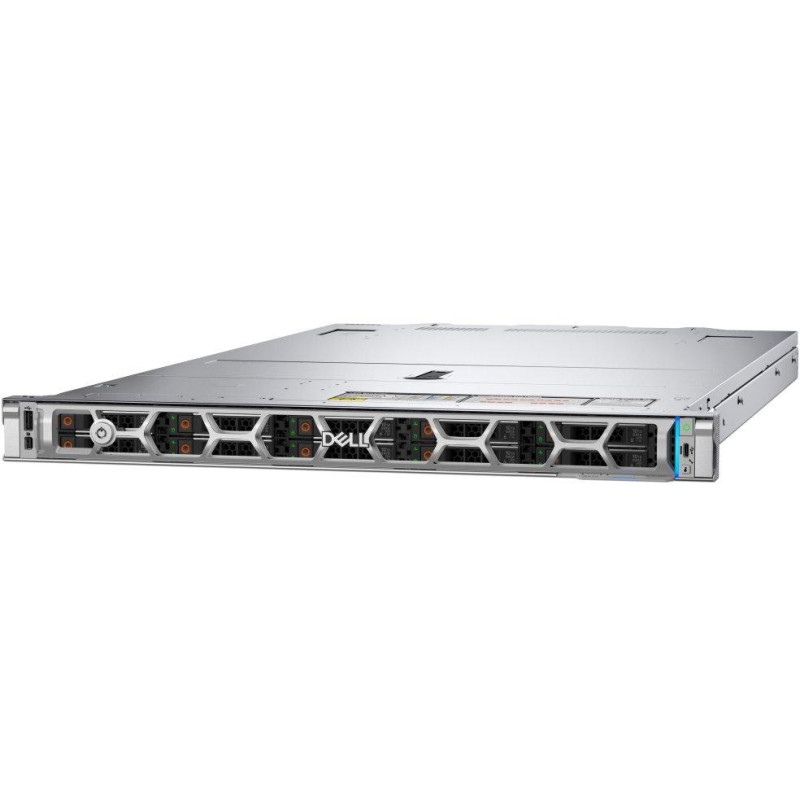

DELL PowerEdge R470/ 8x 2.5"/ Xeon 6511P/ 128GB/ 2x 480GB SSD/ H965i/ 2x 800W/ iDRAC 10 Ent./ 1U/ 3Y PS NBD on-site

Powerful 1U rack server with Intel Xeon 6511P processor and advanced features for enterprise deployment.

The DELL PowerEdge R470 is a compact 1U rack server designed for demanding enterprise applications and virtualization. Equipped with a 16-core Intel Xeon 6511P processor with a frequency of 2.5 GHz and up to 72 MB turbo cache, this server delivers high performance for critical tasks.

The system features 128 GB of DDR5 memory with a transfer rate of 6400MT/s and two 480GB SATA SSDs in RAID 1 configuration for reliable data storage. The server uses an advanced PERC H965i controller and offers the option of expanding up to 8 2.5" drives. Thanks to iDRAC 10 Enterprise, you get comprehensive remote management and monitoring capabilities.

Advanced management and monitoring

With the integrated iDRAC 10 Enterprise solution, you get a complete set of tools for remote server management, diagnostics, and monitoring without the need to install additional software. This technology allows IT administrators to effectively manage servers from anywhere, anytime.



Flexible expandability

The PowerEdge R470 offers expandability with Riser Config 6 with two full-height PCIe Gen5 slots and one integrated OCP 3.0 slot. This flexibility allows you to customize the server to meet the specific needs of your infrastructure.



Reliable performance and efficiency

Redundant, Titanium-certified hot-plug power supplies ensure maximum energy efficiency and continuous operation. Combined with optimized airflow (Smart Flow), the R470 server delivers excellent thermal efficiency and reliability in demanding data centers.

BASIC SPECIFICATIONS

Model: Dell PowerEdge R470

Design: 1U rack server

Processor: Intel Xeon 6511P (2.5 GHz, 16 cores/32 threads, 72 MB cache, TDP 150W)

RAM: 128 GB DDR5 (4x 32GB RDIMM, 6400 MT/s, dual rank)

Storage: 2× 480GB SSD SATA Read Intensive 6Gbps 512 2.5" hot-plug, 1 DWPD

Controller: PERC H965i Controller, Front, DC-MHS

Chassis: 2.5" chassis with support for up to 8 drives (SAS/SATA), Smart Flow

Power supply: 2× 800W hot-plug redundant power supplies (Titanium, AC 100-240 V)

Network interface: Intel Ethernet E610-IAT4 Quad Port 1/2.5 GbE BASE-T, OCP 3.0

Expansion slots: Riser Config 6, 2× PCIe x16 FH slots (Gen5), 1× PCIe x16 onboard OCP

Management: iDRAC 10 Enterprise 17G

Power cables: 2× Rack Power Cord 2M (C13/C14 10A)
