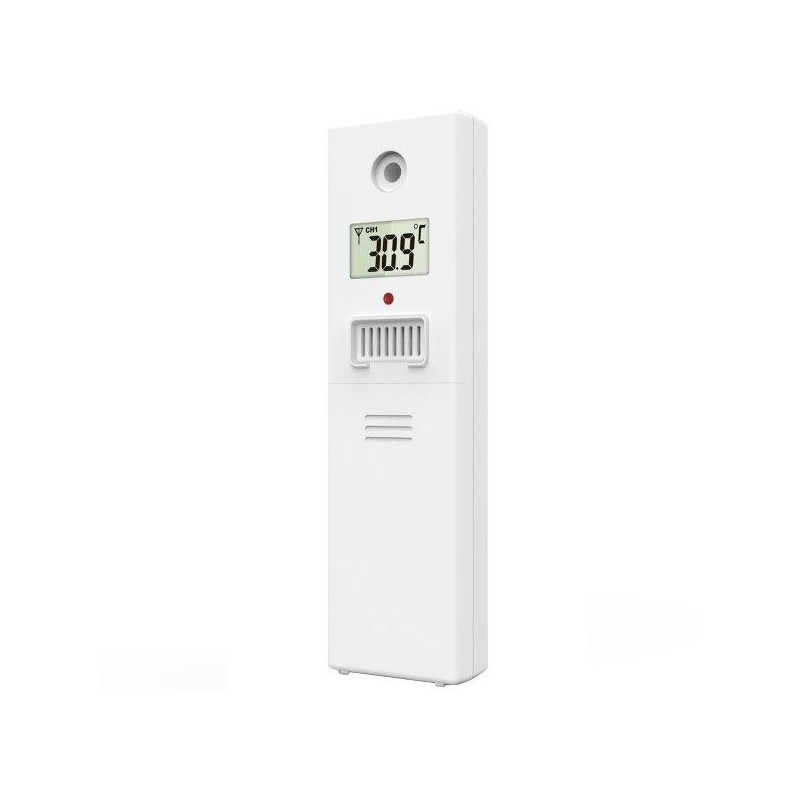

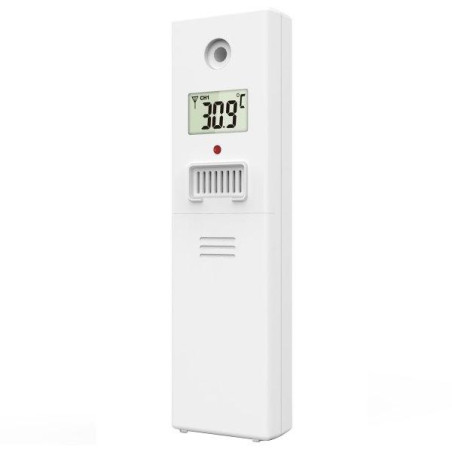

IMMAX NEO SMART temperature and humidity sensor for weather station, 433MHz, TUYA

Outdoor temperature and humidity sensor with wireless data transmission at a frequency of 433 MHz designed for the 07528L weather station.

The sensor is equipped with a clear LCD display for immediate checking of measured values directly at the installation site. Thanks to wireless data transmission at a frequency of 433.92 MHz , no cabling is required and the sensor can be placed in the optimal location for the most accurate measurement of outdoor conditions.

After pairing with the 07528L weather station, you can monitor the values remotely in the Immax NEO PRO app and create smart home automation. The system is fully compatible with iOS, Android, Amazon Alexa, Apple Siri Shortcuts, Google Assistant, TUYA and Lidl platforms.

Remote monitoring and automation
Thanks to integration with the Immax NEO PRO application, you can monitor current temperature and humidity values remotely from any location. Based on the measured data, you can create advanced smart home automation.

Energy-efficient operation
The sensor operates with a very low standby current of only 15 µA, which ensures a long battery life of 7-9 months during normal operation.

Durable construction
The IPX4 protection level protects the sensor against splashing water from all directions, and the operating humidity of up to 95% without condensation ensures reliable operation even in demanding outdoor conditions.

BASIC SPECIFICATIONS

Protocol: 433MHz

Frequency: 433.92MHz RF

Wireless range: 30 m line of sight, 10 m in built-up areas

Power supply: 2× AA batteries (2.4-3.3 V)

Operating current: 35 mA average, 15 µA standby

Battery life: 7-9 months

Temperature measurement range: -50°C to +70°C

Humidity measurement range: 20-95%

Protection level: IPX4

Dimensions: 96 × 50 × 24.5 mm

Weight: 55g
