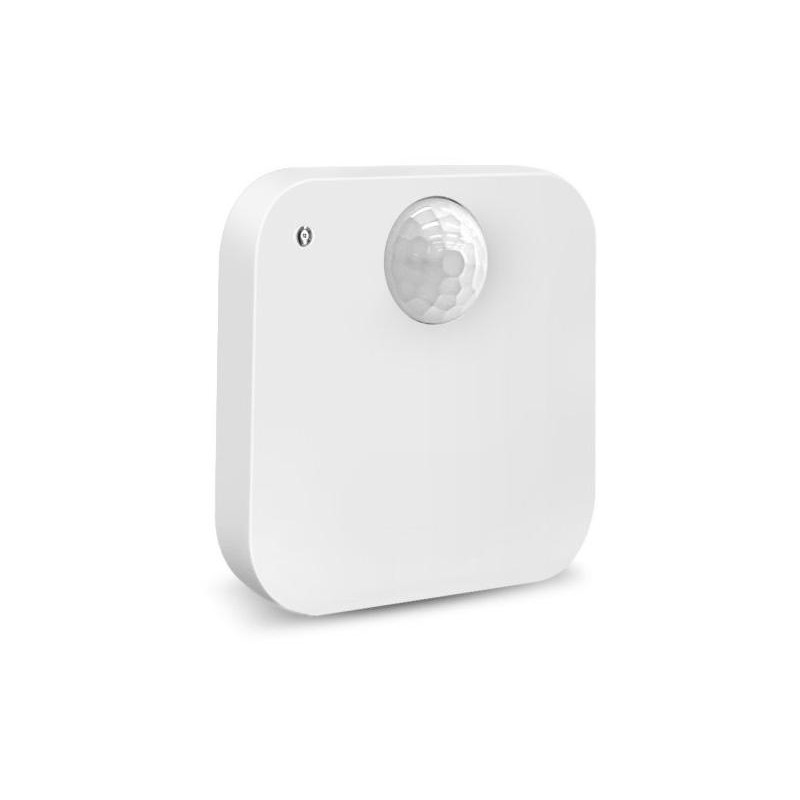

IMMAX NEO SMART 3in1 PIR, presence and lighting sensor, Zigbee 3.0, TUYA

A smart device that combines motion detection (PIR), presence monitoring and light level measurement. PIR sensor (passive infrared sensor) – detects movement based on thermal radiation, suitable for regular room entry detection. Presence sensor (mmWave, microwave radar) – recognizes small movements (e.g. breathing or small hand movements), which allows reliable detection even when stationary (sitting or lying down). Light sensor – measures the ambient light level and enables automation according to the light intensity. Powered via USB-C connector. Automation support (e.g. turning on lights when motion is detected). Thanks to Zigbee communication, it can easily be connected to the Tuya smart home, the IMMAX NEO PRO application in Czech and 60 other languages, compatible with iOS, Android, Apple Siri and also with TUYA, LIDL systems. Ideal for smart lights, alarms or optimizing energy consumption.

Attention! This is not a Wi-Fi sensor, it requires the IMMAX NEO SMART BRIDGE PRO v3/v4 smart gateway (can be purchased separately, product code: 07117-3/07117-4), or another hub/bridge/gateway on the TUYA platform that communicates using the ZigBee 3.0 standard. Using the IMMAX NEO SMART BRIDGE PRO, you can receive information from the sensor to the IMMAX NEO PRO application.

BASIC SPECIFICATIONS

Detector type: PIR + presence of people (radar) + lighting
Detection angle: 120°
Illumination detection range: 0-1000 lux
Detection range: up to 6 m
Wireless range: 30 m (line of sight), 10 m (in built-up areas)
Operating temperature: -10 to +50 °C
Degree of protection: IP20
Power supply: USB-C (DC 5V/1A; adapter not included)
Dimensions: 59.8 × 59.8 × 12.5 mm
Weight: 21g
