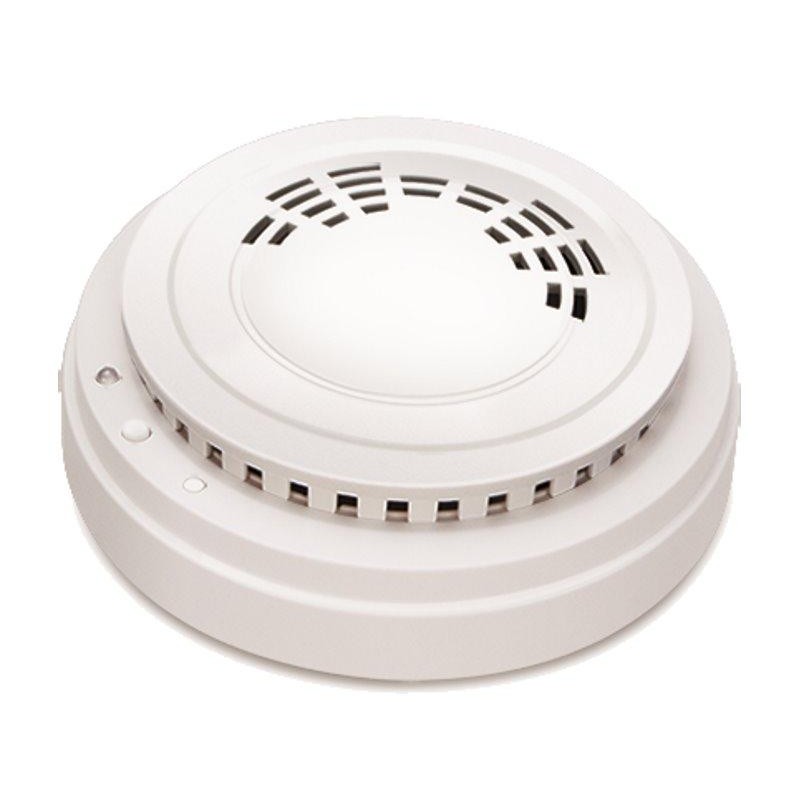

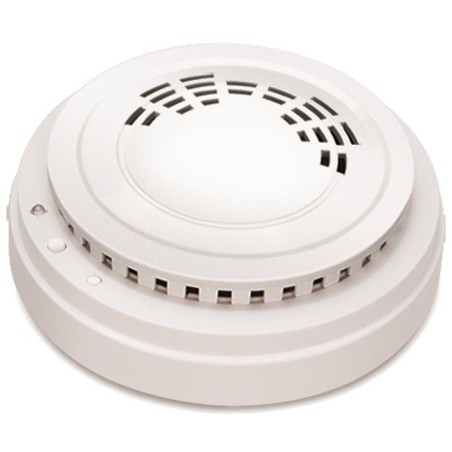

PLANET LS100-SMK-868M
The smoke detector ensures quick identification of smoke particles and provides early warning to prevent potential fire hazards. It activates an alarm when the temperature exceeds 60 °C . It requires 2× 1.5V AAA batteries (not included) for power and offers a lifespan of up to 4.7 years. The sensor is fully compatible with standard LoRaWAN gateways and supports LoRaWAN Class A. It is ideal for large-scale IoT applications, including building automation, smart metering, HVAC systems, agriculture and more.
The LoRaWAN LS100/LS200 series sensors are fully compatible with standard LoRaWAN gateways, such as the PLANET LCG-300 series, which support the LoRaWAN Class A protocol. They are ideal for large-scale IoT applications, including building automation, smart metering, HVAC systems, agriculture, and more. The sensor allows for seamless integration of multiple sensors, making it a perfect choice for retrofitting legacy assets into IoT-enabled systems.
- Smoke detector
- High temperature detector (>60 °C)
- Siren volume 85 dB
- Protection standard IP20
- Compatible with LoRaWAN™ Class A
BASIC SPECIFICATIONS
Wireless transmission:
Technology: LoRaWAN
Frequency: 863–870 MHz
TX power: EU868 16 dBm
Rx Sensitivity:
-136 dBm (LoRa, dispersion factor = 12, data rate = 293 bps)
-121 dBm (FSK, frequency deviation = 5 kHz, data rate = 1.2 kbps)
Working mode: OTAA/ABP Class A
Physical properties:
Power supply: 2× 1.5 V AAA (not included)
Battery life: up to 4.7 years
Degree of protection: IP20
Operating temperature: –10 to +55 °C, humidity up to 90%
Dimensions: 106 × 106 × 40.6 mm
Weight: 105g
