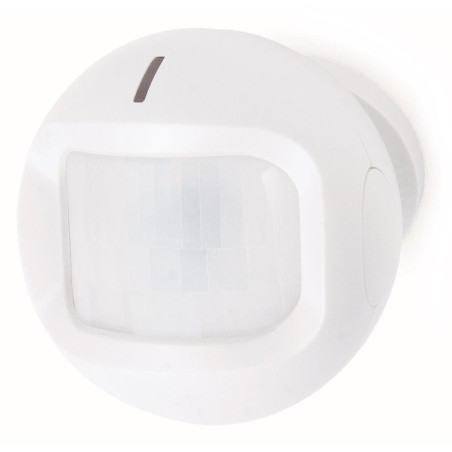

PLANET LS100-PIR-868M
This PIR sensor offers a wide range of applications in smart building management , providing real-time information on indoor occupancy. This helps in adjusting lighting and HVAC systems, achieving energy savings and improving user experience. In addition, it can be used in security systems, where it offers critical intrusion detection functions, thereby enhancing the overall security of the building.
The LoRaWAN LS100/LS200 series sensors are fully compatible with standard LoRaWAN gateways, such as the PLANET LCG-300 series, which support the LoRaWAN Class A protocol. They are ideal for large-scale IoT applications, including building automation, smart metering, HVAC systems, agriculture, and more. The sensor allows for seamless integration of multiple sensors, making it a perfect choice for retrofitting legacy assets into IoT-enabled systems.
- PIR sensor
- Light sensor
- Thermal sensor
- Protection standard IP30
- Compatible with LoRaWAN™ Class A
BASIC SPECIFICATIONS
Wireless transmission:
Technology: LoRaWAN
Frequency: 863–870 MHz
TX power: EU868 16 dBm
Rx Sensitivity:
-136 dBm (LoRa, dispersion factor = 12, data rate = 293 bps)
-121 dBm (FSK, frequency deviation = 5 kHz, data rate = 1.2 kbps)
Working mode: OTAA/ABP Class A
Physical properties:
Power supply: 2× 3.6 V ER14505 AA batteries (not included)
Battery life: up to 5 years
Protection class: IP30
Operating temperature: –20 to +55 °C, humidity up to 90%
Dimensions: 82.2 × 78.8 × 78 mm
Weight: 125.8g
