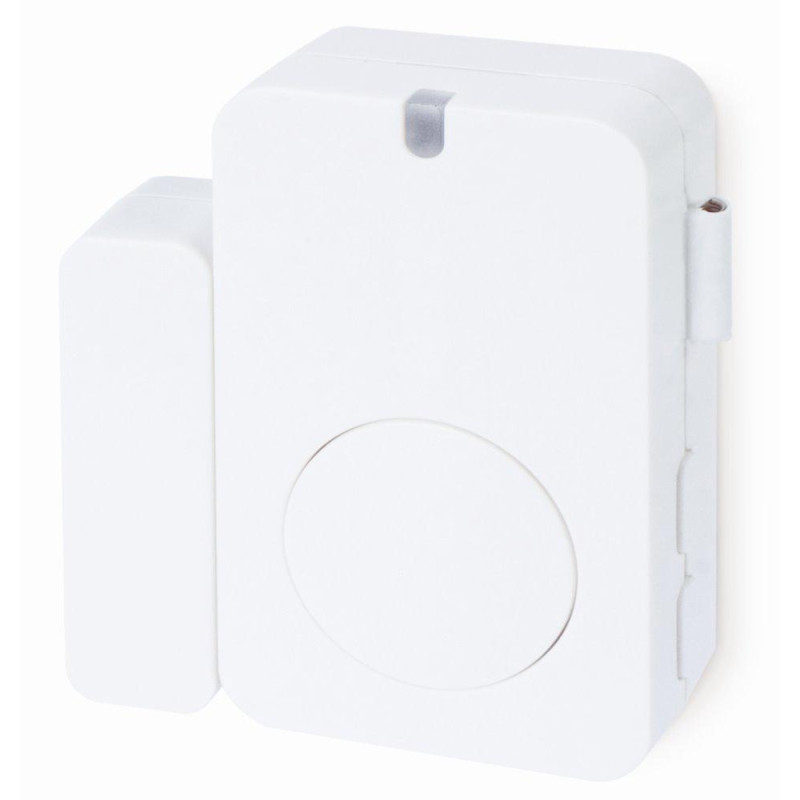

Planet LS100-DW IoT LoRaWAN door and window sensor, IP30

PLANET LS100-DW-868M

The Door and Window Sensor offers an elegant solution for real-time monitoring of building entrances . Through LoRaWAN connectivity, this sensor provides real-time updates on the status of doors and windows, improving energy efficiency and access control.

The LoRaWAN LS100/LS200 series sensors are fully compatible with standard LoRaWAN gateways, such as the PLANET LCG-300 series, which support the LoRaWAN Class A protocol. They are ideal for large-scale IoT applications, including building automation, smart metering, HVAC systems, agriculture, and more. The sensor allows for seamless integration of multiple sensors, making it a perfect choice for retrofitting legacy assets into IoT-enabled systems.

•

• Window sensor

• Door sensor

• Protection standard IP30

• Compatible with LoRaWAN™ Class A


BASIC SPECIFICATIONS

Wireless transmission:

Technology: LoRaWAN

Frequency: 863–870 MHz

TX power: EU868 16 dBm

Rx Sensitivity:

-136 dBm (LoRa, dispersion factor = 12, data rate = 293 bps)

-121 dBm (FSK, frequency deviation = 5 kHz, data rate = 1.2 kbps)

Working mode: OTAA/ABP Class A

Physical properties:

Power supply: 2× 3 V CR2450 button battery (not included)

Battery life: up to 3 years

Protection class: IP30

Operating temperature: –20 to +55 °C, humidity up to 90%

Dimensions: 57 × 38.05 × 15.2 mm / 42.5 × 13 × 12 mm (magnet)

Weight: 43.8g
