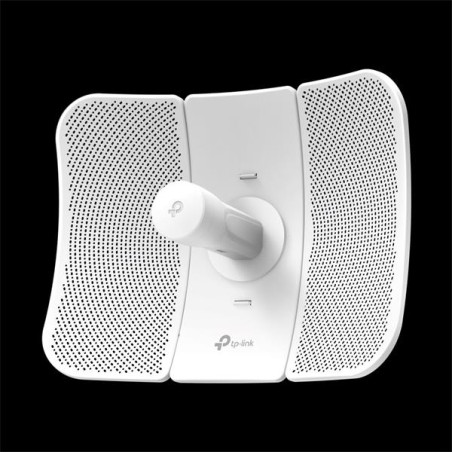

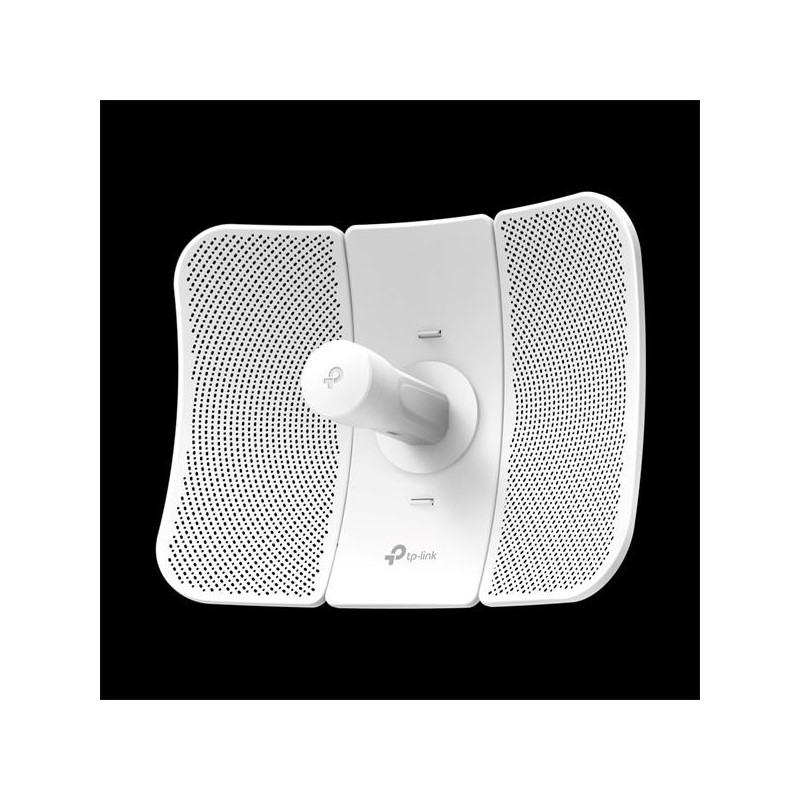

5 GHz AC867 23 dBi Outdoor CPE Port: 1 × Gigabit Shielded Ethernet Port SPEED: 867 Mbps at 5 GHz FEATURE: 23 dBi, 30+ km

Vonkajší CPE 5 GHz AC 867 Mb/s 23 dBi

802.11ac pre bezdrôtové prenosové rýchlosti v pásme 5 GHz až 867 Mb/s

23 dBi vysoko ziskové smerové antény 2×2 MIMO, ideálne pre aplikáciu na veľké vzdialenosti

Vynikajúca smerovosť lúča, vylepšená latencia a potlačenie šumu

Inovatívne diely so zámkom zaisťujú rýchlu montáž a robustné konštrukčné riešenie, ktoré udržuje CPE710 stabilné aj za silného vetra

Krytie IP65 odolné voči poveternostným vplyvom spolu s 15kV ESD a 6kV ochranou pred bleskom zaisťuje vhodnosť do každého počasia

Pharos Control poskytuje správcom bezplatný centralizovaný systém správy

Podpora pasívneho PoE umožňuje flexibilné nasadenie a pohodlnú inštaláciu



HARDWARE FEATURES

Processor Qualcomm 750MHz CPU, MIPS 74Kc

Memory 128 MB DDR2 RAM, 16 MB Flash

Interface 1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE)

1 Reset Button

Power Supply Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)

Voltage range: 16-27V DC

Dimensions ( W x D x H ) 366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.)

Antenna Gain 23 dBi

Antenna Beamwidth 9° (Azimuth)/7° (Elevation)

Protection 15 KV ESD Protection

6 KV Lightning Protection

Enclosure Material: Outdoor PC stabilized plastic

Weatherproof: IP65 water and dust proof design

WIRELESS FEATURES

Wireless Standards IEEE 802.11a/n/ac

Wireless Speeds Up to 867 Mbps (80 MHz, Dynamic)

Up to 400 Mbps (40 MHz, Dynamic)

Up to 173.4 Mbps (20 MHz, Dynamic)

Frequency 5.15–5.85 GHz

Transmit Power Max. 27 dBm (Adjustable power by 1dBm)

SOFTWARE FEATURES

Network Configuration WAN: Static/ Dynamic/ PPPoE

LAN: Static/ Dynamic/ DHCP

Forwarding: ALG/ UPnP/ Virtual Server/ Port Trigger

Security: SPI Firewall/ Ping Forbidden/ DoS Protection

Access Control

Static Routing

Bandwidth Control

IP & MAC Binding

Wireless Configurations Selectable Channel Width: 20/40/80MHz

Auto Channel Selection

Transmit Power Control

Dynamic Frequency Selection(DFS)

WDS Enable/ Disable

Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption,

SSID Broadcast Enable/ Disable

Multi-SSID with VLAN Tagging(AP Mode only)

Distance/ ACK Timeout Setting

Wireless MAC Address Filter

Wireless Advanced:

Beacon Interval/ RTS Threshold/ Fragmentation Threshold/ DTIM Interval/ AP Isolation/ Short GI/ Wi-Fi Multimedia

Long Range PtP

Management Discovery and Remote Management via Pharos Control application

HTTP/ HTTPS Web-based management

System log

SNMP Agent(v2c)

Ping Watch Dog

Dynamic DDNS

SSH Server

System Tools Indicators:Signal Strength/ Noise/ Transmit CCQ/ CPU/ Memory

Monitors: Throughput/ Stations/ Interfaces/ ARP/ Routes/ WAN/ DHCP

Spectrum Analyzer

Speed Test

Ping

Traceroute

Antenna Alignment

System-level Optimizations Optimized IGMP Snooping / Proxy for multicast applications

POE ADAPTER FEATURES

Dimensions(W x D x H) 85.8×43.9×29.7 mm

Interfaces 1 AC Jack with Earth Ground

1× 10/100/1000 Mbps Shielded Ethernet Port (Power + Data)

1× 10/100/1000 Mbps Shielded Ethernet Port (Data)

Button Remote Reset Button

Power Status LEDs Green

Input 100-240VAC, 50/60Hz

Output 24VDC, 0.5A Max

+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)

Efficiency >84.29%

Certifications CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark

OTHERS

Certification CE, FCC, RoHS, IP65, IC

Package Contents Outdoor Wireless CPE

24V 0.5A Passive PoE Adapter

Pole Mounting Kits

AC Power Cord

Installation Guide

System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.

Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.

Environment Operating Temperature: -40?~70? (-40?~158?)

Storage Temperature: -40?~70? (-40?~158?)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~95% non-condensing
