MikroTik Wireless Wire Dish + JH-LHG

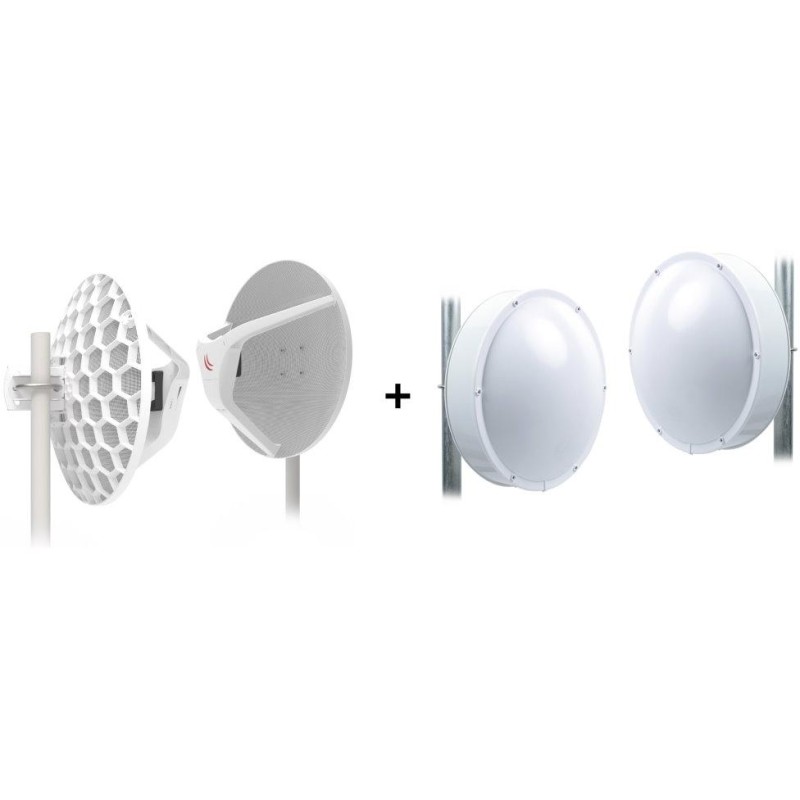

Set of two Wireless Wire Dish units (RBLHGG-60adkit) and radome covers (JH-LHG).
Complete 1.8 Gbps full duplex connection in the unlicensed 60 GHz band at an unbeatable price. The connection is not affected by ambient interference and thus offers a stable and very fast connection.
MikroTik has introduced a revolutionary unit that will fully replace a Gigabit Ethernet connection up to a distance of 1.5 km . Among the biggest advantages is the 60 GHz band used, which guarantees that the unit will not be interfered with by surrounding networks. The unit also offers high security in the form of encryption with an unbroken AES key.
The package contains two of these units, which are already set up, so you just need to plug them in and point them.
The unit includes MikroTik RouterOS software with L3 license . This license is fully sufficient for creating a point to point connection. The unit has an integrated PoE splitter , so it can be powered directly via UTP cable.
In addition, it supports the 802.3af/at standard and can power the unit up to a distance of 100 m. The package includes a PoE splitter, power supply and bracket.
Real speed test. The unit can transmit more than 900 Mbps in both directions!
Information about the MikroTik RouterOS system
- If you are starting with RouterOS MikroTik or If you need help with more complex settings, you can use our support .
- You can learn how to set up and manage RouterBoard in our training courses .
- Setup tips and frequently asked questions can be found in the Technical Support section.
- All RouterBoards have the same MikroTik RouterOS system.
- All devices with MikroTik RouterOS fully support IPv6 , have a firewall , Queues , NAT and with an L4 license support the CAPsMAN server.
- MikroTik can be configured via a web interface , a mobile application , or the winbox program, which can be downloaded from mikrotik.com.
- MikroTik has a "Quick Set" option . There are several preset profiles to choose from.
To operate the connection, you need to register. You can find out how to register here .
If you have any questions about the product or MikroTik, please use our technical support question database or contact form .
The operation of the 60GHz link in the Czech Republic is possible only in accordance with the valid general authorization VO-R/12/03.2021-3. The actual range of the link isdepends on local regulations in a given state and local conditions.
BASIC SPECIFICATIONS
Wireless Wire Dish
Antenna gain: 42 dBi
Channel width: 2100 MHz
Input power: 10 dBm
Frequency used:
Channel 1: 58.32 GHz (58320 MHz)
Channel 2: 60.48 GHz (60480 MHz)
Channel 3: 62.64 GHz (62640 MHz)
Channel 4: 64.80 GHz (64800 MHz)
CPU frequency: Qualcomm IPQ-4019, 716 MHz
Number of cores: 4
RAM memory: 256 MB
Wi-Fi standard: IEEE 802.11ad
Wi-Fi frequency: 60 GHz
Ports: 1 x RJ-45
PoE support: yes, 802.3af/at
Operating system: RouterOS
Dimensions: 391 x 391 x 222 mm
JH-LHG cover
Throughput attenuation: <0.5 dB
Mounting: right or left
Material: UV stabilized PP, lacquered aluminum
Dimensions: 420 x 240 mm
Weight: 0.85 kg
