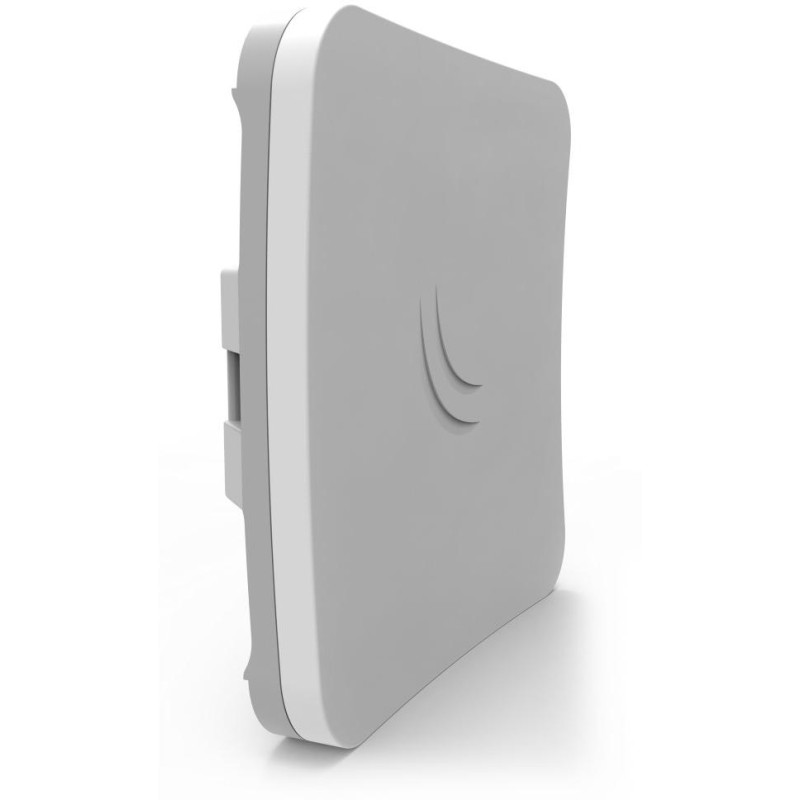

MikroTik RouterBOARD RBSXTsqG-5acD, SXTsq 5 ac, 16dBi, 802.11ac, ROS L3, PoE, source

MikroTik SXTsq 5 ac SXTsq 5 ac High power outdoor client unit. It has a 5 GHz module with support for the latest 802.11a/n/ac standard (MIMO 2x2). In addition, it has a Gbit port and a very powerful processor, thanks to which it can transmit data at speeds of up to 600 Mbps. The RouterBoard is placed in a high-quality waterproof, UV-resistant box with an integrated dual 5 GHz antenna with a gain of 16 dBi and an output of up to 25 dBm. The wireless module is equipped with 10 kV surge protection. The set is suitable for connecting clients up to a distance of 2 km. The big advantage is the 802.11ac standard used, a gigabit port, a very powerful 4-core processor at a frequency of 716 MHz and 256 MB RAM. With these parameters, it is possible to achieve a transfer speed of up to 600 Mbit. The delivery includes a 24 V/ 0.3 A power supply including PoE. The unit is supplied incl. RouterOS MikroTik with L3 license. This license allows you to create a BRIDGE mode and connect one client to it. Two units with L3 license can be used to create a transparent point-to-point connection. The locations are connected in the same way as if they were connected by a classic cable. Information about the RouterOS MikroTik system If you are starting with RouterOS MikroTik or if you need help with a more complex setup, you can use our support. You can learn how to set up and manage the RouterBoard at our trainings. Setup tips and frequently asked questions can be found in the Technical Support section. All RouterBoards have the same RouterOS MikroTik system. All devices with RouterOS MikroTik fully support IPv6, have a firewall, Queues, NAT, and with the L4 license support the CAPsMAN server. MikroTik can be set up via the web interface, via a mobile application, or with the winbox program, which can be downloaded from mikrotik.com. MikroTik has a "Quick Set" option, i.e. a quick setup option. There are several preset profiles to choose from. BASIC SPECIFICATIONS Standard: IEEE 802.11a/n/ac Antenna: 16 dBi, integrated Ports: 1× RJ-45 LAN Frequency band: 5150–5875 MHz Processor frequency: 716 MHz RAM size: 256 MB Chip model: IPQ-4018 Operating system: RouterOS L3 PoE support: yes Power supply: 10–30 V Maximum consumption: 7 W Dimensions: 129 × 129 × 34 mm Color: white Useful links and videos: Declaration of conformity + user manual Device setup via Quick Set quick guide Mobile phone control application Device reset, reset button function RouterOS MikroTik system recovery via Netinstall utility Address translation settings (NAT) Load Balancing settings (distribution of traffic between multiple Internet connections) Failover settings (switching the line to the backup in case of an outage) Multiple uplinks using PCC & Load balancing Static NAT & RouterOS MikroTips: Netinstall
