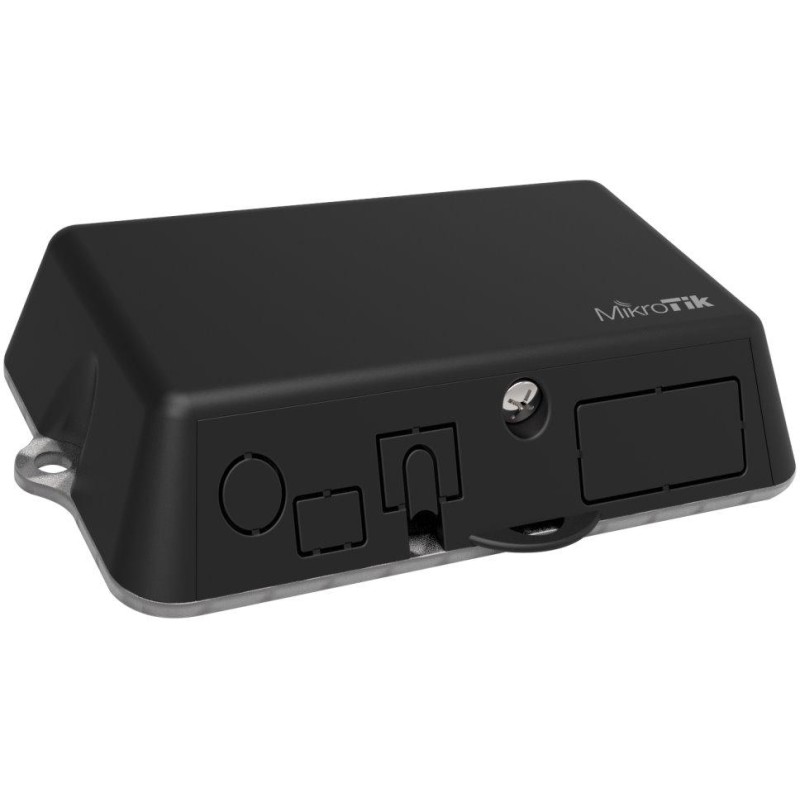

MikroTik LtAP mini LTE kit (2024), Wi-Fi 2.4 GHz b/g/n, 2/3/4G (LTE) modem, 3.5 dBi, 2x SIM slot, GPS, LAN, L4

MikroTik LtAP mini LTE kit (2024) Small, affordable weatherproof access point with built-in LTE modem and GPS. Expand your vehicle with network connectivity and monitoring. LtAP mini LTE kit (2024) is a miniature 2.4 GHz AP with integrated LTE modem, GPS and 2 SIM card slots. It supports PoE power supply via 802.3af/at or can be powered via microUSB port or DC jack. Ideal for coverage of connections in vehicles (buses, trains, cars, etc.). In the RB912R-2nD-LTm&EC200A-EU, the QCA9531 processor at a frequency of 650 MHz takes care of the performance. The integrated Wi-Fi card works with 802.11b/g/n standards and supports 2×2 MIMO (DL). The unit includes built-in GPS, but for its operation it is necessary to connect an external antenna. The device includes an integrated modem that supports 2G, 3G and 4G (LTE) networks. The RouterBoard includes MikroTik's RouterOS operating system with L4 license. The new LTE version offers a better price and support for the most popular LTE bands, including the B28 band! It is connected to two internal antennas with u.FL connectors, which you can disconnect and add your own external LTE antenna for even better coverage. The LtAP Mini LTE kit is a compact and durable wireless access point designed to keep your vehicle connected wherever you go. Whether you are driving in the countryside or moving through busy city streets, this small device will ensure that you are always online and ready to send location data. Supported bands: LTE (FDD): 20 (800MHz) / 8 (900 MHz) / 3 (1800 MHz) / 1 (2100 MHz) / 7 (2600 MHz) / 5 (850 MHz) / 28 (700 MHz) LTE (TDD): 40 (2300 MHz) / 38 (2600 MHz) / 41 (2500 MHz) 3G: 5 (850 MHz) / 8 (900 MHz) / 1 (2100 MHz) 2G: 8 (900 MHz) / 3 (1800 MHz) Main advantages: Integrated Wi-Fi 2.4 GHz (802.11b/g/n) Integrated LTE modem (EC200A-EU) incl. 3.5 dBi MiniPCIe antennas for LTE 2 SIM card slots Integrated GPS (for operation, an external MikroTik ACGPSA antenna must be connected) Serial port (RS-232) - console access for debugging Ideal device for tracking moving vehicles such as cars, buses or trains IP54 protection Information about the MikroTik RouterOS system If you are starting with MikroTik RouterOS or if you need advice on more complex settings, you can use our support. You can learn how to set up and manage the RouterBoard at our trainings. Setup tips and frequently asked questions can be found in the Technical Support section. All RouterBoards have the same MikroTik RouterOS system. All devices with MikroTik RouterOS fully support IPv6, have a firewall, Queues, NAT and with an L4 license support the CAPsMAN server. MikroTik can be set up via the web interface, via a mobile application, or with the winbox program, which can be downloaded from mikrotik.com. MikroTik has a "Quick Set" option, i.e. a quick setup option. There are several preset profiles to choose from. The products have been tested in accordance with railway standards EN 50121, EN 50155, EN 45545 and Class OT3 (indoor). Railway certification is required for use in trains in Europe. BASIC SPECIFICATIONS Mobile connection: LTE category 4 (150/50 Mbps) Wi-Fi standard: 802.11b/g/n Frequency band: 2.4 GHz Antenna: Wi-Fi: 1.5 dBi, LTE: 3.5 dBi Ports: 1× RJ-45 10/100 Ethernet, 1× RS-232, 1× microUSB power port, 1× DC power port, 2× SIM slot PoE support: yes, passive and active PoE/PoE+ (802.3af/at) Dimensions: 139 × 77 × 28.5 mm Useful links and videos: Declaration of conformity + user manual Device setup via Quick Set quick guide Mobile phone control application Device reset, reset button function MikroTik RouterOS system recovery via Netinstall utility Address translation (NAT) setup Load Balancing setup (split(interoperability between multiple internet connections) Failover settings (switching the link to the backup in case of an outage) Multiple uplinks using PCC & Load balancing Static NAT & RouterOS MikroTips: Netinstall
