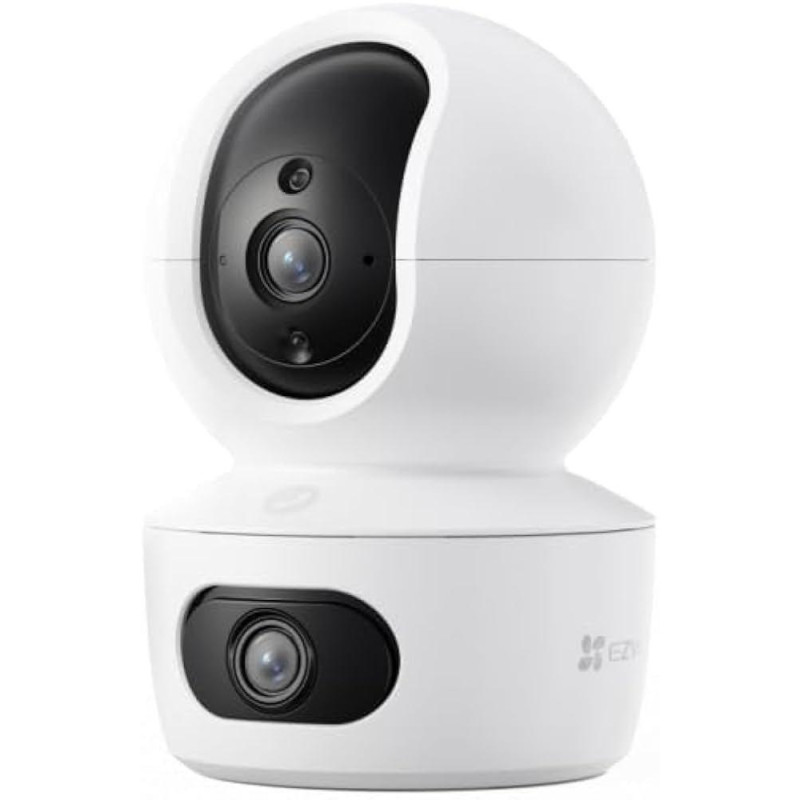

EZVIZ TY7 Dual
The IP dual pan and tilt camera brings live monitoring to your home in crystal clear 2K+ quality. It uses a fixed and pan lens at the same time, which provides a much more detailed and smarter way of surveillance. H.265/H.264 compression reduces data transfer and storage requirements. For recording clear video even in complete darkness, it has a night mode with IR illumination up to 10 m away and also white LED illumination for color footage at night . Connecting the camera using an application on a mobile device will allow convenient remote access, taking recordings or photos, or notifications in the event of motion detection . The recorded recordings can be stored on a microSD card with a capacity of up to 512 GB, or sent to cloud storage (based on a subscription). In addition, you can conveniently rotate the camera up to 355° horizontally and up to 65° vertically directly in the application. There is also an alarm for unusual sounds , which will send you a notification, for example, when a child cries. Thanks to the built-in speaker and microphone, the camera can be used for two-way communication. Other useful features include human figure recognition and tracking (Auto-Tracking), voice assistant support, or a touch button to start two-way communication . The connection can be easily made both wired via the RJ-45 connector and wirelessly via Wi-Fi .
The package includes a power adapter, power cable, set of screws, drilling template and mounting plate.
BASIC SPECIFICATIONS
Display:
Sensor resolution: 2× 4.0 Mpx
Sensor chip: 1/3" progressive CMOS
Maximum resolution: 2560 × 1440 px
Fixed lens
IR illumination: no
Lens: f = 2.8 mm, angle of view 92° horizontally, 50° vertically, 108° diagonally
Rotation: no
Tilt: 10°
Rotating lens
IR illumination: yes, up to 10 m
LED light: yes
Lens: f = 6 mm, angle of view 51° horizontally, 28° vertically, 60° diagonally
Rotation: 355°
Tilt: 65°
Interface:
Ports: 1× RJ-45, 1× USB-C (for power only)
Wi-Fi: Yes, IEEE 802.11a/b/g/n/ac/ax (2.4GHz, 5GHz)
Video compression: H.264, H.265
Memory card slot: microSD (max. 512 GB)
Audio: built-in speaker and microphone
Mechanical properties and environment:
Power supply: DC 5 V/ 2 A, consumption up to 8 W (power supply included)
Working temperature: -10 to +45 °C, humidity up to 95%
Dimensions: 131.5 × 88 × 88 mm
Weight: 270g
