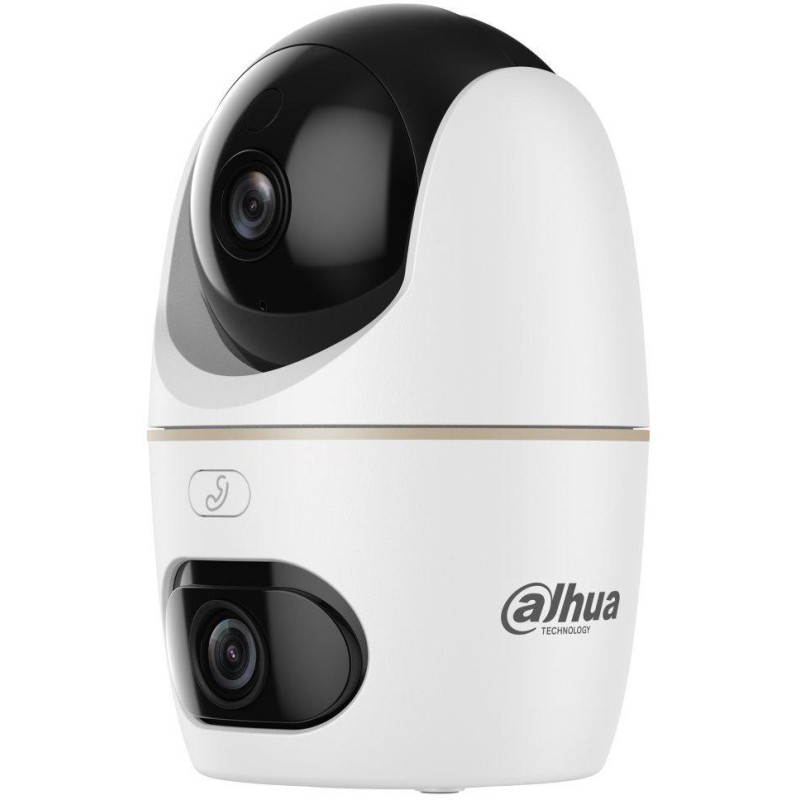

Dahua IPC-H3DP-3F-0360B
Indoor dual IP network camera of the Cube type with Wi-Fi , two 3Mpx sensors, resolution 2× 2304 × 1296 px, H.265 video compression, microphone and speaker.
IR and white LED illumination up to 30 m, 2× lens f = 3.6 mm, 79° horizontal viewing angle , ICR, DWDR , 1× LAN 10/100 Mbps, microSD card slot (max 256 GB), DC 5 V power supply.
The device comes with FREE SmartPSS Lite software. It is used for convenient management of IP (NVR/XVR/IP cameras) devices. The application allows automatic device search, live channel preview, recording of selected channels according to specified criteria and of course playback of recordings. Another application is DSS Express , which is also free. It offers more functions and client-server architecture. First, you install the server part and then the client application. The client can be installed on the same PC as the server, but also on another PC in the same network. DSS Express allows up to 10 connected clients for free. The more advanced DSS Pro is already licensed and offers many more analytical functions.
For mobile access, use the DMSS application; download and install from the application system databases (Google/Apple).
Most Dahua IP cameras are supported in Synology ( list here ) and Qnap ( list here ) NAS devices.
BASIC SPECIFICATIONS:
Features:
- Rotating and fixed lens, sensor resolution 3 + 3 Mpx
- H.265 video compression
- Mobile application in Czech
- Slot for installing a microSD card up to 256 GB capacity
- IR illumination with a range of up to 30 meters (fixed lens)
- IR + white LED illumination with a range of up to 30 meters (rotating lens)
- Two-way audio
- Privacy mode
- AI human figure detection, animal detection
- Alarm notifications + active deterrence (siren + LED lighting)
- Abnormal sound detection
- Auto tracking
- Instant call button
- Wireless connection Wi-Fi 6 (802.11a/b/g/n/ac/ax)
- Bluetooth pairing
- 0° to 349° rotation, -5° to 90° tilt
Display:
Fixed lens
Sensor resolution: 3 Mpx
Sensor chip: 1/3.2" CMOS
Maximum resolution: 2304 × 1296 px
Frame rate: 15 fps
IR illumination: yes, up to 30 m
Lens: f = 3.6 mm, fixed, angle of view 79° horizontally, 43° vertically, 94° diagonally
ICR filter: yes
Image dynamics: DWDR
Rotating lens
Sensor resolution: 3 Mpx
Sensor chip: 1/3.2" CMOS
Maximum resolution: 2304 × 1296 px
Frame rate: 15 fps
IR illumination: yes, up to 30 m
LED light: yes, up to 30 m
Lens: f = 3.6 mm, fixed, angle of view 79° horizontally, 43° vertically, 94° diagonally
ICR filter: yes
Image dynamics: DWDR
Rotation: 0–349°
Tilt: -5–90°
Interfaces and protocols:
Interface: 1× Fast Ethernet, 10/100 Base-T, RJ-45, USB-C (power)
Wi-Fi: Yes, IEEE 802.1a/b/g/n/ac/ax (2.4GHz, 5GHz)
Video compression: H.265
ONVIF support: no
Memory card slot: microSD (max. 256 GB)
I/O interface: no
Audio: yes, two-way communication (microphone + speaker)
Mechanical properties and environment:
Power supply: DC 5 V, power consumption max. 5.2 W, power adapter included
Working temperature: -10 to +45 °C, humidity up to 95%
Dimensions: 125.7 x 80.9 x 80.9 mm
Weight: 233g
