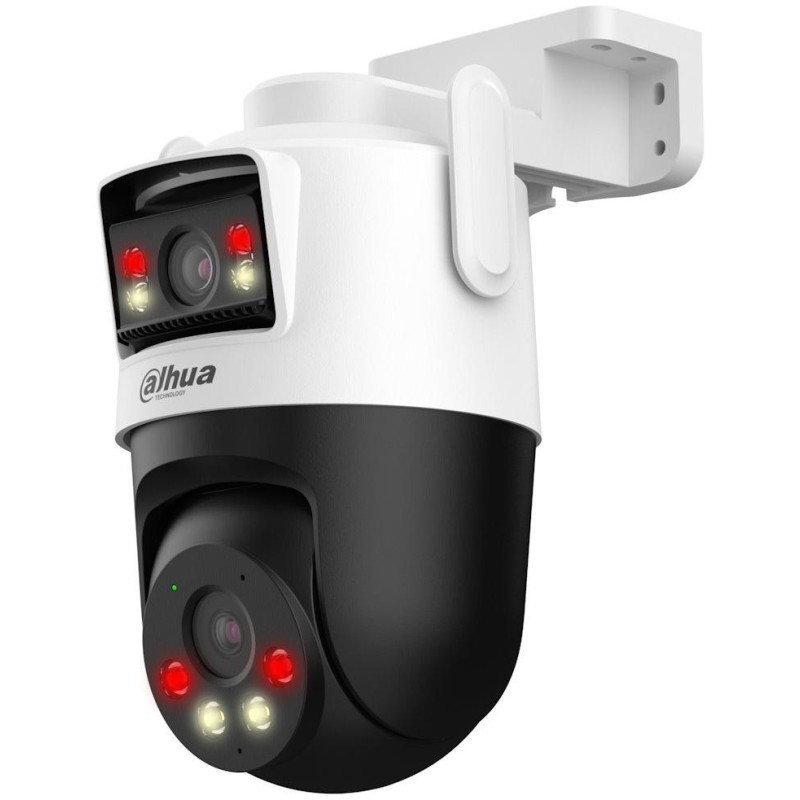

Dahua IPC-P5DP-5F-PV-0280B/0600B
The Wi-Fi PTZ IP dual camera delivers live monitoring in 5+5 Mpx quality, offering a view of a larger area and effectively reducing blind spots. H.265 compression reduces data transfer and storage requirements. For recording clear video even in complete darkness, the camera has a night mode with IR illumination up to 50 m and white LED illumination up to 40 m . The practical motion detection technology together with the built-in siren will reliably protect your home and deter unwanted visitors. Thanks to the waterproof housing according to IP66 , the camera offers both indoor and outdoor use.
The device comes with FREE SmartPSS Lite software. It is used for convenient management of IP (NVR/XVR/IP cameras) devices. The application allows automatic device search, live channel preview, recording of selected channels according to specified criteria and of course playback of recordings. Another application is DSS Express , which is also free. It offers more functions and client-server architecture. First, you install the server part and then the client application. The client can be installed on the same PC as the server, but also on another PC in the same network. DSS Express allows up to 10 connected clients for free. The more advanced DSS Pro is already licensed and offers many more analytical functions.
For mobile access, use the DMSS application; download and install from the application system databases (Google/Apple).
Most Dahua IP cameras are supported in Synology ( list here ) and Qnap ( list here ) NAS devices.
BASIC SPECIFICATIONS:
Features:
- Mobile application in Czech
- AI detection of people and vehicles
- Alarm notifications
- Active deterrence (110 dB siren + LED lighting)
- Smart Tracking – Automatically tracks moving objects
- H.265 codec
- Micro SD card slot (max. 256 GB)
- Built-in microphone, speaker
- Waterproof housing – IP66
Display:
Fixed lens
Sensor resolution: 5.0 Mpx
Sensor chip: 1/3" CMOS
Maximum resolution: 2880 × 1620 px
Frame rate: 15 fps
IR illumination: yes, up to 30 m
LED light: yes, up to 20 m
Lens: f = 2.8 mm, angle of view 95° horizontally, 53° vertically, 110° diagonally
Pan and tilt lens
Sensor resolution: 5.0 Mpx
Sensor chip: 1/3" CMOS
Maximum resolution: 2880 × 1620 px
Frame rate: 15 fps
IR illumination: yes, up to 50 m
LED light: yes, up to 40 m
Lens: f = 6 mm, angle of view 49° horizontally, 26° vertically, 57° diagonally
Rotation: 0–352°
Tilt: 0–90°
Interfaces and protocols:
Interface: 1× Fast Ethernet, 10/100 Base-T, RJ-45
Wi-Fi: Yes, IEEE 802.11b/g/n/ax (2.4GHz) />
Video compression: H.265
ONVIF support: no
Streaming: Dual stream
Memory card slot: microSD (max. 256 GB)
I/O interface: no
Audio: yes, two-way communication (microphone + speaker)
Mechanical properties and environment:
Power supply: DC 12 V, power adapter included
Protection: waterproof, protection level IP66
Working temperature: -20 to +50 °C, humidity up to 95%
Dimensions: 210 × 159.4 × 119.1 mm
Weight: 585g
